Voltage 220V-50Hz Ball Milling Machine With Achieving Output Less Than 0.1μM
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton or plywood & Foam |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Sets per Month |
|
Detail Information |
|||
| Working Model: | 2 Or 4 Pots One Time | Package: | Plywood Case With Foam |
|---|---|---|---|
| Rotate Speed: | 70-670rpm | Max Production Capacity: | 1.32L |
| Voltage: | 220V-50Hz,110V-60Hz | Key Word: | Lab Grinding Ball Mill |
| Power: | 0.75KW | Product Name: | Laboratory Planetary Ball Mill |
| High Light: | 220V Planetary Ball Milling Machine,50Hz Ball Milling Machine,Laboratory Planetary Milling Machine |
||
Product Description
Voltage 220V-50Hz Ball Milling Machine with Achieving Output Less Than 0.1μm
Product Description:

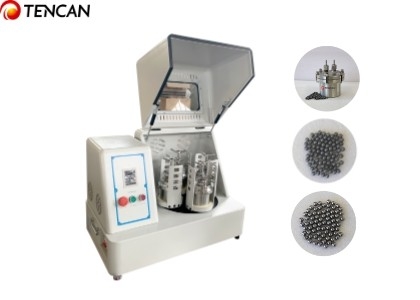

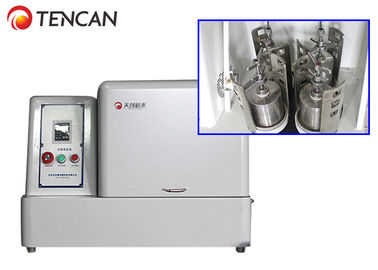

Laboratory planetary ball mill machine is designed with four working positions, which is able to install two or four mill jars on one turntable.
When it is put to work, the turntable will rotate and the jar axis will make high speed planetary movements. The balls and materials inside the jars will be impacted strongly due to the high speed movement and eventually be ground into fine powder.
It supports both dry and wet grinding methods, which enables you to grind materials into powder with the smallest granularity of 0.1μm or nano scale powder.
Features:
- Product Name: Laboratory Planetary Ball Mill
- Rotate Speed: 70-670rpm
- Package: Plywood Case With Foam
- Working Model: 2 Or 4 Pots One Time
- Ball Mill Grinder: Yes
- Planetary Ball Milling Device: Yes
- Milling Ball Mill: Yes
- Warranty: 1 Year
Technical Parameters:
| Parameter | Description |
|---|---|
| Product Name | Laboratory Planetary Ball Mill |
| Feeding Size | Less Than 10mm |
| Output | Less Than 0.1μm |
| Production Ability | 0.1-1.32kg/h |
| Max Production Capacity | 1.32L |
| Rotate Speed | 70-670rpm |
| Voltage | 220V-50Hz,110V-60Hz |
| Package | Plywood Case With Foam |
| Key Word | Lab Grinding Ball Mill |
| Warranty | 1 Year |
Applications:
The TENCAN XQM-4 Planetary Ball Mill is a kind of grinding machine, which is designed for grinding, mixing and homogenizing the materials in laboratory or tiny quantity production. It is an ideal choice for grinding and homogenizing materials in research fields of geology, mineralogy, metallurgy, electronics, building materials, ceramics, chemistry, light industry, medicine, environment protection, etc. The Ball Mill Grinder is featured with small volume, high efficiency, low noise and quick clamp.
The Ball Milling Machine is made of premium quality materials and certified with ISO CE. It is available in minimum order quantity of 1 set, with price negotiable. The packaging is done with carton or plywood and foam. The delivery time is 3-7 days and the payment terms are T/T. The Planetary Ball Mill has a production ability of 0.1-1.32kg/h with a rotate speed of 70-670rpm, feeding size of less than 10mm and a power of 0.75KW. It is available in voltage of 220V-50Hz, 110V-60Hz. The supply ability is 500 sets per month.
Support and Services:
We provide technical support and services for planetary ball mills to ensure smooth operation and optimal performance. Our qualified service technicians are available 24/7 to provide technical assistance, trouble-shooting, and repairs.
We also provide preventative maintenance services to catch problems before they occur and prolong the life of your planetary ball mill. Our team of experts are available for onsite visits and help you optimize your production processes.
Our technical support team is also available to help you with part replacement, troubleshooting, and other inquiries. We offer a wide range of replacement parts for your planetary ball mill, making it easy to find the right part for your machine.
FAQ:
- Q: What is the brand name of your Planetary Ball Mill?
- A: The brand name of our Planetary Ball Mill is TENCAN.
- Q: What is the model number of your Planetary Ball Mill?
- A: The model number of our Planetary Ball Mill is XQM-4.
- Q: Where is your Planetary Ball Mill made?
- A: Our Planetary Ball Mill is made in Hunan China.
- Q: Is your Planetary Ball Mill certified?
- A: Yes, our Planetary Ball Mill is certified with ISO CE.
- Q: What is the minimum order quantity of your Planetary Ball Mill?
- A: The minimum order quantity of our Planetary Ball Mill is 1 set.
