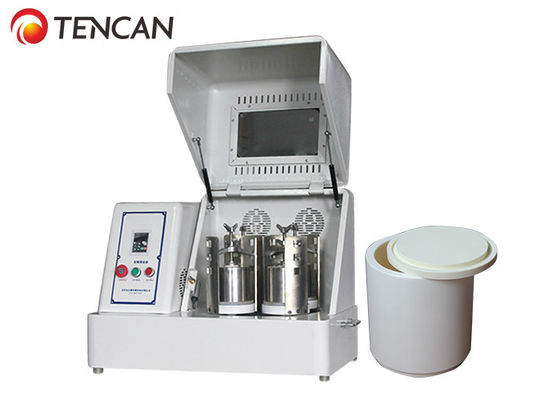

China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity

China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity

Product Details:

Place of Origin: Hunan China
Brand Name: TENCAN
Certification: ISO CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton & Foam
Delivery Time: >=7
Payment Terms: T/T
Supply Ability: 300 Set/Sets per Month metal powder making machine
Get Best Price Contact Now

Detail Information
Model Number: XQM-10 Product Name: Planetary Ball Mill
Voltage: 220V Feeding Size(mm): 1-10mm
Output(kg/h): 0.1-3.3kg/h Rotational Speed: 70-580rpm
Warranty: 1 Year Output(mesh): 400 - 12500 Mesh
Max Capacity: 3.3L Power: 1.5KW
High Light:

3.3L Planetary Ball Mill

,

10L Max Capacity Planetary Mill

,

Zirconia Jar Planetary Ball Mill

Product Description

  China Tencan 10L Max Capacity 3.3L Laboratory Planetary Ball Mill Machine





Overview:



   Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). Large planetary ball mill for production is a kind of large-sized machine designed,enlarged and manufactured on basis of principle of small ball mill,which mainly applies batch production.

China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 0China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 1

Technical Feartures:

Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Minimum 0.1 μm
Rotational Speed Ratio 1/2
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.




Working Principle:



    Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.



Features:

  • Planetary movement principle is adopted in the machine, which has high speed, largeenergy, high efficiency, small Granularity.
  •  Four powder samples from different sizes and different materials can be produced at one time.
  • The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
  • The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
  • Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
  • Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Technical Parameters:



Technical Parameter for micro-computerized touch screen ball mill
Model Volume of Jar(L) Dimension(mm) Maximum Rotating Speed(rpm) Power (KW)
XQM-1(T) 1 730*430*580 670 0.75
XQM-2(T) 2 730*430*580 670 0.75
XQM-4(T) 4 800*470*560 670 0.75
XQM-8(T) 8 880*600*640 580 1.5
XQM-12(T) 12 880*600*640 580 1.5
XQM-16(T) 16 950*600*680 510 3
XQM-20(T) 20 1200*760*750 430 4
XQM-40(T) 40 1300*870*830 390 5.5
XQM-60(T) 60 1500*950*1000 360 7.5
XQM-100(T) 100 1750*1100*1350 240 11



Accessories:

    We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.


China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 2

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.		 Vacuum mill jar



     We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 3

References About Grinding Medias & Materials
Materials of
Grinding Media		 Hardness
(Mohs)		 Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar √
Corundum Mill Jar ▲ √   ▲
Stainless Steel Mill Jar     √
Zirconia Mill Jar   ▲   √
Nylon Mill Jar ▲     √
PTFE Mill Jar √     ▲
Polyurethane Mill Jar √     ▲
Tungsten Carbide Mill Jar       ▲ √
√ means: most suitable ▲ means: suitable



Grinding Cases:

China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 4



Company Profile:

 CHANGSHA TIANCHUANG POWDER TECHNOLOGY CO., LTD.

      Changsha Tianchuang Powder Technology Company Limited, which was established in 2006, is located in Changsha City, Capital of Hunan Province, South-Centre part of People’s Republic of China. The Company is one of largest professional manufacturers in China engaging in design, manufacture, and sales of all kinds of lab ball mills. With rich experiences of hard work in the industry, all kinds of lab ball mills we designed and produced have many advantages such as impact machine model, flexible and simple operation, grinding with dry and wet materials, which can meet requirements of dispersed grinding of all laboratories and further greatly benefit enlarging experimental results to production machine. The lab ball mills are best choice for your labs grinding and research of new materials. With sustained business conception of "Customer Is Superior, Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc. We promise that we would make great efforts to provide high quality machines and best services for all customers in the coming years.



Certifications:

China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 5China Tencan 3.3L Laboratory Planetary Ball Mill Machine 10L Max Capacity 6




Product Quality Warranty:

One-year warranty period shall be provided to any client who buys our products and related accessories.

The following promises are valid within the warranty period which is calculated from time or date when the client or consumer takes delivery of machine,

opens case, inspects machine and receives with signature.

We promise to guarantee free replacement within one month, and guarantee free repair within one year.

Client may enjoy free replacement within one month if any of following occurs:

1) The machine is broken in course of transportation;

2) Motor and frequency converter are burnt out;

3) The key part or main disk of the machine is seriously in failure.

We shall promise to provide most favorable policy and best services after expiration of quality warranty period.
