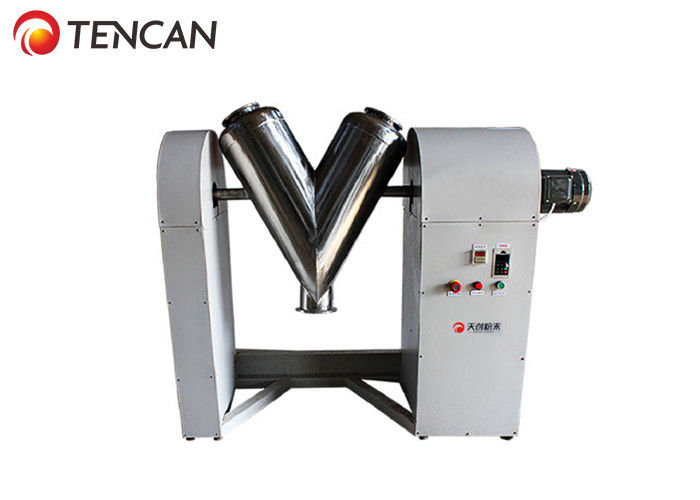

220V V Type Dry Powder Blender , Chemical Powder Mixing Machine
Product Details:
| Brand Name: | TENCAN |
| Certification: | CE |
| Model Number: | 1-500L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+ Foam |
| Delivery Time: | 20-30 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Place Of Origin: | Hunan, China | Product Name: | V Type Powder Mixing Machine |
|---|---|---|---|
| Material: | 304 Stainless Steel | Specifications: | 5-500L |
| Packing: | Plywood Case+Foam | Voltage: | 220V Or 380V |
| Type: | Mixing Machine | Certificate: | CE ISO |
| High Light: | 380V Dry Powder Blender,Metallurgy Dry Powder Blender,220V Chemical Powder Mixing Machine |
||
Product Description
China Tencan V Type Dry Powder Blender Equipment , Chemical Powder Mixing Machine
Overview
V-type powder mixing machine is suitable for pharmacy,food,chemical, metallurgy,electronics and other industries, used for mixing the dry granule materials. The machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users’ demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water.
Working Principle
V-type powder mixing machine is composed of container welded with two cylinders. Shape of cylinder is asymmetric. Because of rotary motion, granule powder is segmented and merged continuously and repeatedly, feed material is delivered from one to another, and powder particle is stacked multiplexer with slip of powder and is constantly distributed on surface of powder.
Features
1. High efficiency for mixing materials at close or same granularity and density
2. It is not easy to crush granule when mixing materials.
3. The machine keeps material particle integrity without extrusion and strong wear.
4. Internal and external of the mixing vat are polished without dead angle, to avoid cross contamination of materials.
4. Available materials of mixing vat: carbon steel, stainless steel, nylon, and etc.
5. The machine is equipped with a timing device, it can set mixing time to realize automatic stop.
Parameters
| Parameters of V Type Mixing Machine | |||||
| Model No. | Mixing Volume (L) |
Total Volume (L) |
Feed Volume Coefficient |
Power (KW) |
Rotating Speed (rpm) |
| V-5 | 2 | 5 | 0.4 | 0.25 | 50 |
| V-10 | 4 | 10 | 0.4 | 0.25 | 45 |
| V-20 | 8 | 20 | 0.4 | 0.37 | 32 |
| V-50 | 20 | 50 | 0.4 | 0.75 | 32 |
| V-100 | 40 | 100 | 0.4 | 1.5 | 30 |
| V-200 | 80 | 200 | 0.4 | 3 | 24 |
| V-300 | 120 | 300 | 0.4 | 4 | 20 |
| V-500 | 200 | 500 | 0.4 | 7.5 | 12 |
