290rpm 1.5KW Lab Powder Small Jaw Crusher Machine For Stone Rock

290rpm 1.5KW Lab Powder Small Jaw Crusher Machine For Stone Rock

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE
Model Number: PE60*100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 850-1000 per set
Packaging Details: Plywood Case
Delivery Time: 15-25 working days after getting full payment.
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Lab Jaw Crusher Model No.: PE60*100
Voltage: 380V-50Hz Power: 1.5KW
Feed Size: Less Than 50mm Output Size: 1.0-10.0mm
Capacity: 45-550kgs/hour Spindle Speed: 290 Rpm
High Light:

Rock Small Jaw Crusher

,

1.5KW Small Jaw Crusher

,

Powder Crusher Machine 290rpm

Product Description

China Tenacn 290rpm 1.5KW Lab Powder Jaw Crusher Machine For Stone / Rock,Small Crusher Machine

Overview of Lab Jaw Crusher
Lab jaw crusher is mainly used to crush a variety of ores and bulk materials with comprehensive strength of less than 320Mpa in middle granularity. PE series of lab jaw crusher has full specification, its feed size of materials ranges 125mm~1200mm, and it is the preferred primary crushing equipment. The equipment is mainly applied to crush materials in rough, medium and fine scale such as ore limestone, calcium carbide, carbide slag, shale, basalt , river gravel, blue stone, etc. The machine has a significant performance in cement plants, gravel plants, stones factory, thermal power plants desulfurization, calcium carbide plant, and it is widely used in mining metallurgy, chemical industry, building materials, water conservancy, transportation and other industries.

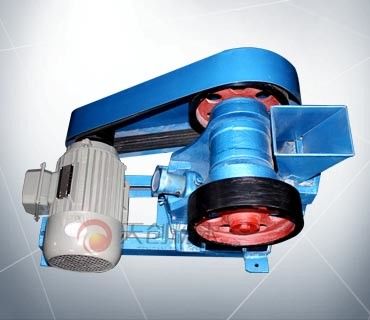

290rpm 1.5KW Lab Powder Small Jaw Crusher Machine For Stone Rock 0

Working Principle of Lab Jaw Crusher

The main structure of lab jaw crusher: frame, eccentric shaft, big pulley, flywheel, side guard ,elbow board, elbow board seat, adjusting screw rod, the return spring, fixed board and adjusted jaw board, and the elbow board can play a role as Protector. The broke drive model of this series jaw crusher is curved extrusion. Motor-driven belt and pulley, through the eccentric shaft to let the jaw up and down, when the movable jaw rises bracket, and the angle Motor-driven belt and pulley, through the eccentric shaft to move jaw up and down movement, when the movable jaw rises, the angle between elbow board and movable jaw plate becomes larger, thus promoting the movable jaw plate close to the fixed jaw plate, while the material can be crushed by squeezed, rubbing, grinding. When the movable jaw fall down, the angle between elbow board and movable jaw becomes smaller, the movable board will leave the fixed jaw board by the action of rod and spring, at the same time crushed material is discharged through crushing chamber.


Applications of Lab Jaw Crusher

Jaw Crusher is mainly used for crushing large bulk mineral materials into small pieces so as to finely grind by ball mill. It is widely used to crush all kinds of ores and bulk material. The equipment mainly applied to crush materials in rough, medium and fine scale such as ore limestone, calcium carbides, carbide slag, shale, basalt, river gravel, blue stone etc.

Features of Lab Jaw Crusher
1. The crusher ratio can reach to about 13 in uniform size;
2. Adopt gasketed nesting population adjustment device,the adjusting range is big and reliable operation;
3. High efficiency,low energy consumption,compared with common small jaw crusher,it’s processing capacity 20%-35% higher than that of the same specification,and can reduce the energy consumption of 15%-20%;
4. Deep crushing chamber has no dead zone and can increase the feed ability and production capacity;
5. The use of small wear hyperboloid jaw plate service life can be prolonged by more than 3-4 times in the same process conditions,especially to the high abrasive material is more obvious;
6. The lubrication system is safe and reliable, convenient replacement parts, maintenance workload is small.

Technical Parameters of Lab Jaw Crusher


Parameters of Lab Jaw Crusher
Model No.Capacity
(Kgs/h)
Inlet Size
(mm)
Feed Size
(mm)
Output Size
(mm)
Spindle Speed
(rpm)
Power SupplyNet Weight
(KGS)
XPC100*60230-400100*60≤506.0-10.0650380V/1.5KW350
XPC100*100200-1800100*100≤803.0-25.0600380V/2.4KW300
XPC125*100200-1800125*100≤805.0-25.0500380V/3.0KW300
XPC100*150200-1800100*150≤906.0-38.0500380V/2.2KW360
XPC150*125400-3000150*125≤1006.0-38.0500380V/3.0KW417
PEF150*250700-1500150*250≤1206.0-40.0350380V/5.5KW500
PEF60*10045-55060*100≤501.0-10.0290380V/1.5KW110
PEF100*10065-850100*100≤801.0-25.0600380V/2.2KW320
PEF100*125300-2000100*125≤1002.0-35.0375380V/3.0KW360
PEF150*125300-3000150*125≤1204.0-45.0375380V/3.0KW380
