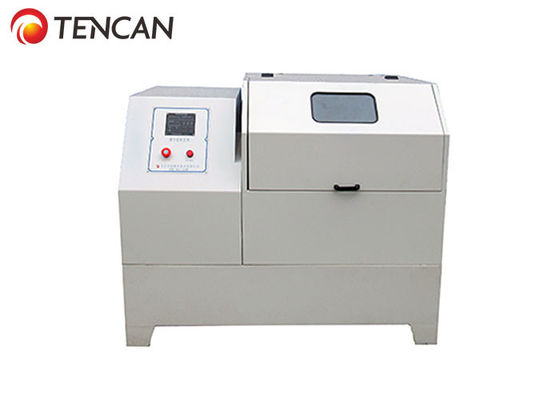

60L Planetary Ball Mill Machine XQM -60 3 Phase 380V 7.5KW Adjusting Speed

60L Planetary Ball Mill Machine XQM -60 3 Phase 380V 7.5KW Adjusting Speed

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE, ISO 9001
Model Number: XQM-60

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case+Foam
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Production Type Planetary Ball Mill Model No.: XQM-60
Total Volume: 60L Voltage: Three Phase 380V, 50Hz/ 60Hz
Motor Power: 7.5kW After-sales Service Provided: Video Technical Support,Online Support,No Overseas Service Provided,Overseas Third-party Support Available
Max Volume Of Each Mill Jar: 15L Machine Size: 1600*990*1250mm
Machine Weight: 900 Kg Without Mill Jars Work Mode: 2 Or 4 Jars Working Together
Mill Mode: Dry / Wet Milling Speed Frequency: Adjusting
Rotational Speed: 40-260 R/min, Adjusting Revolution: Rotation: 1: 1.5
Material Capacity: Material + Mill Balls < 2/3 Volume Input Particle Size: < 10mm For Soft Material, < 3mm For Hard Material
Output Particle Size: Minimum < 0.1μm Feed Material: Soft, Hard, Brittle, Fibrous, Cellulose, Herb, Glass, Soil, Ore, Pharmacy, Chemical, Fluorescent, Pigment Etc.
Field Of Application: Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection Etc. Type Of Grinding Jars: Stainless Steel, Zirconia, Alumina, Nylon, PU, Tungsten, PTFE Etc., Vacuum Jars Are Available As Well.
Type Of Grinding Media: Stainless Steel Balls, Zirconia Balls, Alumina Balls, PU Balls, Steel Carbon Balls, Tungsten Balls, Etc. Interval Operation: With Direction Reversal
Max. Continuous Operating Time (full-load): 72 Hours
High Light:

planetary mill


planetary milling machine

Product Description


TENCAN 60L Micron Powder Making Planetary Ball Mill Machine XQM-60 three phase 380V 7.5KW

Planetary ball mill technology
The grindng jars are arranged.eccentrically on the sun wheel of the planetary ball mill. the direction of movement of the sun wheel is opposite to that of the grinding jars in the ratio 1:-2 (or 1:-1.5).
The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called Coriolis forces.
The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies.
The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill.
The TENCAN vertical planetary ball mill XQM-80 operates with a speed ratio of centrifugal mode. The centrifugal forces produced by the rotation force the sample and the grinding balls against the inner wall of the grinding jar, where size reduction takes place primarily by pressure and friction.

The working principle of the planetary ball mills is based on the relative rotational movement between the grinding jar and the sun wheel. In addition to the sun wheel diameter and speed of rotation this speed ratio is decisive for the energy input and therefore for the results of the size reduction process. The higher the speed ratio, the more energy is generated.
Vertical Production Planetary Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.
Working Principle
Vertical Production Planetary Ball Mill often has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.
Vertical Industrial Planetary Ball Mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.
60L Planetary Ball Mill Machine XQM -60 3 Phase 380V 7.5KW Adjusting Speed 0
1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Technical Features

Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc

Technical Parameters

Main Parameters of Vertical Industrial Planetary Mill Ball (SquareType)
Model Power(kW) Voltage Dimension(mm) Revolution Speed
Rotation Speed
XQM-20 4 380V-50Hz 1200*750*920 25-215 50-430
XQM-40 5.5 380V-50Hz 1400*850*1160 20-195 40-390
XQM-60 7.5 380V-50Hz 1600*990*1250 27-174 40-260
XQM-80 11 380V-50Hz 1750*1140*1330 27-160 40-240
XQM-100 11 380V-50Hz 1750*1140*1330 27-160 40-240

Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
60L Planetary Ball Mill Machine XQM -60 3 Phase 380V 7.5KW Adjusting Speed 1
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
60L Planetary Ball Mill Machine XQM -60 3 Phase 380V 7.5KW Adjusting Speed 2
