TENCAN Vertical Type Small Ball Mill Nano Powder Grinding With 50ml Mill Jars

TENCAN Vertical Type Small Ball Mill Nano Powder Grinding With 50ml Mill Jars

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-0.2A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Mini Lab Planetary Ball Mill Model No.: XQM-0.2S
Total Volume: 0.2L Max Capacity: 0.07L
Rotate Speed: 90-1120 Rpm Speed Control: Frequency Control
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.09KW
Highlight:

lab ball mill

,

laboratory ball mill machine

Product Description

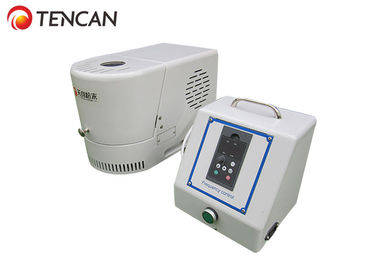

TENCAN mini Planetary Ball Mill Vertical Type Nano Powder Grinding with 50ml mill jars​



Overview



Planetary ball mills are smaller than common ball mills and mainly used in laboratories for grinding sample material down to very small sizes. A planetary ball mill consists of at least one grinding jar which is arranged eccentrically on a so-called sun wheel. The direction of movement of the sun wheel is opposite to that of the grinding jars (ratio: 1:-2 or 1:-1.5 ). The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called coriolis forces. The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies. The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill.



Working Principle

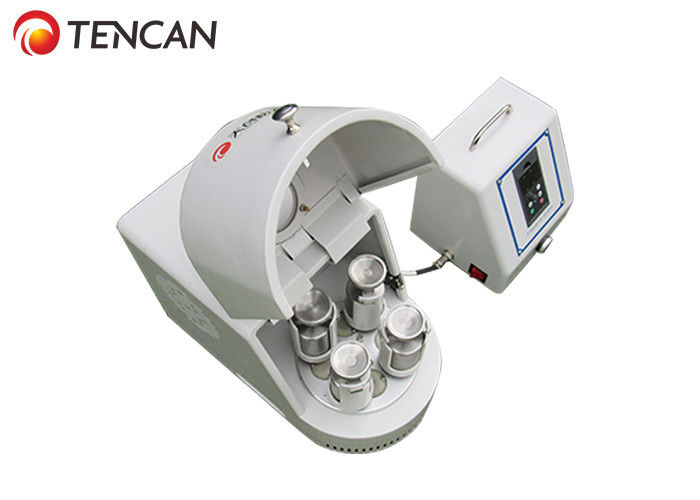

TENCAN Mini Laboratory ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications



Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography



Features of Tencan 0.2L 110V or 220v Mini Laboratory Ball Mill



1) Extreme speeds for particularly high final fineness down to the submicron range.
2) Different speed ratios available.
3) Grinding jar volume from 12ml to 100ml, in 6 different materials.
4) Suitable for long-term trials and continous use.
5) Automatic direction reversal helps to avoid agglomerations.



Technical Parameters



Main Parameters of 0.2L 110V or 220v Mini Laboratory Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run Time of Forward & Reversal Rotation
(min)
XQM-0.2A 0.09 220V-50Hz 250*425*280 45-435 90-1160 1-9999 1-9999





Accessories of 0.2L 110 - 220v Mini Planetary Ball Mill



Besides the planetary ball mill machine, we also provide all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina ceramic mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jars etc.



TENCAN Vertical Type Small Ball Mill Nano Powder Grinding With 50ml Mill Jars 0



We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.



TENCAN Vertical Type Small Ball Mill Nano Powder Grinding With 50ml Mill Jars 1
