Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding

Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-8

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Carton or Plywood Case
Delivery Time: 3-7 working days after receive full payment
Payment Terms: T/T, Western Union, L/C, MoneyGram,
Supply Ability: 200 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Lab Square Planetary Ball Mill Model No.: XQM-8
Voltage: 220V-50Hz Or 110V-60Hz Power: 1.5kW
Rotate Speed: 70-580 RPM Speed Control: Frequency Control
Total Volume: 8L Max Capacity: 2.7L
High Light:

planetary mill

,

planetary milling machine

Product Description

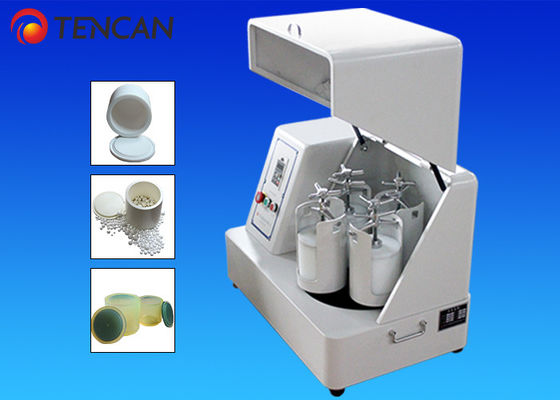

TENCAN 8L Planetary Ball Mill for Alumina Oxide Powder​ Grinding​ sample grinding Machine With 4 X 2000ml Mill Jars



Overview



Square type Planetary Ball Mill is a necessary machine used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle



Square type Planetary Ball Mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications



Backgrounds: Ground by Tencan planetary ball mill, matched with alumina jars and zirconia balls. Grinding time: 4 hours. 87% of output powder is under 5μm (customer’s request)

Applied Machine: Tencan Vertical Planetary Ball Mill Model No.XQM-2

1. Description
1) Applied Field: Ceramic Industry.
2) Materials: Alumina Oxide Powder
3) Feed Size: 100μm
4) Quantity of Feed: 100g
5) Property of Material: Hard and Crispy
6) Customer’s Request: Under 5μm.
7) Subsequent Analysis: Particle Size Test

Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 0Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 1
Before Grinding After Grinding

2,Solutions
1) Equipment Selection: Vertical Planetary Ball Mill Model XQM-2.
2) Accessories: 500ml Alumina Jars and 5-10mm Zirconia Balls.
3) Running Parameter Setting: Rotation Speed: 500rpm, Positive and Negative Reciprocal Operation every 30-minute running.
4) Grinding Time: 4 Hours
5) Grinding Result: 87%<5μm
6) Conclusion: Planetary Ball Mill Model XQM-1 can be used to grind alumina oxide powder.

Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 2Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 3Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 4





Features



1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.





Technical Features



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size < 10mm for soft material; < 3mm for hard material
Output Granularity Minimum 0.1μm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 hours
Materials of Jar stainless steel,agate,nylon,corundum,zirconia, PU, PTFE etc



Technical Parameters



Main Parameters of 8L 110 / 220v Planetary Ball Mill - Square design
Model Power(kW) Voltage Dimension(mm) Revolution Speed
(rpm)
Rotation
Speed
(rpm)
XQM-8 1.5 220V-50Hz 900*600*640 35-290 70-580
XQM-10 1.5 220V-50Hz 900*600*640 35-290 70-580
XQM-12 1.5 220V-50Hz 900*600*640 35-290 70-580





Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.



Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 5

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



References for Matchable Jar Sizes with Squre type Planetary Ball Mill
Model No. Total Volume
(L)
Matchable Jar
Sizes
Matchable Jars
Quantity
Matchable Vacuum
Jar Sizes
XQM-1 1.0L 50ml, 100ml, 250ml 2pcs or 4pcs 50ml, 100ml
XQM-2 2.0L 250ml, 500ml 2pcs or 4pcs 50ml, 100ml, 250ml
XQM-4 4.0L 250ml, 500ml,1000ml 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml
XQM-6 6.0L 500ml, 1000ml, 1500ml 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml, 1L
XQM-8 8.0L 1L, 2L 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml, 1L, 1.5L
XQM-10 10.0L 1L, 2L, 2.5L 2pcs or 4pcs 1L, 1.5L, 2L
XQM-12 12.0L 1L, 2L, 2.5L, 3L 2pcs or 4pcs 1L, 1.5L, 2L
XQM-16 16.0L 2L, 3L, 4L 2pcs or 4pcs 1L, 1.5L, 2L, 3L











Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



Easy Operation Mini Ball Mill For Alumina Oxide Powder Sample Grinding 6



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
