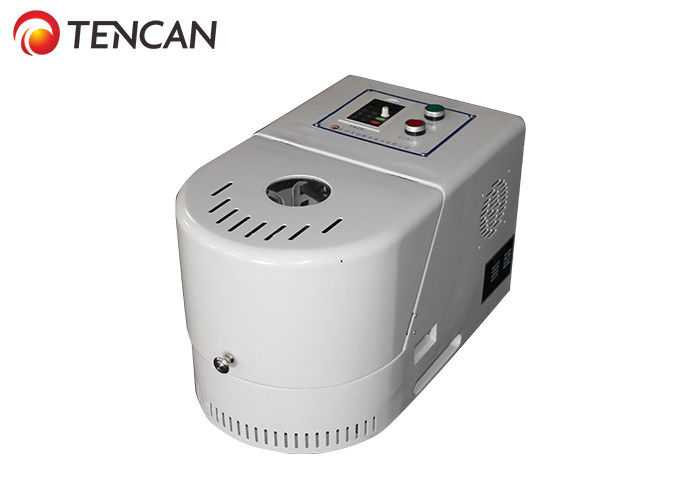

• 0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill
  • 0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill
  • 0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill
  • 0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill
0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill

0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-0.4A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 220 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Mini Size Planetary Ball Mill Model No.: XQM-0.4A
Total Volume: 400ml Max Capacity: 132KW
Rotate Speed: 90-870 Rpm Speed Control: Frequency Control
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.25KW
High Light:

planetary mill

,

planetary milling machine

Product Description

0.4L Mini Volume Planetary Ball Mill Machine Bench top With High Efficiency & Low Noise



Overview



Vertical mini planetary ball mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle

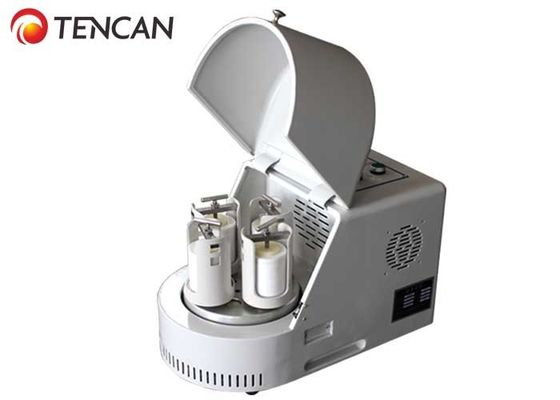

Vertical mini planetary ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications



Vertical mini planetary ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Features



1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc





Technical Parameters



Main Parameters of 0.4L 110 - 220v Mini Planetary Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
RotationSpeed
(rpm)
XQM-0.4A 0.25 220V-50Hz 530*300*340 45-435 90-870



Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.



0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill 0



Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



0.4L Mini Vertical Planetary Milling Machine , Low Noise Benchtop Ball Mill 1





PLANETARY BALL MILL, MINI MODEL, BENCH TOP STYLE.
