Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

China Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding supplier
Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding supplier Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding supplier Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding supplier Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding supplier

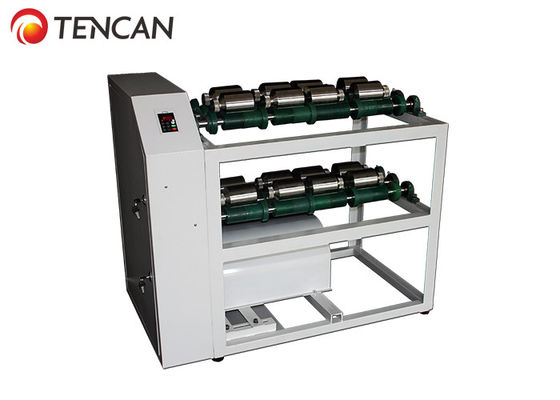

Large Image :  Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: GQM-4-5

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days after receiving full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Laboratory Rolling Jar Mill Model No.: GQM-4-5
Total Volume: 20L Max Capacity: 6.6L
Rotate Speed: 50-410 Rpm Speed Control: Frequency Controller
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.75KW

220v Multiple Work Positions Rolling Jar Laboratory Ball Mill Intermittent & Continuous Grinding



Overview



Rolling Jar Laboratory Ball Mill is a kind of powder milling equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling ball mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.



Working Principle



When the machine starts to work, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.



Applications



Rolling Jar Laboratory Ball Mill is mainly applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.



Features



1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.



Technical Parameters



Technical Parameters of Rolling Jar Laboratory Ball Mill
Category Dimensions/WT
(mm)
Model No. Motor
Power(kw)
Voltage Rotate Speed
(rpm)
2 work station 950*480*685mm/59kgs GQM-2-5 0.37 220V-50Hz/60Hz 50-410
1130*550*690mm/80kgs GQM-2-15 1.1 220V-50Hz/60Hz 40-365
13506550*690mm/92kgs GQM-2-20 1.5 220V-50Hz/60Hz 40-365
4 work station 950*660*690mm/70kgs GQM-4-5
Single Layer
0.75 220V-50Hz/60Hz 50-410
950*480*870mm/92kgs GQM-4-5
Double Layers
0.75 220V-50Hz/60Hz 50-410
1130*800*690mm/95kgs GQM-4-15 1.5 220V-50Hz/60Hz 40-365
1350*820*690mm/122kgs GQM-4-20 2.2 380V-50Hz/60Hz 40-340
8 work station 950*660*960mm/106kgs GQM-8-5 1.5 220V-50Hz/60Hz 50-410
1130*800*690mm/152kgs GQM-8-15 2.2 380V-50Hz/60Hz 40-365



Accessories of Roll Mill Jars & Balls



Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.



Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding





Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding
