Super Fine Powder Grinding Laboratory Ball Mill Machine Small Size High Efficiency

China Super Fine Powder Grinding Laboratory Ball Mill Machine Small Size High Efficiency supplier

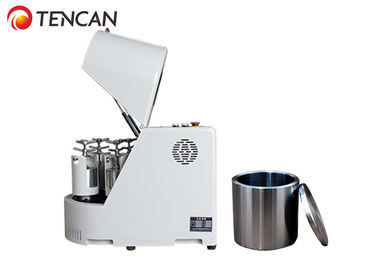

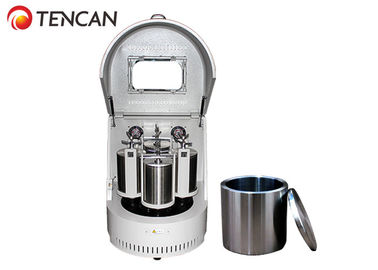

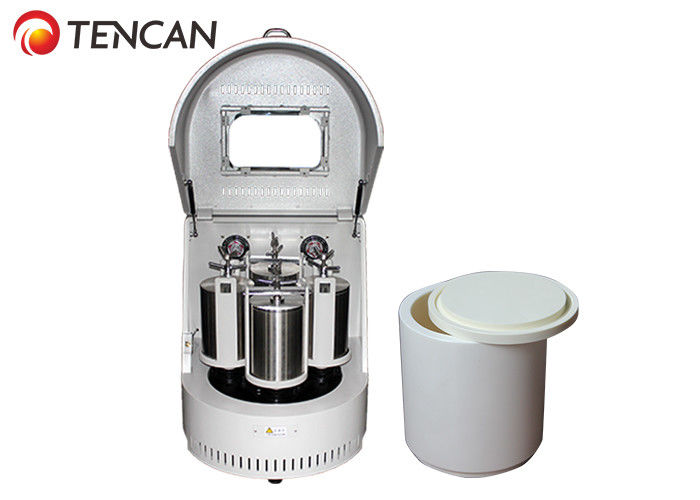

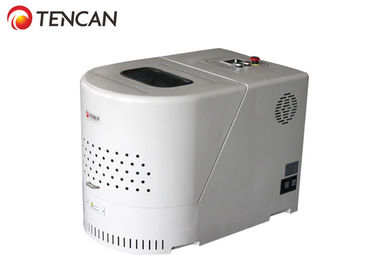

Large Image :  Super Fine Powder Grinding Laboratory Ball Mill Machine Small Size High Efficiency

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-2A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Mini Lab Planetary Ball Mill Model No.: XQM-2A
Total Volume: 2L Max Capacity: 0.66L
Rotate Speed: 70-670 Rpm Speed Control: Frequency Control
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.75KW



Planetary ball mill laboratory/super fine powder grinding machine/small ball mill



Overview



1) Suitable for various particle materials to finer powder though the grinding, crushing and dispersing actions of the machine operation for example : ceramic powders, chemicals, coatings, minerals, food, and so on.
2) Safety locking device helps a quick and secure locking the mill pot.
3) Available to be with a variety of mill balls for optional purchasing. For example : zirconium oxide balls, alumina balls, stainless steel balls, agate balls, glass balls, etc.
4) With a timer available for setting 0~99Hr and 0~59Min
5) Easy operation and clean



Working Principle of 2L 110 - 220v Mini Laboratory Ball Mill



2L 110 - 220v Mini Laboratory ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications of 2L 110 - 220v Mini Laboratory Ball Mill



0.4L 110 - 220v Mini Laboratory  ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Features of Tencan 2L 110 - 220v Mini Laboratory Ball Mill



1.Patented oil seal mute technology and gear drive core technology(gear running in the oil tank ),noise reduced by 50%,increase service life more than 2 times
2.PLC frequency conversion control:the inverter has the protection of undervoltage and overcurrent, and has the memory after the power off, so it can protect the motor.
3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.
4.Suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature mill.
5.Ensures the Homogeneity and repeat-ability of the experiment.
6.It can solute the problems for the deposition and sticking of some materials and four samples could be obtained with different sizes in one experiment.
7.Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss. powder grinding laboratory planetary ball millmini ball mill
8.The device is equipped with a safety switch, which can avoid the equipment running after opening the safety cover, and avoid a safety accident; powder grinding laboratory planetary ball millmini ball mill
9.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
10.V clip with automatic gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape. powder grinding laboratory planetary ball millmini ball mill



Technical Parameters of 2L 110 - 220v Mini Laboratory Ball Mill



Main Parameters of 0.4L 110 - 220v Mini Laboratory Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run Time of Forward & Reversal Rotation
(min)
XQM-2A 0.75 220V-50Hz 530*300*340 45-335 70-670 1-9999 1-999





Accessories of 2L 110 - 220v Mini Laboratory Ball Mill

Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Super Fine Powder Grinding Laboratory Ball Mill Machine Small Size High Efficiency



We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.



Super Fine Powder Grinding Laboratory Ball Mill Machine Small Size High Efficiency
