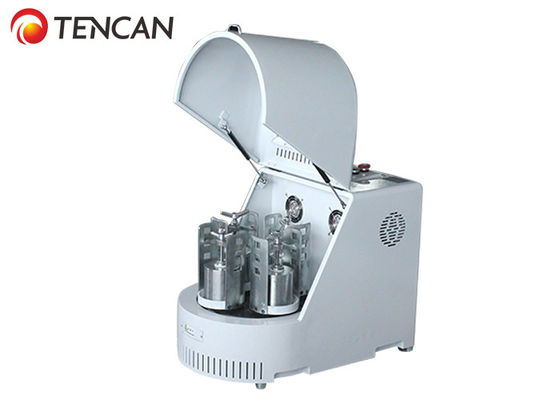

6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making

China 6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making supplier
6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making supplier 6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making supplier 6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making supplier 6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making supplier

Large Image :  6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-6A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Semi-circle Round Laboratory Ball Mill Model No.: XQM-6A
Total Volume: 6L Max Capacity: 1.98L
Rotate Speed: 70-670 Rpm Speed Control: Frequency Control
Voltage: 110V-60Hz Or 220V-50Hz Power: 0.75KW

6L Total Volume 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making

Overview

Semi-Circle Round Vertical Laboratory Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.

Working Principle

Semi-Circle Round Vertical Laboratory Ball Mill is designed to have four working positions which can be loaded with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.

Applications

Semi-Circle Round Vertical Laboratory Ball Mill is widely used in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Features

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc


Technical Parameters


Main Parameters of 6.0L Vertical Semi-circle Round Laboratory Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
RotationSpeed
(rpm)
XQM-0.4A 0.25 220V-50Hz
110V-60Hz
530*300*340 45-435 90-870
XQM-1A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-2A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-4A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-6A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670


Accessories of Mill Jars & Balls

Available Mill Jars Matching with XQM-4A:



Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.


6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.

6L 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making


Lab roll ball mill/ planetary ball mill/ Sitrred ball mill
