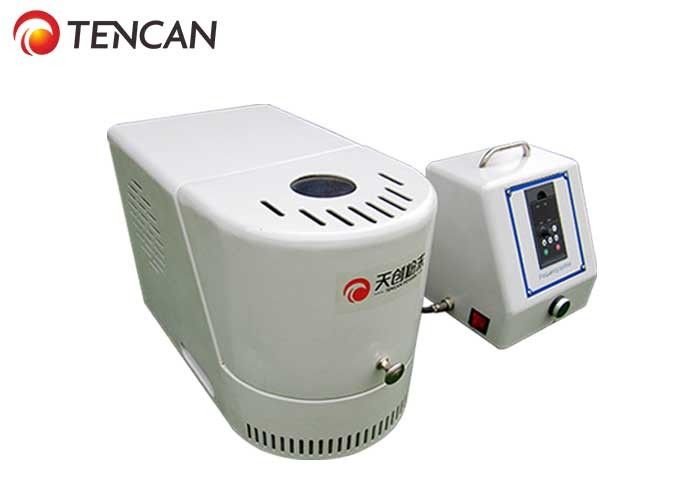

0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere

China 0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere supplier
0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere supplier 0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere supplier 0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere supplier 0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere supplier

Large Image :  0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE
Model Number: XQM-0.2S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton + Foam
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets month
Contact Now
Detailed Product Description
Product Name: Super Mini Planetary Ball Mill For Glove Box Use Model No.: XQM-0.2S
Total Volume: 200ml Max Capacity: 66ml
Rotate Speed: 120-1160 Rpm Speed Control: Frequency Control
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.09KW

Overview of Super Mini Planetary Ball Mill for Glove Box Use

Super mini planetary ball mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.

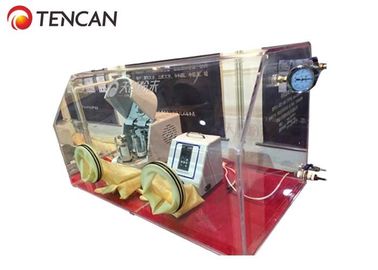

Super mini planetary ball mill model No.XQM-0.2S is designed to be used inside the glove box under inert gas purification atmosphere with water and oxygen removal.

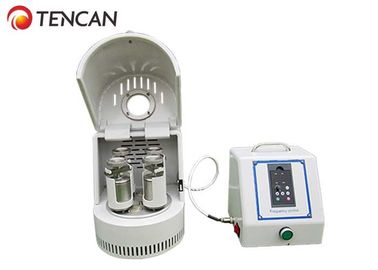

0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere



Working Principle of Super Mini Planetary Ball Mill for Glove Box Use

Vertical planetary ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications of Super Mini Planetary Ball Mill for Glove Box Use

Vertical planetary ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Super mini planetary ball mill model No.XQM-0.2S is a kind of special equipment used for glove box. It can be placed inside the glove box for grinding any sensetive material under vacuum or inert gas protection atmosphere. This model expands greatly application scope for customers and materials research, and grind some materials which can not be milled under normal air atmosphere.



Features of Tencan Super Mini Planetary Ball Mill for Glove Box Use

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2.Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small granularity.

3. Four powder samples from different sizes and different materials can be produced at one time.

4. The machine is controlled by frequency converter, you may set ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may select any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.

6. Technical features of XQM-2S: small volume, more functions,low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

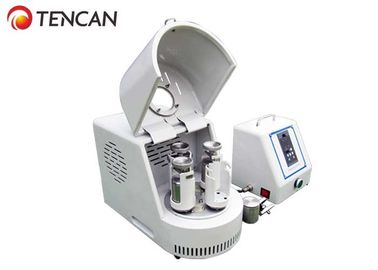

0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere



Technical Parameters of Tencan Super Mini Planetary Ball Mill for Glove Box Use



Super Mini Planetary Ball Mill For Glove Box Use
Model No. Voltage Power
(W)
Revolution Speed
(rpm)
Rotation Speed
(rpm)
Inner Diameter
of Jar Holder
(mm)
Max Height
of Jar
(mm)
Outline dimension
(mm)
Net Weight
(KGS)
XQM-0.2S 110V/50Hz,60Hz
or 220V/50Hz for buyer option
90 60-580 120-1160 50 60 220*410*270 24







0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere



Please Check the Parameter of Mill Jar and Mill Ball



Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and  etc.



0.2L Super Mini Planetary Ball Mill for Glove Box Use Under Nitrogen Atmosphere

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.





References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
