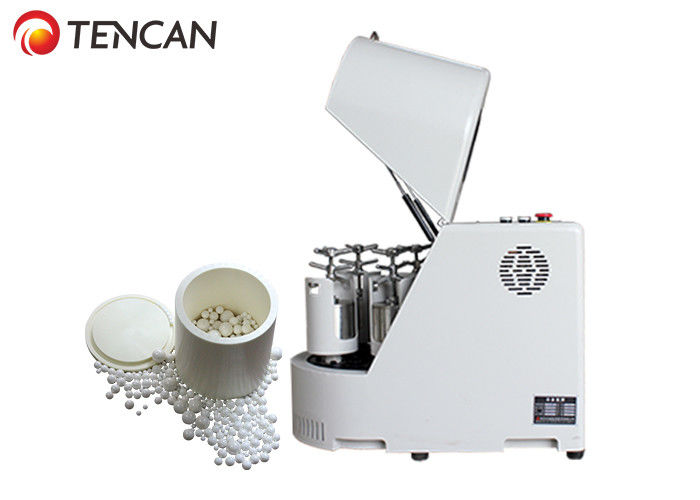

    4L Nano Pulverizer High Energy Planetary Ball Mill Machine For High - Capacity

    Product Details:

    Place of Origin: Hunan, China
    Brand Name: TENCAN
    Certification: CE ISO
    Model Number: XQM-4A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Carton+Foam
    Delivery Time: 3-7 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 220 sets per month
    Get Best Price Contact Now

    Detail Information

    Product Name: Vetical Planetary Ball Mill Model No.: XQM-4A
    Total Volume: 4000ml Rotate Speed: 70-670 Rpm
    Speed Control: Frequency Control Voltage: 220V-50Hz
    Power: 0.75kW
    High Light:

    planetary mill

    ,

    planetary milling machine

    Product Description

    4L Nano Pulverizer High Energy Planetary Ball Mill Machine For High - Capacity



    XQM-4A 4LNano Pulverizer High Energy Ball Mill High-capacity Planetary ball mill machine





    Product Description

    Features of Planetary Ball Mill 4L

    Elegant design, easy to operate
    Ideal for wet or dry grinding application
    Automatic and programmable control with LED display
    Multiple grinding modes to choose
    High uniformity and excellent repeatability
    Fast rotational speed, high efficiency and fine granularity
    Reversing function
    Programmable interval and pause times
    Four samples with different sizes and materials in one experiment
    Stepless speed regulation; ideal rotary speed selection according to experimental results
    Large range of materials available for grinding media
    Gear-drive offers an effective solutions to problems caused by belt driving, such as belt creep and belt abrasion
    Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small

    wear
    Cooling of the grinding chamber with a built-in fan for long grinding times

    Application Areas of Planetary Ball Mill 4L

    Geology and Mineralogy: rock, gravel, sand, minerals
    Ceramics: porcelain, sintered ceramics, clay, fireclay
    Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
    Biology: plants, leaves, freeze-dried samples
    Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
    Metallurgy: ores, sinters
    Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
    Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography



    Working Principle of Planetary Ball Mill 4L

    The grinding sample is comminuted by high-energy impacts from grinding balls and friction between balls and the grinding jar wall.


    Technical Datas of Planetary Ball Mill 4L
    Working Principle
    impact and friction force
    Item No.
    XQM-4A
    Compatible Grinding Jars
    (50ml~1000ml) * 4
    Max Feeding Capacity
    2/3 capacity of the grinding jar
    Operation Mode
    2 or 4 grinding jars working simultaneously
    Feeding Granularity
    Soil materials < 10mm, others materials < 3mm
    Discharging Granularity
    down to 0.1μm
    Sample Type
    hard, medium-hard, soft, fibrous, brittle, moist, tough
    Rotational Speed of Grinding Jar
    670rpm
    Rotational Speed Ratio (planetary disk/jar)
    1 : 2
    Drive Mode
    gear drive and belt drive
    Speed Control
    stepless speed regulation
    Electrical Details
    110V or 220VAC, 50/60Hz, 0.75KW
    Max Continuous Grinding Time
    72hours (full-load)
    Weight (Net /Gross)
    86KG /120KG
    Dimension (L*W*H)
    750*470*590mm
    Dimension of Planetary Disk
    Dia340mm*T6mm





    Application Areas

    Application Area of Best price Small Lab Planetary Ball Mill with output 0.1 micron:



    1. Geology and Mineralogy: rock, gravel, sand, minerals
    2. Ceramics: porcelain, sintered ceramics, clay, fireclay
    3. Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
    4. Biology: plants, leaves, freeze-dried samples
    5. Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
    6. Metallurgy: ores, sinters
    7. Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
    8. Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography.


    Product Effects

    Best price Small Lab Planetary Ball Mill with output 0.1 micron

    Best price Small Lab Planetary Ball Mill with output 0.1 micron



    Remarks:

    Please note: for this TENCAN Ball mill, you require two or four grinding jars of your choice and the corresponding number of grinding balls. The grinding jar material must be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density can be used.





    Technical Parameters



    Main Parameters of 4L 110 - 220v Laboratory Planetary Ball Mill
    Model Power(KW) Voltage Dimension(mm) Revolution Speed
    (rpm)
    RotationSpeed
    (rpm)
    Total Timing
    (min)
    Alternating Run Time of Forward & Reversal Rotation
    (min)
    XQM-4A 0.75 220V-50Hz 750*470*590 45-335 70-670 1-9999 1-9999



    Accessories of Mill Jars & Balls



    Available Mill Jars:



    304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.



    4L Nano Pulverizer High Energy Planetary Ball Mill Machine For High - Capacity 2



    Available Mill Balls:



    304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



    4L Nano Pulverizer High Energy Planetary Ball Mill Machine For High - Capacity 3

    Packaging & Delivery

    Packaging Details

    Selling Units: Single item
    Single package size: 82X53X73 CM
    Single gross weight: 110.0 KG

    Loading Port: Shanghai, Hangzhou, Shenzhen, Guangzhou

    Lead Time: Shipped in 3 -7 days after payment
