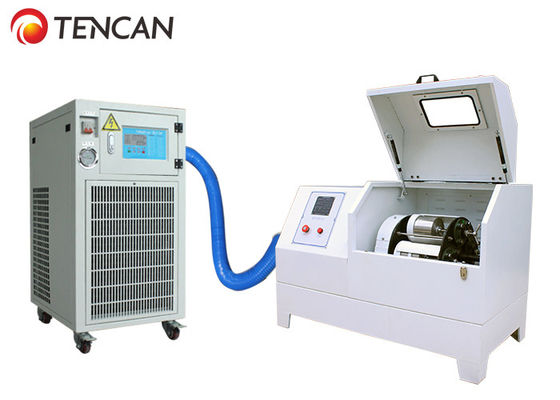

Low Noise 20L Wet Grinding Ball Mill Air Cooled And Temperature Controlled

China Low Noise 20L Wet Grinding Ball Mill Air Cooled And Temperature Controlled supplier

Large Image :  Low Noise 20L Wet Grinding Ball Mill Air Cooled And Temperature Controlled

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-20(C)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Full Directional Planetary Ball Mill Model No.: XQM-20(C)
Total Volume: 20 Liter Rotate Speed: 50-430 Rpm
Speed Control: Frequency Control Voltage: Three Phase 380V-50Hz
Power: 4kW



XQM-20(C) TENCAN Hot Selling 20L Air cooled planetary ball mill and temperature controlled ball mill for sale



Product Description

Features
Ideal for wet or dry grinding application
Automatic and programmable control with LED display
multiple grinding modes to choose
High Uniformity and excellent repeatability
Four samples with different sizes and materials in one experiment
Cooling of the grinding chamber with a built-in fan for long grinding times



Application:



Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.



Specifications

Technical Datas of Best price Small Lab Planetary Ball Mill with output 0.1 micron:

Working Principle impact and friction force
Item No. XQM-20(C)
Compatible Non Vacuum Grinding Jars 5000ml x 4
Compatible Vacuum Grinding Jars 5000ml *4 grinding jars
Operation Mode 2 or 4 grinding jars working simultaneously
Feeding Granularity Soil materials < 10mm, others materials < 3mm
Discharging Granularity down to 0.1μm
Sample Type hard, medium-hard, soft, fibrous, brittle, moist
Rotational Speed of Grinding Jar 430rpm
Rotational Speed Ratio (planetary disk/jar) 1 : -2
Drive Mode gear drive and belt drive
Speed Control stepless speed regulation
Electrical Details 380C, 50Hz, 4kW,
Max Continuous Grinding Time (full-load) 72hours
Weight (Net /Gross) 330KG /380KG
Dimension (L*W*H) 1200*750*920mm
Package (L*W*H) 1300*870*1050mm

Product Effects

Best price Small Lab Planetary Ball Mill with output 0.1 micron

Best price Small Lab Planetary Ball Mill with output 0.1 micron



Remarks:

Please note: for this TENCAN ball mill, you require two or four grinding jars of your choice and the corresponding number of grinding balls. The grinding jar material must be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density can be used.





Technical Parameters



Main Parameters of 20L 380V Air cooled Planetary Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run Time of Forward & Reversal Rotation
(min)
XQM-20C 4 380V-50Hz 1200*750*920 25-215 50-430 1-9999 1-9999



Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.



Low Noise 20L Wet Grinding Ball Mill Air Cooled And Temperature Controlled



Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



Low Noise 20L Wet Grinding Ball Mill Air Cooled And Temperature Controlled
