TENCAN Mini Vertical Planetary Ball Mill with 50ml Jars - Nano Powder Grinding System (110V/220V)
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-0.2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 3-7 working days after getting full payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Product Name: | Mini Lab Planetary Ball Mill | Model No.: | XQM-0.2S |
|---|---|---|---|
| Total Volume: | 0.2L | Max Capacity: | 0.07L |
| Rotate Speed: | 90-1120 Rpm | Speed Control: | Frequency Control |
| Voltage: | 220V-50Hz Or 110V-60Hz | Power: | 0.09KW |
| Highlight: | lab ball mill,laboratory ball mill machine |
||
Product Description
TENCAN Mini Vertical Planetary Ball Mill with 50ml Jars - Nano Powder Grinding System (110V/220V)
Overview:
Planetary ball mills are compact benchtop instruments designed for laboratory-scale sample preparation. This high-performance grinding system utilizes a unique planetary motion mechanism to reduce materials to nano-scale fineness. The grinding jars are eccentrically mounted on a sun wheel, rotating in opposite direction at speed ratios of 1:-2 or 1:-1.5. This configuration generates powerful Coriolis forces, creating a synergistic effect of impact and friction forces for ultra-fine particle size reduction.
Working Principle:

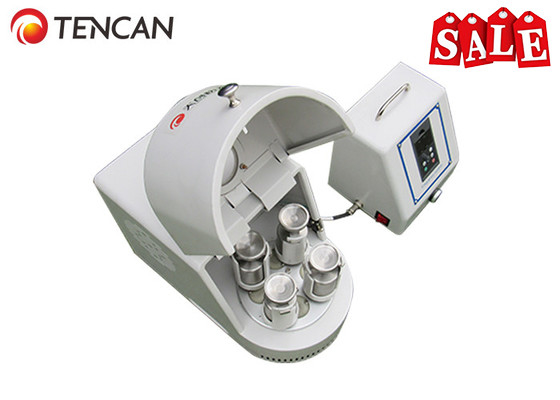

The TENCAN Mini Planetary Ball Mill features four working stations capable of holding 2-4 grinding jars simultaneously. During operation, the jars perform high-speed planetary movements, causing intense collision between grinding balls and materials. This process efficiently pulverizes samples to as fine as 0.1μm through either dry or wet grinding methods.
Key Applications:
• Geology & Mineralogy: rocks, gravel, sand, minerals
• Ceramics: porcelain, sintered ceramics, clay
• Chemistry: pesticides, fertilizers, salts
• Biology: plant materials, freeze-dried samples
• Pharmaceuticals: ointments, extracts, tablets
• Metallurgy: ores, sintered materials
• Material Science: pigments, alloys, composites
• Analytical Preparation: XRD, XRF, chromatography
Product Features:
High-speed operation for submicron grinding
Adjustable speed ratios (1:-2 or 1:-1.5)
Jar capacities from 12ml to 100ml (6 material options)
Designed for continuous operation
Auto-reverse function prevents particle agglomeration
Technical Specifications:
• Voltage Options: 110V/220V
• Minimum Particle Size: 0.1μm
• Jar Materials: Stainless steel, nylon, ceramics, etc.
• Grinding Methods: Dry/Wet
• Compact benchtop design
Ideal for research laboratories requiring precise, reproducible nano-scale powder preparation across various scientific disciplines.
Technical Parameters
| Main Parameters of 0.2L 110V or 220v Mini Laboratory Ball Mill | |||||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
| XQM-0.2A | 0.09 | 220V-50Hz | 250*425*280 | 45-435 | 90-1160 | 1-9999 | 1-9999 |
Accessories of 0.2L 110 - 220v Mini Planetary Ball Mill
Besides the planetary ball mill machine, we also provide all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina ceramic mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jars etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
