TENCAN CE Certified 1700°C Dental Zirconia Sintering Furnace with MoSi2 Heater and 7-Inch Touch Screen for Denture Ceramic
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TENCAN |
| Certification: | CE |
| Model Number: | TC-CDF-1L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 7~15 |
|
Detail Information |
|||
| Application: | Zirconia Denture & Dental Ceramic Sintering | Max Temperature: | 1700°C |
|---|---|---|---|
| Working Temperature: | 1600°C | Chamber Capacity: | 100*100*100mm |
| Heating Rate: | 0~40°C/min | Temperature Accuracy: | ±1°C |
| Control System: | 30-Segment Programmable Auto Control | Operation Panel: | 7-Inch HD Touch Screen |

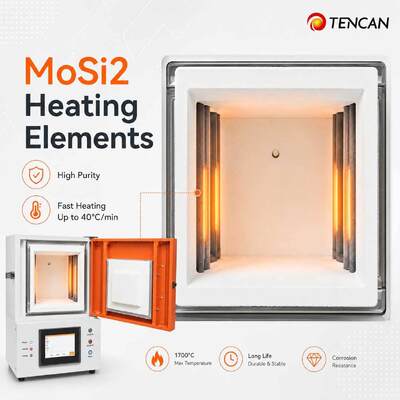

| Heating Element: | MoSi2 Heating Element | Power: | 1.5kW Energy-Saving Design |
Product Description

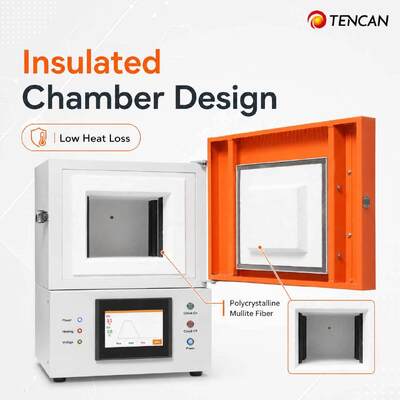

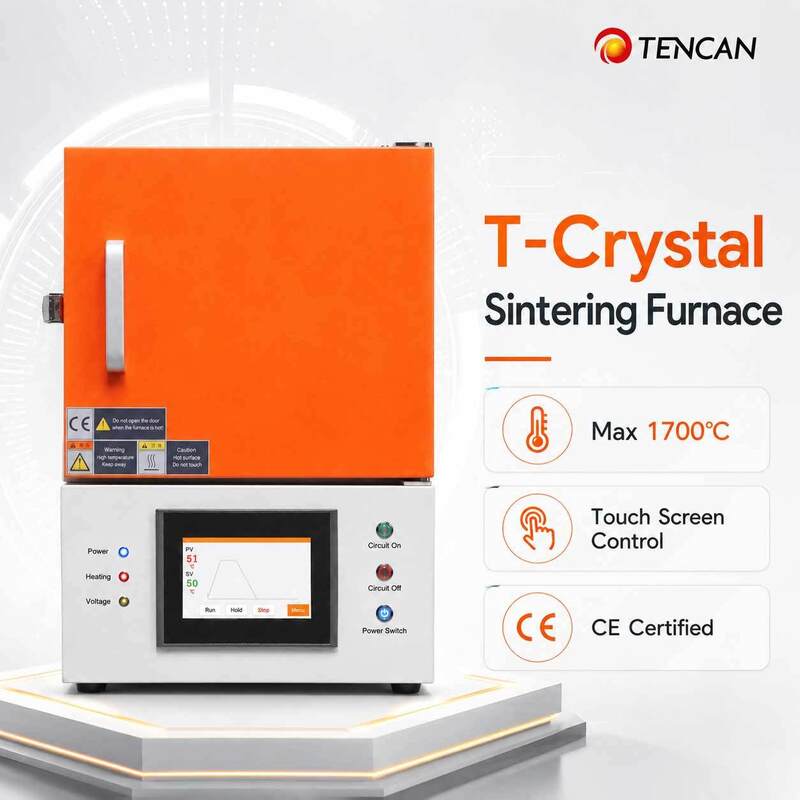

The TENCAN Box-Type Sintering Furnace is a compact and energy-efficient high-temperature furnace designed for dental zirconia sintering and small-batch laboratory applications. It features a high-purity polycrystalline mullite fiber chamber, offering excellent thermal insulation, low heat loss, and stable heating performance during repeated sintering processes.
With a lightweight structure, compact footprint, and rated power of only 1.5 kW, this furnace is especially suitable for small laboratories, dental studios, research rooms, and space-limited working environments. It provides users with a practical sintering solution that doesn't require large installation space or high power consumption.
This box-type sintering furnace is widely used in dental laboratories for zirconia crown and bridge sintering, as well as in laboratories that require small-batch ceramic sintering, material testing, and high-temperature thermal processing. Its simple operation, efficient insulation, and reliable temperature performance make it suitable for both professional dental technicians and laboratory users.
The Box-Type Sintering Furnace is a closed heat treatment system designed for material sintering processes. Samples or workpieces are placed inside the furnace chamber and heated to a set temperature, allowing material particles to bond together and form a stronger, denser structure.
Its enclosed box-type design helps maintain a stable heating environment and supports uniform heat distribution during the sintering process. This furnace is suitable for:
- Dental zirconia crystallization
- Structural ceramics
- Polymer-derived ceramics
- Laboratory sample sintering
- Other small-batch high-temperature applications
- Designed for zirconia dental restoration crystallization, structural ceramics, polymer-derived ceramics, and small-batch laboratory sample sintering
- Rated power of only 1.5 kW - no special high-power industrial circuit required
- Fast heating performance with adjustable heating rate of 0-40°C/min

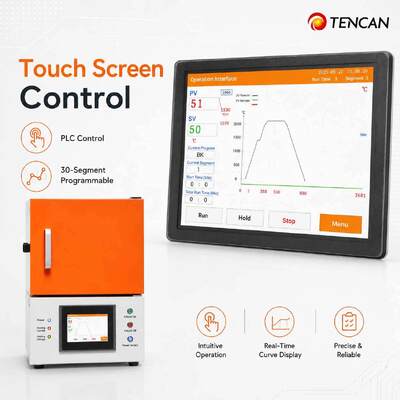

- Equipped with a 7-inch HD touchscreen for easy operation and clear parameter display
- Controller stores up to 30 different process programs for efficient workflow switching
- Suitable for small laboratories, dental studios, and standard working environments
| Item | Specification |
|---|---|
| Chamber Size | 100 × 100 × 100 mm (W × H × D) |
| Maximum Temperature | 1700°C (for no more than 2 hours) |
| Working Temperature | 1600°C |
| Temperature Control Method | Intelligent 50-segment programmable control |
| Thermocouple | B Type |
| Temperature Control Accuracy | ±1°C |
| Rated Power | 1.5 kW |
| Net Weight | 58 kg |
| Overall Dimensions | 410 × 380 × 610 mm |
