Laboratory Stainless Steel Vacuum Glove Box – Safe Controlled Environment for Chemistry Work
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | GBV-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case with foam |
| Delivery Time: | 25-35 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Vacuum Glove Box | Model No.: | GBV-1 |
|---|---|---|---|
| Material: | Stainless Steel & PMMA Material | Chamber Szie: | 600*500*500mm |
| Packing: | Plywood Case | Place Of Origin: | Hunan, China |
| Pressure Holding Time: | More Than 12 Hours | Certificate: | CE ISO |
| Highlight: | stainless steel laboratory glove box,vacuum glove box for chemistry,controlled environment glove box |
||
Product Description
China Tencan 0 to -0.1MPa SS. Material Glove Box Laboratory Equipment,Isolation Vacuum Glove Box
Overview

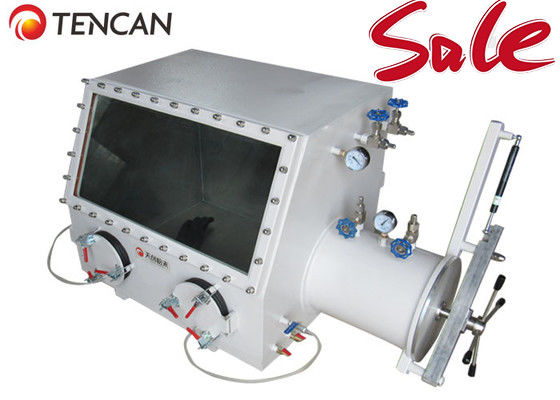

TENCAN Stainless Steel Vacuum Glove Box – Controlled Atmosphere for Sensitive Materials
Overview
Certain chemical and material research involves water- or oxygen-sensitive substances, which require controlled environments for safe and accurate experimentation. While traditional vacuum vessels provide anaerobic and vacuum conditions, they often lack operational convenience.
The TENCAN stainless steel vacuum glove box addresses both environmental and operational challenges. By introducing high-purity inert gas and circulating it within the chamber, the system removes reactive substances while allowing safe and precise manipulation of sensitive materials. Also referred to as a glove box, operation box, inert gas protection box, or dry box, it is widely used in chemical laboratories, material research, and specialized industrial applications.
Working Principle
The vacuum glove box is composed of three main sections:
-
Main Chamber: Provides a controlled atmosphere with optional vacuum ball valves for inert gas introduction or water/ventilation operations.
-
Transition Area: Acts as a bridge between the main chamber and the external environment, equipped with two sealed doors and two vacuum ball valves, enabling easy introduction and removal of materials without compromising the internal atmosphere.
-
Base & Accessories: Includes glove ports (2–3), interior lighting, and optional local heating for enhanced operational convenience.
The setup ensures visibility, operational comfort, and maintenance of strict anaerobic conditions while allowing flexibility for user-specific requirements.
Features
-
Durable Construction: Entirely stainless steel, reinforced with plastic and protective spray for corrosion resistance and easy cleaning.
-
Wide-Angle Visibility: Front panel made of tempered glass with no blind spots.
-
Internal Heating & Lighting: Interior lighting and porous sockets can be locally heated.
-
Robust Gloves: Thick latex gloves, well-sealed and durable for safe handling.
-
Reliable Sealing: Novel sealing device design for easy opening and secure closure.
-
Water & Gas Access: Both interior and exterior equipped with water faucets for fluid and gas introduction.
-
Efficient Transition Chamber: Two-door design reduces repeated vacuum extraction cycles.
Technical Parameters
| Parameters of TENCAN Stainless Steel Vacuum Glove Box | |||||||
| No. | Model No. | Total Dimensions | Box Size | Transition Cabin Size (Optional) |
Left Door Size (Optional) |
Glove Port Size | Vacuum Degree |
| 1 | GBV-1 | 1030*570*530mm | 600*500*500mm | Φ200*280mm | 255*330mm | Φ150mm | -0.1~0.0Mpa Keep vacuum for more than 12 hours |
| 2 | GBV-2 | 1295*715*675mm | 800*650*650mm | Φ273*350mm | 360*480mm | Φ150mm | |
| 3 | GBV-3 | 1755*776*1010mm | 1200*700*950mm | Φ350*400mm | 450*600mm | Φ196mm | |
