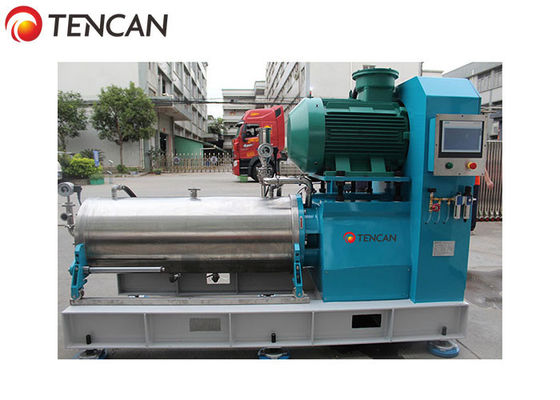

Tencan KNB-S-0.6L Rod Pin Bead Mill for Lithium Battery Slurry
Product Details:
| Place of Origin: | China |
| Brand Name: | Tencan |
| Certification: | CE |
| Model Number: | KNB-S-0.6L |
Payment & Shipping Terms:
| Minimum Order Quantity: | One set |
|---|---|
| Packaging Details: | Plywood case |
| Delivery Time: | 5-8 working after receiving |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Machine Name: | Rod Pin Bead Mill | Model: | KNB-S-0.6L |
|---|---|---|---|
| Batch Size: | 1.5-10L | Power Supply: | 380V/50Hz/60Hz 3 Phase |
| Power: | 5.5KW | Weight: | 175kgs |
| Dimensions: | 1020*780*840mm | ||
| Highlight: | Tencan rod pin bead mill,lithium battery slurry mill,0.6L bead mill machine |
||
Product Description
Tencan 0.6L Wet Grinding Sand Mill for Lithium Battery Slurry (Anode/Cathode)
Specifications
| Model | Active Volume |
Power (KW) |
Batch Size (L) |
Media size (mm) |
Weight (kgs) |
Dimensions (mm) |
| KNB-S-0.3L | 0.3L | 2.2 | 0.3-5 | 0.1-2.0 | 60 | 500*450*650 |
| KNB-S-0.5L | 0.5L | 5.5 | 1.5-10 | 0.1-2.0 | 170 | 1020*780*840 |
| KNB-S-0.6L | 0.6L | 5.5 | 1.5-10 | 0.1-2.0 | 175 | 1020*780*840 |
| KNB-S-1L | 1L | 5.5 | 3-20 | 0.1-2.0 | 190 | 1020*780*840 |
| KNB-S-3L | 3L | 11 | 5-100 | 0.1-2.0 | 400 | 1300*900*1750 |
| KNB-S-6L | 6L | 18.5 | 20-200 | 0.1-2.0 | 550 | 1300*900*1750 |
| KNB-S-10L | 10L | 22 | 30-300 | 0.1-2.0 | 1300 | 1300*900*1750 |
| KNB-S-25L | 25L | 37 | 75-1000 | 0.1-2.0 | 1700 | 1900*1500*1700 |
| KNB-S-30L | 30L | 37/45 | 80-1000 | 0.1-2.0 | 1900 | 1900*1500*1700 |
| KNB-S-60L | 60L | 75/90 | 200-2000 | 0.1-2.0 | 3600 | 2100*1650*1900 |
| KNB-S-100L | 100L | 110 | 300-4000 | 0.1-2.0 | 5600 | 2400*1650*2200 |
| KNB-S-150L | 150L | 185 | 500-6000 | 0.1-2.0 | 6800 | 2600*165082300 |
| KNB-S-400L | 400L | 355 | 1000-10000 | 0.1-2.0 | 10500 | 4000*1900*2900 |
Applications
Widely used for fine grinding needs in industries such as coatings, inks, lithium batteries, pharmaceuticals, pesticides, etc
Features
1.Suitable for grinding materials of 0.1-0.2mm, suitable for ultrafine grinding above 100nm.

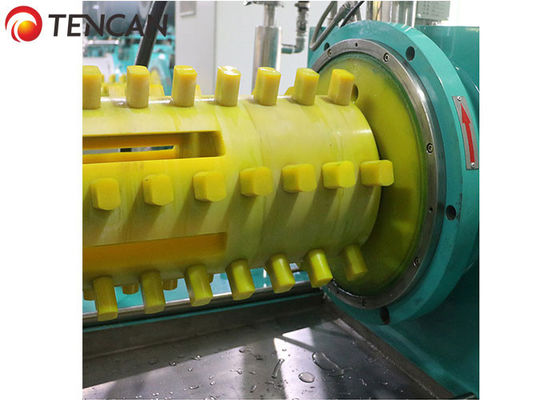

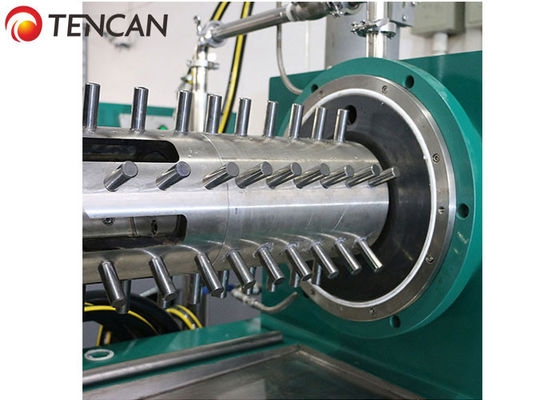

2.The rotor design is based on fluid mechanics and simulation, with a gap of 7-12mm between the rotor and the container.
3.Efficient and with narrow particle size distribution.
4.Adopting a large-area screen separation system to prevent clogging issues.
5.The cooling system design is based on the principles of spiral three-dimensional heat and fluid mechanics to ensure effective temperature control.
6.Advanced mechanical sealing technology to prevent leakage losses.
7.Pressure and temperature automatic safety protection device.
8.Optional product contact materials to meet different grinding requirements
9.Touch screen or PLC control panel, easy to operate.
Technical data
lInitial particle size :＜100um.
After ground :0.2- 2um.
Solvent : water-base,oil-base.
Viscosity :＜40000CPS
Grinding media size:0.1- 1.40mm
Rotor material : Zirconia, Silicon carbide, Tungsten Carbide , PU, Alloyed steel.
Inner vessel material : Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
BROCHURE OF BEAD MILL
What is bead mill?
Wet grinding bead mill is an efficient wet ultrafine grinding equipment that achieves nanoscale dispersion by shearing, impacting, and rubbing materials through the high-speed movement of grinding media (zirconium beads, glass beads, etc.).
What is the benefits ?
How to select a agitator bead mill, KEY points?
A.Particle Size Requirements:Particle Size Requirements and Target fineness &Sensitivity
B. Viscosity & Solid Content:Linear velocity of rotor determines the intensity of kinetic energy that transffered to the grinding media which affects the grinding efficiency, fineness of particles and wear loss of grinding media. 12-16 m/s is the generally operation speed.
C. Equipment Specifications :Agitator Design;Bead Selection;Separation System
D. Separation System:Throughput Needs;Ease of Maintenance
Working principle
Comparison between bead mill and ball mill
Features
1. The whole system contr olled by PLC and industrial computer,to realize the intelligent process control from raw material feeding, pre-mixing, ultra fine grinding ,filtration, iron-removal,spray drying and canning pack.
2. Interface touch screen display and monitor the running status of the whole system.
3. Pre-setting different grinding program recipe to realize switch grinding process easily.
4. Automatic store and analysis the running data
5. High precision sensors and gauges keeps the stability and safety operation
l6.To save labor cost, improve efficiency and create more benefits to our customers.
General application
New energy: Lithium-ion battery, lsilicon carbon, graphene, carbon nanotubes, alumina membrane slurry, PVDF membrane slurry, etc.
Powder: Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Silicon Materials, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, magnetic materials, etc.
Chemicals: Automotive coating, furniture paint, anticorrosive paint, special paint, color paste, ceramic ink, UV ink, glass ink,offset ink, cosmetics, pharma , food, agriculture and others to provide a complete set of solutions.
Automatic production line platform
