500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QM-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 8-10 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 220 sets per month |
|
Detail Information |
|||
| Product Name: | Roll Ball Mill | Model No.: | QM-500 |
|---|---|---|---|
| Voltage: | 380V-50Hz | Power: | 7.5KW |
| Rotation Speed: | 20-36 RPM | Speed Control: | Frequency Control |
| Total Volume: | 500L | Max Capacity: | 175L |
| Highlight: | 500L Industrial Roll Ball Mill,380V Industrial Roll Ball Mill,Polyurethane Industrial Roll Ball Mill |
||
Product Description

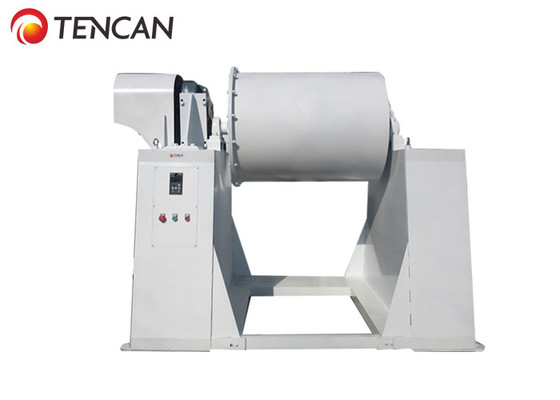

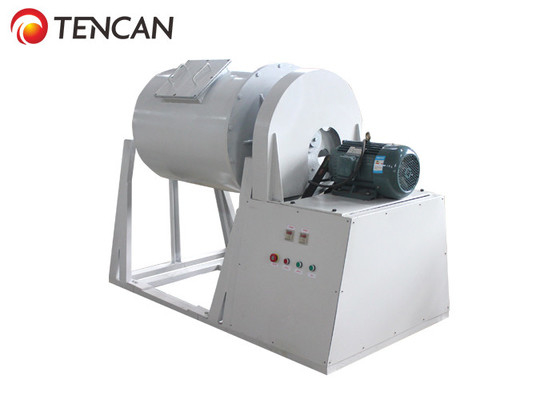

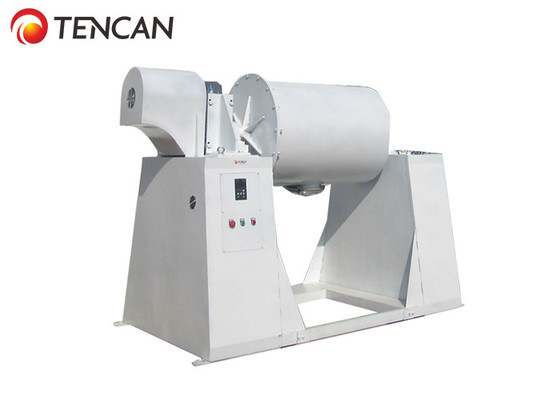

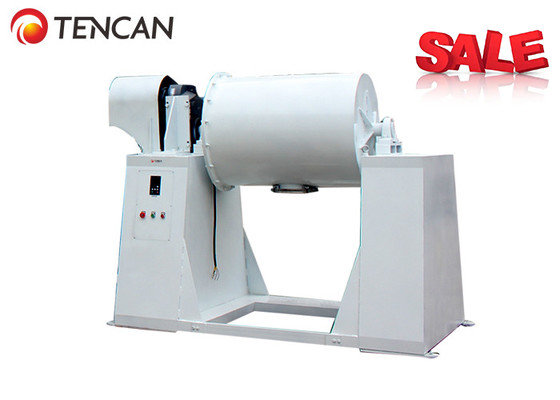

500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
Overview
The 500L Roll Ball Mill is a professional-grade grinding system designed for ultra-fine powder processing in laboratory, pilot-scale, and small-batch production applications. Engineered for high efficiency, precision, and durability, this heavy-duty mill features customizable polyurethane or zirconia liners, making it ideal for industries requiring contamination-free grinding.
Key Advantages
✔ Large 500L Capacity – Optimized for high-volume fine grinding & mixing
✔ Multi-Material Liner Options – Choose between polyurethane, zirconia, stainless steel, or ceramic for contamination control
✔ Precision Grinding Control – Adjustable speed & programmable timing with pause/cumulative functions
✔ Wet & Dry Grinding – Supports both methods for versatile material processing
✔ Automated Powder Discharge – Built-in pouring system for efficient media separation & clean operation
✔ Industrial-Grade Construction – 380V powered with low-noise, high-stability performance
Working Principle
The mill rotates grinding media (balls) and material inside the tank, creating impact, friction, and shear forces for ultra-fine particle reduction. The inclined-flow movement ensures uniform grinding, achieving micron-level fineness.
Applications
