30L Light Roll Ball Mill Precision Powder Grinding Mixing System for Laboratory Small Production 220V/0.75KW Frequent 50HZ
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QM-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 8-10 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 220 sets per month |
|
Detail Information |
|||
| Total Volume: | 30L | Max Capacity: | 10.5L |
|---|---|---|---|
| Voltage: | 220V | Power: | 0.75KW |
| Rotation Speed: | 20-60RPM | Frequent: | 50HZ |
| Highlight: | 0.75KW Roll Ball Mill,30L Roll Ball Mill,Laboratory Roll Ball Mill |
||
Product Description

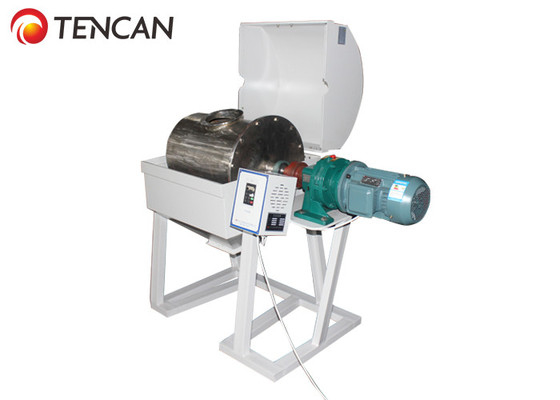

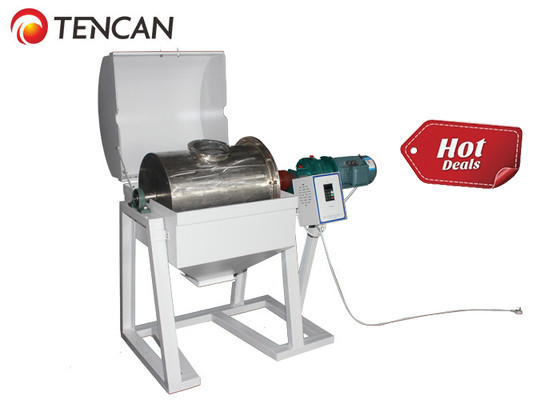

30L Light Roll Ball Mill (220V/0.75KW) - Precision Powder Grinding & Mixing System for Laboratory & Small Production
Overview:
The 30L Light Roll Ball Mill is a professional-grade grinding system designed for ultra-fine powder processing in research laboratories and small-scale production environments. Operating at 220V-50Hz with 0.75KW power, this versatile machine combines high efficiency with compact design, making it ideal for material research, pharmaceutical development, and specialty powder production.
Key Advantages:
✔ Precision Grinding Performance - Achieves micron-level fineness with uniform particle distribution
✔ Multi-Functional Operation - Supports both dry & wet grinding methods for diverse materials
✔ Advanced Safety Features - Includes dust-proof cover and auto-separation of media & powder
✔ Customizable Configuration - Optional speed adjustment (A-model) and various jar materials (stainless steel, polyurethane, ceramic)
✔ Clean & Quiet Operation - Low-noise design with zero contamination guarantee
✔ User-Friendly Design - Features programmable timer and auto-discharge function
Working Principle:
The system utilizes optimized rotational dynamics where grinding media and materials undergo continuous impact and shear forces, ensuring efficient size reduction through controlled cascading motion. The precisely calibrated rubber rollers deliver consistent performance for both fragile and hard materials.
Ideal For:
Advanced Material Research (Electronic/Nano/Magnetic)
Pharmaceutical & Biomedical Powder Processing
Ceramic Glaze & Metal Alloy Development
Quality Control & Sample Preparation Labs
Specialty Chemical & Mineral Processing
Technical Specifications:
• Capacity: 30L
• Power: 0.75KW
• Voltage: 220V/50Hz
• Speed: Fixed or Adjustable (Model Dependent)
• Jar Options: Stainless Steel/Polyurethane/Ceramic
• Safety: Full Enclosure & Auto Media Separation
Upgrade your powder processing with laboratory-grade precision and industrial reliability!
Technical Parameters
| Technical Parameters OF Light Type Roll Ball Mill | ||||||||
| Model | Volume Size (L) |
Rotating Speed (rpm) |
Max Capacity (L) |
Power Supply | Available Jars | Feed Size (mm) |
Output Granularity (mesh) |
Adjusted Mode of Rotate Speed |
| QM-20L | 20 | 20~60 | 6.6 | 220V/0.75KW | carbon steel stainless steel, lining,replaceable,nylon polyurethane,PTFE,corundum and etc |
≦5 | ≧300 | Frequency converter speed orfixed speed |
| QM-30L | 30 | 20~60 | 10.5 | 220V/0.75KW | ≦5 | ≧300 | ||
| QM-50L | 50 | 20~50 | 17.5 | 220V/1.5KW | ≦5 | ≧300 | ||
| QM-100L | 100 | 20~45 | 35 | 380V/2.2KW | ≦10 | ≧300 | ||
Accessories of Light Roll Ball Mill
Besides light roll ball mill machine, our factory provides all kinds of roll mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, normal ceramic mill pot and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, tungsten carbide balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, and other special metal materials.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
