1.5KW Rolling Ball Mill For 12 Multi Working Positions Multisamples Grinding
Product Details:
| Place of Origin: | Hunan，China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood Case with Foam |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 220 Set/Sets per Month |
|
Detail Information |
|||
| Power: | 1.5KW | Weight: | 106kg |
|---|---|---|---|
| Output Size (mesh): | ≥300 Mesh | Warranty: | 1 Year |
| Dimension: | 950*660*960mm | Customized Serices: | Dust Cover |
| Rotate Speed: | 50-410rpm | Feeding Size (mm): | 0.1 - 5 Mm |
| High Light: | Rolling Ball Mill 960mm,1.5KW Grinding Rolling Ball Mill,CE Dry Grinding Ball Mill |
||
Product Description

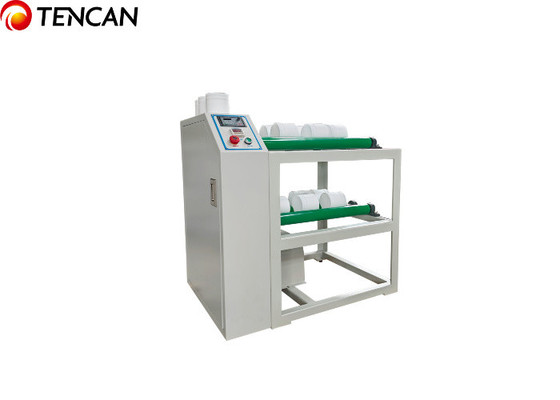

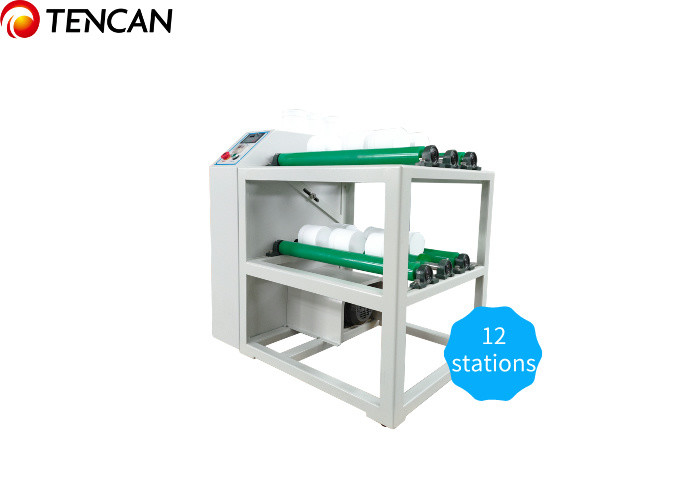

1.5KW Rolling Ball Mill for 12 Multi-working-positions multisamples Grinding
Product Description:
Roll Jar Mill is a specialized powder milling equipment designed for ultra-fine grinding and mixing in laboratory and small batch production. Also known as a rolling ball mill, it offers more than two working positions to meet various processing needs. With its elegant and fashionable design, compact structure, easy operation, high efficiency, and uniform granularity, this machine is the preferred choice for scientific research, education, experiments, and production.
The Roll Jar Mill is widely used in industries such as electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, and new materials. Its optimal design for rotating speed ensures the best grinding performance. The mill jar is rotated by rubber rollers, causing the balls inside to flow and disperse the materials. This results in finely ground micro powder. The machine also features a timing control panel, allowing for pausing and cumulative timing, providing flexibility to set the working time as needed. This not only saves time and labor, but also makes operation easier.
When the machine is activated, the grinding media and materials inside the cylinder are rotated to a certain height. Due to gravity, they fall from the tube wall, and are crushed by the impact, friction, and shearing action of the grinding media. This not only saves time and labor, but also makes operation easier.
Features:
Our technology offers the capability to grind various types of sample material in one go, giving you more options for your testing needs.
Our equipment allows for both intermittent and continuous operation, providing you with flexibility to suit your experimental requirements.
With our machine, you can easily set the grinding time according to your specific needs, giving you more control over the pulverizing process.
Our system is designed for high efficiency in ultrafine grinding, ensuring a faster and more thorough pulverizing experience.
The rubber roller used in our equipment is made from special materials that are highly durable, ensuring longevity and reliability throughout its use.
Technical Parameters:
| Product Name | Multi-stations Rolling Ball Mill |
|---|---|
| Key Word | Easy-cleaning Roll Ball Mill |
| Warranty | 1 Year |
| Dimension | 950*660*960mm |
| Output Size (mesh) | ≥300 Mesh |
| Rotate Speed | 50-410rpm |
| Voltage | 220V-50Hz Or 110V- 60Hz |
| Feature | Jar Easy To Clean And Change |
| Feeding Size (mm) | 0.1 - 5 Mm |
| Customized Serices | Dust Cover |
| Rotary Ball Mill | Yes |
| Rolling Ball Mill | Yes |
| Rolled Ball Mill | Yes |
Applications:
Rolling Ball Mill is a grinding equipment designed and manufactured by TENCAN, a leading brand in the field of laboratory and industrial machinery. It is made in Hunan, China and has ISO CE certification, ensuring its quality and safety standards. This product is suitable for various grinding applications in industries such as mining, ceramics, metallurgy, and more. It can also be used in research and development laboratories for testing and analyzing materials.
| Brand Name | Place of Origin | Certification |
|---|---|---|
| TENCAN | Hunan, China | ISO CE |
Rolling Ball Mill can be easily operated and maintained, making it a convenient and efficient choice for grinding processes. Its key feature is the Easy-cleaning Roll Ball Mill, which allows for quick and easy cleaning of the equipment after use, saving time and effort. This feature is especially useful for laboratory settings where multiple experiments are conducted in a day.
| Minimum Order Quantity | Price | Packaging Details |
|---|---|---|
| 1 set | negotiable | Plywood Case with Foam |
Rolling Ball Mill is available for purchase with a minimum order quantity of 1 set. The price is negotiable depending on the quantity and other factors. It is packaged in a sturdy plywood case with foam to ensure safe delivery. The delivery time is estimated to be 10-20 days, and orders can be paid through T/T or L/C. The supply ability of this product is 220 sets per month, making it readily available for customers.
| Weight | Feeding Size (mm) | Output Size (mesh) | Output (kg/h) |
|---|---|---|---|
| 106kg | 0.1 - 5 mm | ≥300 mesh | 0.35-1.98kg/h |
With a weight of 106kg, this compact and portable equipment is suitable for both laboratory and industrial use. It has a feeding size of 0.1 - 5 mm, making it suitable for grinding various materials. The output size can be adjusted to ≥300 mesh, providing a wide range of options for different applications. The output of this product is 0.35-1.98kg/h, ensuring efficient and consistent results.
In conclusion, the Rolling Ball Mill from TENCAN is a high-quality, easy-to-use, and versatile grinding equipment suitable for various industries and research laboratories. With its Easy-cleaning Roll Ball Mill feature, it provides convenience and efficiency to its users. Contact TENCAN now and get your own Rolling Ball Mill for your grinding needs!
Packing and Shipping:
The Rolling Ball Mill will be carefully packaged to ensure its safe delivery to our customers. The packaging process includes the following steps:
- First, the Rolling Ball Mill will be wrapped in a layer of protective foam to prevent any scratches or damage during transportation.
- Next, the machine will be placed in a sturdy and durable wooden case, which will provide additional protection during shipping.
- The case will then be sealed and labeled with the necessary shipping information, including the product name, model number, and destination address.
- Finally, the packaged Rolling Ball Mill will be loaded onto a shipping container and delivered to the designated shipping address via the chosen mode of transportation.
Our company works with reliable and experienced shipping partners to ensure timely and safe delivery of our products. We also provide insurance for all our shipments to provide our customers with peace of mind.
FAQ:
- Q: What is the brand name of this product?
A: The brand name is TENCAN. - Q: Where is this product made?
A: This product is made in Hunan, China. - Q: Does this product have any certification?
A: Yes, this product is certified with ISO and CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 1 set. - Q: Is the price of this product negotiable?
A: Yes, the price is negotiable. - Q: How is this product packaged for shipping?
A: This product is packaged in a plywood case with foam. - Q: What is the estimated delivery time for this product?
A: The estimated delivery time is 10-20 days. - Q: What are the accepted payment terms for this product?
A: The accepted payment terms are T/T and L/C. - Q: What is the supply ability for this product?
A: The supply ability is 220 sets per month.
