China Tencan 5L 0.37KW Lab Rolling Ball Mill For Grinding Pigment

China Tencan 5L 0.37KW Lab Rolling Ball Mill For Grinding Pigment

Product Description:

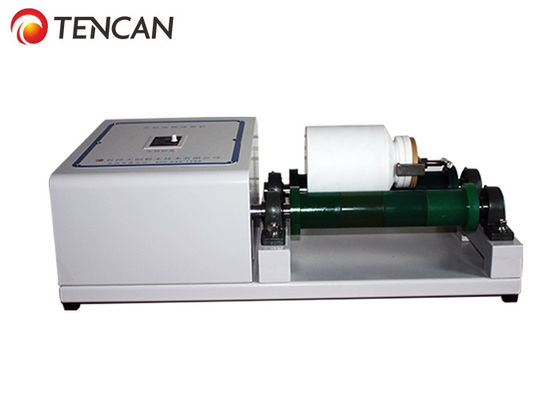

    Tencan's Rolling Ball Mill  is designed to grind materials into fine powder of up to 300-500 mesh size. This ball mill is powered by a 220v or 110v voltage motor, and can operate at a rotation speed of 60-570rpm. The feed size of this ball mill is between 1-10mm, allowing for precise and efficient precision grinding. This Rolling Ball Mill is a perfect choice for those looking for superior grinding results that are reliable and efficient.

Overview:

    Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.

Working Principle:

     When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.

Features:

1. Compact structure, easy operation

2. High efficiency and uniform granularity

3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.

4. It is convenient to change pots and suitable for both wet and dry grinding.

Technical Parameters:

Accessories:

    Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.

Recommendation of These Accessaries:

After Sales Service:

  1)  One year guarantee for whole machine except of ball mill jars and  balls.Some accessories we have 18-36 months warranty.
  2)  We shall make prompt response to any problem about the machine within 24 hours if you have.
  3)  We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide trouble-shooting solutions until the fault is completely eliminated.
  4)  If the machine is found any fault or problem, please do not hesitate to notify us the details about faults, caused reasons and status. We shall do our great efforts to solve according to following terms:

  a. Common faults:

    Common faults refer to failure of non critical parts or improper configuration that effects partial operation or leads to Inconvenience of machine operation. We shall solve such problems by email or posting parts by courier.

  b. Serious faults:

    Serious faults refer to failure of key parts or improper configuration that influence running or operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then shall send replacement of parts by courier, until solve the problems. Courier freight shall be for our account within quality warranty period.

FAQ:
