• PTFE Planetary Grinder Jar Strong Alkali Resistance
PTFE Planetary Grinder Jar Strong Alkali Resistance

PTFE Planetary Grinder Jar Strong Alkali Resistance

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: 5ML-25L

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 kgs per month
Get Best Price Contact Now

Detail Information

Sizes: 50ML-25L Brand: TENCAN
Certification: ISO Material: PTFE
Application: Accessories For Planetary Ball Mill Place Of Origin: Hunan, China
High Light:

PTFE Planetary Grinder Jar

,

Alkali Resistance Planetary Grinder Jar

,

Planetary Ball Mill Jar

Product Description

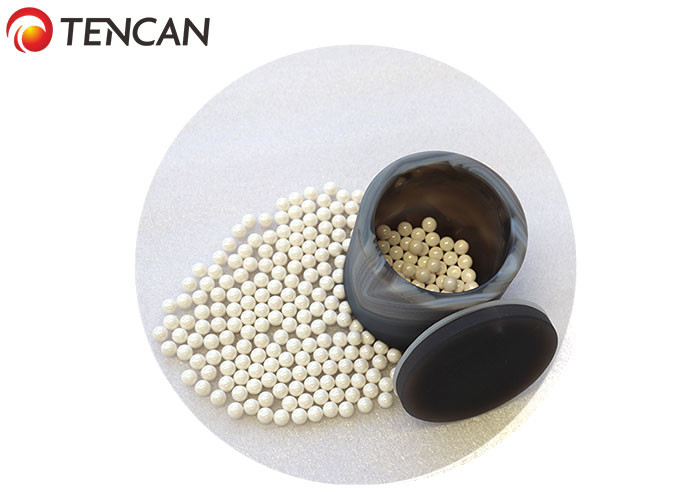

PTFE Planetary Grinder Jar Strong Alkali Resistance



Overview



The lid of the ball mill jar is another important component, as it helps to prevent contamination of the material being processed. Some lids are designed with a vacuum seal to prevent air from entering the jar during processing, while others may have a rubber gasket to provide a tight seal.

Ball mill jars can be cleaned and reused multiple times, making them a cost-effective solution for many manufacturing processes. Proper cleaning and maintenance are important to ensure that the jar and grinding media remain in good condition.



Features:



1. High temperature resistance: its max working temperature can be reached to 250°C.

2. Low temperature resistance: It has good mechanical toughness, even under condition of -196°C, its expansion rate can be also kept within 5%.

3. Corrosion resistance: For most chemicals and solvents, PTFE mill jar has features of corrosion resistance and inert as well as acid and alkali resistance.

4. Climate resistance: aging resistance and long durability.

5. High lubrication: The lowest friction coefficient among all solid materials.

6. No adhesion: The smallest surface adhesion of the solid materials. It does not adhere to any material.

7. No harmful for people health





Parameters







PTFE Planetary Mill Jar Parameters
Model Outside Diameter (mm) Inner Diameter (mm) Height
(mm)
100ml 68 48 74
250ml 88 68 94
500ml 108 88 109
1000ml 133 109 142
1500ml 133 109 187
2000ml 158 134 172
2500ml 158 134 202
3000ml 178 156 192
4000ml 178 156 242
5000ml 218 190 217
10L 246 218 307
15L 272 242 372
20L 320 285 359
25L 320 285 424





Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to be protected under special atmosphere. Vacuum mill jar



PTFE Planetary Grinder Jar Strong Alkali Resistance 0

















Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
