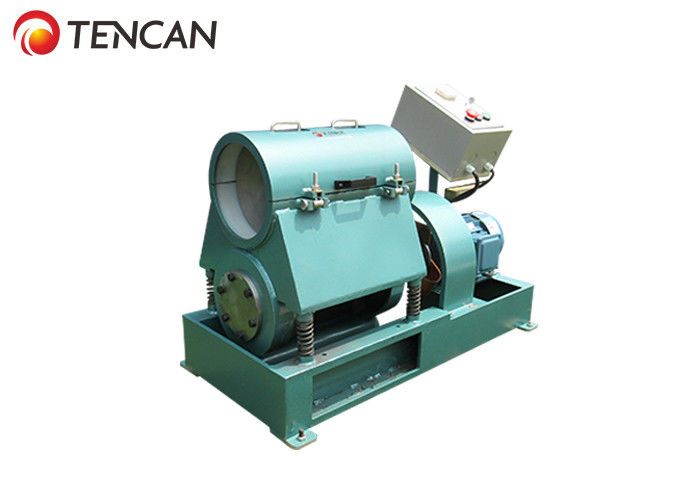

Customized 380V Vibration Ball Mill 1.1KW Laboratory With Cylinders
|Place of Origin:||Hunan, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Plywood Case + Foam|
|Delivery Time:||20-30 working days after getting full payment.|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100 sets per month|
|Product Name:||Laboratory Vibrating Ball Mill||Model No.:||ZM-5|
|Vibration Frequency:||1440 Rpm||Speed Control:||Frequency Control|
|Total Volume:||5L||Max Capacity:||2.5L|
380V Vibration Ball Mill,
1.1KW Vibration Ball Mill,
Vibrating Ball Mill With Cylinders
China Tencan Customized 5L 380V Laboratory Vibration Ball Mill , Lab Scale Ball Mill
Overview of Lab Vibrating Ball Mill
Lab vibrating ball mill, also called as vibration mill, is a new type of high efficiency powder milling equipment. It has three types of single cylinder, double cylinders and three cylinders. Lab vibrating ball mill is easy to operate, reliable in work, easy to clean, strong in adaptability to working conditions, without any environmental pollution, and it can be used for dry and wet grinding. Optional liners for cylinder: 304 or 316L stainless steel, alumina ceramic (corundum), zirconium oxide, nylon, polyurethane, PTFE, PP or PE, and etc..
Working Principle of Lab Vibrating Ball Mill
Lab vibrating ball mill mainly consists of frame, chassis, vibration exciter, grinding cylinder, spring, motor and so on. When the machine is started, the motor drives the vibrator to produce exciting force and make the grinding cylinder a continuous vibration of high frequency and small amplitude. As rotation and relative movement of grinding media make materials impacted and crushed frequently, and finally achieving purpose of crushing and milling materials.
Applications of Lab Vibrating Ball Mill
Lab vibrating ball mill is widely used in the fields of electronics, ceramics, chemicals, powder metals, tungsten, calcium carbide, rubber compounds, magnetic materials and high-frequency porcelain materials and pharmaceuticals in the radio industry.
Features of Tencan Lab Vibrating Ball Mill
1, It has larger capacity compared with other ball mills.
2, Simple structure, by adjusting the amplitude, frequency, media. Different ratio produces different particle size.
3. The vibrating ball mill with a jacket tube can adjust grinding temperature.
4. The vibrating ball mill with sieve and collecting devices keeps production continuously.
5, Simple and convenient operation, reliable work, easy cleaning, strong adaptability to working conditions.
6, No environmental pollution, dry and wet ball milling can be carried out.
7, Light weight, small volume, high efficiency.
8. Special order can be made according to the requirements.
Technical Parameters of Tencan Lab Vibrating Ball Mill
|Technical Parameters of Lab Vibrating Ball Mill|
|Model No.||Total Volume||Max Load Volume||Power Supply||Available Barrel||Feed Size||Output Granularity|
Available Mill Jars: Stainless steel mill jar, alumina ceramic mill jar, Zirconia mill jar, agate mill jar, tungsten carbide mill jar, PU mill jar, nylon mill jar, PTFE mill jar, and etc.
|Recommendation For Matching Solutions About Mill Jars & Materials|
|Categories of Materials||Recommended Mill Jars|
|Soil and other Materials which are not allowed with any impurity||Agate mill jar|
|Metal & nonmetal materials which are not allowed with any impurity||Zirconia mill jar|
|High hardness materials like diamond, tungsten carbide||Tungsten carbide mill jar|
|Strong add & alkali materials or other materials at high temperature||PTFE mill jar|
|Iron ore materials with lower impurity sensitivity||304 Stainless steel mill jar|
|Pigment or other materials with later process under high temperature||Nylon mill jar|
|Aluminum materials like ceramic glaze||Corundum mill jar|
|Electronic materials like lithium battery||Polyurethane mill jar|
|Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
|Vacuum mill jar|
|References About Grinding Medias & Materials|
|Zirconia Balls||≥9.0||Super wear-resistance, without any impurity, corrosion & high temperature resistance.|
|Stainless Steel Balls||≥6.0||Wear-resistant, general corrsion resistance, high temperature resistance.|
|Agate Balls||≥7.0||Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.|
|Alumina Balls||≥8.5||Wear-resistant, corrsion resistance and high temperature resistance.|
|Tungsten Carbide Balls||≥9.0||Super wear-resistance, without any impurity, corrosion & high temperature resistance.|
|Matching Solutions for Mill Jars & Balls|
|Items||Agate Balls||Alumina Balls||Stainless Steel Balls||Zirconia Balls||Tungsten Carbide Balls|
|Agate Mill jar||√|
|Corundum Mill Jar||▲||√||▲|
|Stainless Steel Mill Jar||√|
|Zirconia Mill Jar||▲||√|
|Nylon Mill Jar||▲||√|
|PTFE Mill Jar||√||▲|
|Polyurethane Mill Jar||√||▲|
|Tungsten Carbide Mill Jar||▲||√|
|√ means: most suitable ▲ means: suitable|
