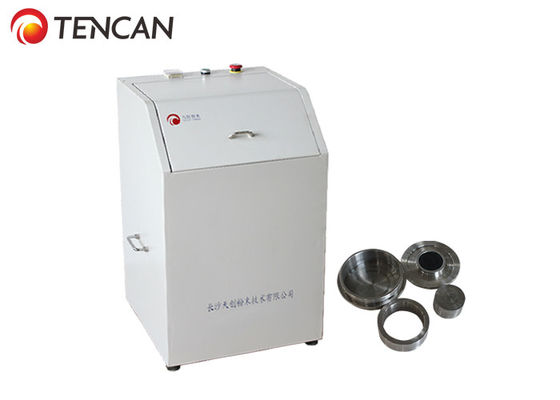

1.1KW 200 Meshes Laboratory Sample Grinders With Tungsten Carbide Bowls
|Place of Origin:||Hunan, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Plywood Case+Foam|
|Delivery Time:||10-15 working days after getting full payment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 sets per month|
|Product Name:||Laboratory Sample Grinder||Model No.:||GJ-1|
|Numbers Of Bowl:||1 Bowl||Max Capacity:||100g|
|Feed Size:||Less Than 13mm||Granularity Of Output:||80-200 Meshes|
1.1KW Laboratory Sample Grinders,
200Meshes Laboratory Sample Grinders,
Tungsten Carbide Bowls Vibrating Ball Mill
China Tencan One Bowl 1.1KW Lab Sample Grinder Machine With Manganese Steel / Tungsten Carbide Bowls
Lab Vibrating sample grinder is also called as sealing type sampling machine laboratory, sealed testing grinder, sealed timing grinder, sealed type pulverizing machine. which is mainly used for powder making of raw materials for laboratory testing. Vibratory sampling grinder is widely used in the industries of coal, coking, non-ferrous metal smelting, mining and other industries. For example, in the fields like coal, coke, gangue, all kinds of ore and so on.
The working mode of vibratory sample grinder: vibratory grinding type. In the bowl, the material is packed in the bowl, and the crushing ring and the crushing hammer are in the bowl. Materials are crushed and milled by the crushing ring and the crushing hammer in the high speed rotation withIn 2-6 minutes, and can be ground quickly into 80-200 meshes (0.175-0.075mm) micron powder samples, which are directly used for testing.
There are several bowls such as normal steel bowl, high manganese steel bowl, wear-resistant alloyed steel bowl, chrome steel bowl and tungsten carbide bowl. Selection of bowl often depends on hardness of material.
The material is placed in a sealed material bowl. There is a crushing hammer and a broken ring in the bowl. The motor drives the eccentric hammer to rotate at high speed. The material is made to be made of powder by vibration impact force and friction force.
1 Output sample is uniform in size, fast in speed, reliable in work and high in grinding efficiency.
2 Output sample can be directly used without sieving, simple process and high efficiency.
3 Reasonable design with full sealing, there is no dust pollution which meets requirements of environment protection.
4 Smooth operation, low noise, it meets requirements of safety production.
5. It is compact in structure, convenient in maintenance and convenient in operation.
6. 1-3 samples can be obtained at one time.
7. Durable and no sample loss because of its good sealing bowls.
8 Electronic timer is optional for the sampling grinder
|Technical Parameters of Lab Vibrating Sample Grinder|
|Model No.||Inlet Size
|No. of Bowls
