2x5L Jars Horizontal Roll Ball Mill For Micron Fine Powder Making 410rpm
|Place of Origin:||Hunan, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||One set|
|Delivery Time:||3-7 work days after receiving full payment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 sets per month|
|Product Name:||Horizontal Roll Jar Mill||Model No.:||GQM-2-5|
|Work Positions:||2 Positions||Total Volume:||10L|
|Max Capacity:||3.33L||Rotate Speed:||50-410 Rpm|
|Voltage:||220V-50Hz Ot 110V-60Hz||Power:||0.37KW|
5L Jars Roll Ball Mill,
Micron Fine Powder Roll Ball Mill,
410rpm Rolling Ball Mill

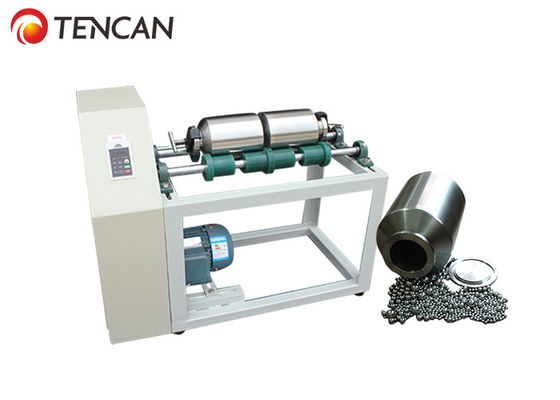

China Tencan 2*5L Mill Jars Horizontal Roll Jar Mill for Micron Fine Powder Making & Simple Operations
Horizontal Roll Jar Mill is a kind of powder milling equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling ball mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.
When the machine starts to work, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.
Horizontal Roll Jar Mill is mainly applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.
|Technical Parameters of Rolling Jar Laboratory Ball Mill|
|2 work station||950*480*685mm/59kgs||GQM-2-5||0.37||220V-50Hz/60Hz||50-410|
|4 work station||950*660*690mm/70kgs||GQM-4-5
|8 work station||950*660*960mm/106kgs||GQM-8-5||1.5||220V-50Hz/60Hz||50-410|
Accessories of Roll Mill Jars & Balls
Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.
|Recommendation For Matching Solutions About Mill Jars & Materials|
|Categories of Materials||Recommended Mill Jars|
|Soil and other Materials which are not allowed with any impurity||Agate mill jar|
|Metal & nonmetal materials which are not allowed with any impurity||Zirconia mill jar|
|High hardness materials like diamond, tungsten carbide||Tungsten carbide mill jar|
|Strong add & alkali materials or other materials at high temperature||PTFE mill jar|
|Iron ore materials with lower impurity sensitivity||304 Stainless steel mill jar|
|Pigment or other materials with later process under high temperature||Nylon mill jar|
|Aluminum materials like ceramic glaze||Corundum mill jar|
|Electronic materials like lithium battery||Polyurethane mill jar|
|Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
|Vacuum mill jar|
|References About Grinding Medias & Materials|
|Zirconia Balls||≥9.0||Super wear-resistance, without any impurity, corrosion & high temperature resistance.|
|Stainless Steel Balls||≥6.0||Wear-resistant, general corrsion resistance, high temperature resistance.|
|Agate Balls||≥7.0||Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.|
|Alumina Balls||≥8.5||Wear-resistant, corrsion resistance and high temperature resistance.|
|Tungsten Carbide Balls||≥9.0||Super wear-resistance, without any impurity, corrosion & high temperature resistance.|
|Matching Solutions for Mill Jars & Balls|
|Items||Agate Balls||Alumina Balls||Stainless Steel Balls||Zirconia Balls||Tungsten Carbide Balls|
|Agate Mill jar||√|
|Corundum Mill Jar||▲||√||▲|
|Stainless Steel Mill Jar||√|
|Zirconia Mill Jar||▲||√|
|Nylon Mill Jar||▲||√|
|PTFE Mill Jar||√||▲|
|Polyurethane Mill Jar||√||▲|
|Tungsten Carbide Mill Jar||▲||√|
|√ means: most suitable ▲ means: suitable|
