Hengnuo 3-18N / 3-18R Benchtop Centrifuge 50ml Middle Sized High Speed Centrifuge
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HENGNUO |
| Model Number: | 3-18N/3-18R |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Unit |
|---|---|
| Price: | $1000.00-$5000.00/set |
| Packaging Details: | Carton |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Product Name: | Middle-sized Bench-top High Speed Centrifuge | Model: | 3-18N/3-18R |
|---|---|---|---|
| Max Speed: | 18500 Rpm | Max Capacity: | 4*100ml |
| Max Relative Centrifugal Force: | 25250*g | OEM: | Acceptable |
| High Light: | high speed refrigerated centrifuge,benchtop mini centrifuge,Benchtop Centrifuge 50ml |
||
Product Description
Hengnuo 3-18N / 3-18R Benchtop Centrifuge 50ml Middle Sized High Speed Centrifuge
Middle-sized Bench-top High Speed Centrifuge
Model No. 3-18N (Normal Temperature)/3-18R (Refrigerated)
Product Introduction
- Microcomputer control, AC variable frequency motor drive.
- Small volume and compact structure save laboratory space.
- Adopting new composite material as rotor, super light, high strength,slow heat conduction, strong corrosion resistance, fast speed up and down.
- Large-screen LCD display, simple and intuitive for operation.
- Automatically calculate and set RCF value of centrifuge, rotation speedand centrifugal force are displayed synchronously, and parameters can bechanged without shutdown during operation
- Using electronic door locks, with various protections such as over-speed,over-temperature, unbalance, and electronic door locks to enhance safety.
- It can be equipped with multiple capacity rotors for meeting differentexperimental requirements of customers.
Applications Fields:
Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Technical Parameters
| Model No. | 3-18N(Normal Temperature) | 3-18R(Refrigerated) |
| Max Rotation Speed | 18500rpm | |
| Max Relative Centrifugal Force | 25250*g | |
| Maximum Capacity | 4*100ml | |
| Timing Range | 1min～99min | |
| Total Noise | < 65dB(A) | |
| Total Power | 450W | 1200W |
| Diameter of Centrifugal Cavity | 420mm | 320mm |
| Temperature Setting Range | / | -20℃～40℃ |
| Temperature Accuracy | / | ±1.0℃ |
| Power Supply | AC 220±22V 50Hz 10A | AC 220±22V 50Hz 16A |
|
Outline Dimensions (L*W*H) |
545×468×350(mm) | 630×470×340(mm) |
| Net Weight | 45kgs | 75kgs |

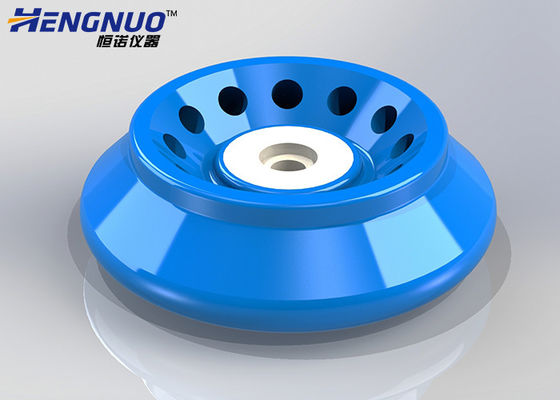

Applicable Rotors for 3-18N/3-18R
|
#1 Angle Rotor |
Single tube capacity: 1.5ml Total capacity: 12*1.5ml Max speed: 18500rpm Max relative centrifugal force:2525*g |
#2 Angle Rotor |
Single tube capacity: 5ml Total capacity: 10*5ml Max speed: 15000rpm Max relative centrifugal force:15300*g |
|
#3 Angle Rotor |
Single tube capacity: 1.5ml Total capacity: 24*1.5ml Max speed: 14000rpm Max relative centrifugal force: 18575*g |
#4 Angle Rotor |
Single tube rotor: 10ml Total capacity: 12*10ml Max speed: 13000rpm Max relative centrifugal force: 17370*g |
|
#5 Angle Rotor |
Single tube capacity: 15ml Total capacity: 12*15ml Max speed: 12000rpm Max relative centrifugal force: 15455*g |
#6 Angle Rotor |
Single tube capacity: 1.5ml Total capacity: 36*1.5ml Max capacity: 15000rpm Max relative centrifugal force: 20753*g |
|
#7 Angle Rotor |
Single tube capacity: 50ml Total capacity: 6*50ml Max speed: 12000rpm Max relative centrifugal force: 15805*g |
#8 Angle Rotor |
Single tube capacity: 50ml cone Total capacity: 6*50ml cone Max speed: 11000rpm Max relative centrifugal force: 13274*g |
|
#9 Angle Rotor
|
Single tube capacity: 100ml Total capacity: 4*100ml Max speed: 11000rpm Max relative centrifugal force: 13000*g |
#10 PCR Rotor
|
Single tube capacity: 0.2ml PCR tube Total capacity: 4/8*0.2ml PCR tube Max speed 15000rpm Max relative centrifugal force: 17357*g |
|
#11 Angle Rotor |
Single tube capacity: 0.25-1ml capillary Total capacity: 24*(0.25-1ml) Max speed: 12000rpm Max relative centrifugal force: 10142*g |
#12 Angle Rotor |
Single tube capacity: 1.5ml Total capacity: 48*1.5ml Max speed: 12000rpm Max relative centrifugal force: 14890*g |
