• Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature
Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature

Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature

Product Details:

Place of Origin: China
Brand Name: HENGNUO
Certification: CE, ISO9001
Model Number: 4-5N (Normal Temperature)

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 pcs per month
Get Best Price Contact Now

Detail Information

Maximum Rotation Speed: 100-5500rpm Time Setting Range: 1min~99min
Max Capacity: 4*750ml Or 144*5ml Blood Collection Tube Dimensions: 545×468×350(mm)
Net Weight: 50kg Condition: New
Warranty: One Year After-sales Service Provided: Online Support
Total Noise: < 65dB(A) Diameter Of Centrifugal Cavity: 420mm
Total Power: 800W
High Light:

universal centrifuge

,

high speed refrigerated centrifuge

,

Medical Centrifuge Machine 4N

Product Description

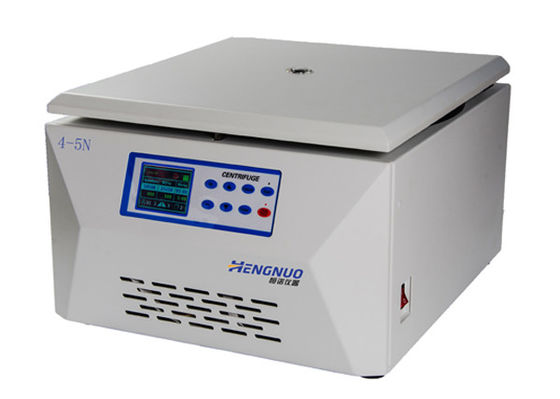

Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature



Bench-top Large Capacity Low-speed Centrifuge



Bench-top Large-capacity Low-speed Centrifuge

4-5N (Normal Temperature)/4-5R (Refrigerated)



Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature 0

Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature 1

Bench Top Large Capacity Low Speed Medical Centrifuge Machine 4-5N Normal Temperature 2

Product Introduction



1. Bench-top large-capacity low-speed centrifuge is specially designed for clinical medical or cell culture laboratories, providing a variety of rotors, racks, and adapters.

2. Microcomputer control, maintenance-free variable frequency motor drive, preset speed, centrifugal force, temperature (refrigerator) and time

3. It can be equipped with different capacity rotors, max capacity can be upto750ml centrifuge bottles or 144 blood collection tubes.

4. Simultaneous display of centrifugal force and speed without switching, easy to record.

5. It starts timing Only reaching the set speed to ensure the centrifugal effects.

6. 4-5R refrigerated centrifuge is equipped with imported compressors unit, using environmentally friendly fluorine-free refrigerants.

7. Freezer has automatic pre-cooling function, which keeps constant temperature of centrifugal cavity and rotors under the static state.



Technical Parameters





Model No. 4-5N(Normal Temperature) 4-5R ( Refrigerated)
Max Rotation Speed 100-5500rpm
Max Relative Centrifugal Force 5010×g
Max Total Capacity 4*750ml or144*5ml Blood collection tube
Timing Range 1min~99min
Total Noise <65dB(A)
Total Power 800W 1500W
Diameter of Centrifugal Cavity 420mm 420mm
Temperature Setting Range / -20℃~40℃
Temperature Accuracy / ±1.0℃
Power Supply AC 220±22V 50Hz 10A AC 220±22V 50Hz 16A

Outline Dimensions

(L*W*H)

545×468×350(mm) 645×730×425(mm)
Net Weight 50kgs 95kgs



Rotor Parameters



微信图片_20200110152603



#1 Angle Rotor

Single tube capacity: 10ml/15ml

Total capacity: 12*(10ml/15ml)

Max speed: 5000rpm

Max relative centrifugal force: 5010*g

微信图片_20200110152839



#2 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max capacity: 4000rpm

Max relative centrifugal force: 2250*g

057



#3 Horizontal Rotor

Single tube capacity:750ml

Total capacity: 4*750ml

Max speed: 4000rpm

Max relative centrifugal force: 3580*g

01

#4 Enzyme plate rotor

Single tube capacity: 96/386 hole plate

Total capacity: 4*2*96 hole plate

Max speed: 4000rpm

Max relative centrifugal force: 3550*g

056



#5 Horizontal Rotor

Single tube capacity: 500ml

Total capacity: 4*500ml

Max speed: 4000rpm

Max relative centrifugal force: 3580*g

SR 4X24X5ml



#6 Horizontal Rotor

Single tube capacity: 5ml/7ml

Total capacity: 96*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

96孔脱帽_



#7 Horizontal Uncap Rotor

Single tube capacity: 2ml/5ml/7ml

Blood collection tube

Total capacity: 96*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3580*g

SR 6x250ml

#8 Horizontal Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

02



#9 Horizontal Rotor

Single tube capacity: 250ml

Total capacity: 4*250ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

10-1



#9 Horizontal Rotor

Single tube capacity: 10ml/15ml

Total capacity: 32*(10ml/15ml)

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

008

#11 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 8*(50ml/100ml)

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

64孔&72孔脱帽吊篮_副本













#12 Horizontal Rotor

Single tube capacity: 5ml/7ml

Total capacity: 48/64/72*5ml

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

002



#13 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 4*50ml/100ml

Max speed: 5000rpm

Max relative centrifugal force: 4390*g

01



#14 Enzyme plate Rotor

Single tube capacity: 96/384 hole plate

Total capacity: 2*2*96 hole plate

Max speed: 4000rpm

Max relative centrifugal force: 2300*g

005-1

#15 PRP Rotor

Single tube capacity: 50ml injector

Total: capacity: 4*50ml

10ml/20ml adapter for optional

Max speed: 5000rpm

Max relative centrifugal force: 4390*g

01



#16 Uncap Rotor

Single tube capacity: 2ml/5ml/7ml

Blood collection tube (only 2ml uncap)

Total capacity: 48*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g
