Product Details:

Place of Origin: China
Brand Name: HENGNUO
Certification: CE, ISO9001
Model Number: 3-5N(Normal Temperature)

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 pcs per month
Get Best Price Contact Now

Detail Information

Maximum Rotation Speed: 5000rpm Time Setting Range: 0min~99min59s
Max Capacity: 4*250ml Dimensions: 545×468×350(mm)
Net Weight: 42kg Condition: New
Warranty: One Year After-sales Service Provided: Online Support
Total Noise: < 65dB(A)
Highlight:

universal centrifuge

,

benchtop mini centrifuge

,

Medical Centrifuge 5N

Product Description

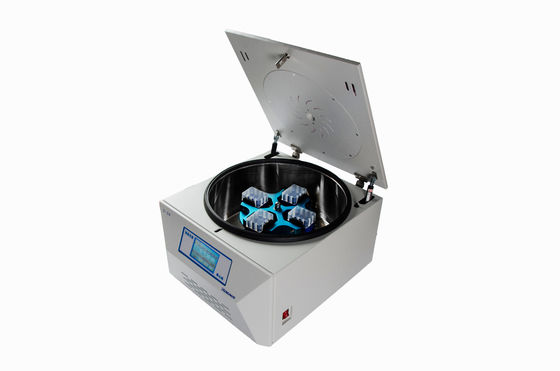

Benchtop Low Speed Centrifuge , Medical Centrifuge Model No 3-5N Normal Temperature

Middle-sized Bench-top Low Speed Centrifuge
Model No. 3-5N (Normal Temperature)


Product Introduction
1. 5-inch touch screen control, easy to operate.
2. T45 cold rolled steel body, 304 stainless steel centrifugal cavity, safety and small vibration
3. It is equipped with electronic door lock.
Unlocking mode for option: automatic unlocking or manual unlocking.
4. High power DC brushless motor has maintenance-free for life with long service life.
5. Two-level shock absorption has good auto-balance function, safety and small vibration
6. With functions of gradient centrifugation, differential centrifugation, instant centrifugation and timing centrifugation, you can set required parameters freely to facilitate more required experiments
7. You set parameters such as speed, centrifugal force, time, speed up and down, etc., and it automatically calculates RCF value, rotation speed and centrifugal force, which can be displayed simultaneously without switching, simple and intuitive. You can modify parameters randomly without shutdown during operation.
8. A variety of stainless steel pipe racks are available for easy replacement. The instrument is widely used in clinical medicine, genetic biology, cytology and other fields, and has medium-sized volume, good compatibility, suitable for small and medium-sized multifunctional experiments.

Technical Parameters



Model No.3-5N(Normal Temperature)
Max Rotation Speed5000rpm
Max Relative Centrifugal Force4390*g
Max Capacity4*250ml
Timing Range0min~99min59s
Total Noise< 65dB(A)
Total Power550W
Diameter of Centrifugal Cavity420mm
Speed Accuracy±20rpm/min
Power SupplyAC 220±22V 50Hz 10A

Outline Dimensions
(L*W*H)

545×468×350(mm)
Net Weight42kgs


Rotor Parameters



微信图片_20200110152603



#1 Angle Rotor



Single tube capacity:10ml/15ml

Total capacity:12*(10ml/15ml)

Max speed: 5000rpm

Max relative centrifugal force: 5010*g

微信图片_20200110152844


#2 Angle Rotor



Single tube capacity:10ml

Total capacity:24*10ml

Max speed: 4000rpm

Max relative centrifugal force: 2250*g

微信图片_20200110152839

#3 Angle Rotor



Single tube capacity:50ml

Total capacity:6*50ml

Max speed: 4000rpm

Max relative centrifugal force: 2250*g

10-1



#4 Horizontal Rotor



Single tube capacity:10ml/15ml

Total capacity: 32*(10ml/15ml)

Max capacity: 4000rpm

Max relative centrifugal force: 2810*g

002



#5 Horizontal Rotor



Single tube capacity: 50ml/100ml

Total capacity: 4*(50ml/100ml)

Max speed: 5000rpm

Max relative centrifugal force: 4390*g

64孔&72孔脱帽吊篮_副本
















#6 Horizontal Rotor



Single tube capacity:5ml/7ml

Total capacity:48/64/72*5ml

Max speed: 4000rpm

Max relative centrifugal force: 2810*g




 IMG_262




#7 Horizontal Rotor



Single tube capacity:250ml

Total capacity: 4*250ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

008



#8 Horizontal Rotor



Single tube capacity: 50ml/100ml

Total capacity: 8*50ml/100ml

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

01



#9 Enzyme plate rotor





Single tube capacity: 96/384 hole plate

Total capacity: 2*2*96 hole plate

Max capacity: 4000rpm

Max relative centrifugal force: 2300*g

01



#10 Horizontal uncap rotor



Single tube capacity: 2ml/5ml/7ml

Blood collection tube (only 2ml uncap)

Total capacity: 48*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

005-1



#11 PRP Rotor



Single tube capacity: 50ml injector

Total capacity: 4*50ml

10ml/20ml adapter for optional

Max speed: 5000rpm

Max relative centrifugal force: 4390*g
