1L Stainless Steel Mill Jars, planetary ball mill accessories

1L Stainless Steel Mill Jars, planetary ball mill accessories

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Stainless Steel Jar Total Volume: 1L
High Light:

lab ball mill


laboratory ball mill machine

Product Description



planetary ball mill accessories 50ml Mill Jars




Planetary ball mills are smaller than common ball mills and mainly used in laboratories for grinding sample material down to very small sizes. A planetary ball mill consists of at least one grinding jar which is arranged eccentrically on a so-called sun wheel. The direction of movement of the sun wheel is opposite to that of the grinding jars (ratio: 1:-2 or 1:-1.5 ). The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called coriolis forces. The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies. The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill.


Working Principle


TENCAN Mini Laboratory ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.




Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography


Features of Tencan 0.2L 110V or 220v Mini Laboratory Ball Mill


1) Extreme speeds for particularly high final fineness down to the submicron range.
2) Different speed ratios available.
3) Grinding jar volume from 12ml to 100ml, in 6 different materials.
4) Suitable for long-term trials and continous use.
5) Automatic direction reversal helps to avoid agglomerations.


Technical Parameters


Main Parameters of 0.2L 110V or 220v Mini Laboratory Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
Total Timing
Alternating Run Time of Forward & Reversal Rotation
XQM-0.2A 0.09 220V-50Hz 250*425*280 45-435 90-1160 1-9999 1-9999



Accessories of 0.2L 110 - 220v Mini Planetary Ball Mill


Besides the planetary ball mill machine, we also provide all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina ceramic mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jars etc.

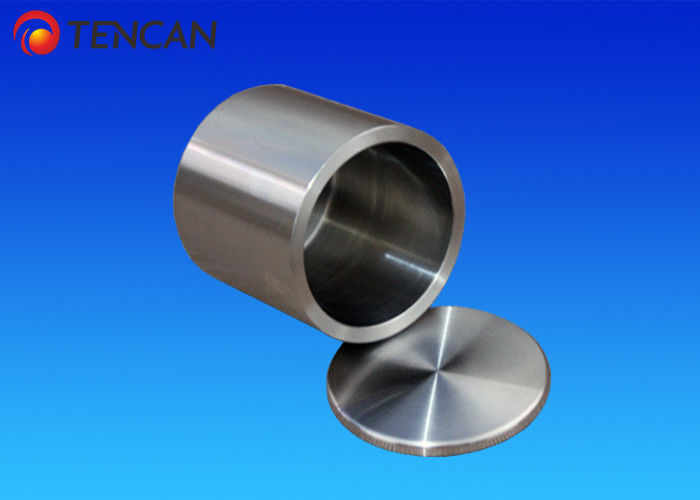

1L Stainless Steel Mill Jars, planetary ball mill accessories 0


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


1L Stainless Steel Mill Jars, planetary ball mill accessories 1
