Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: GQM-8-5

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days after receiving full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Roll Jar Mill Model No.: GQM-8-5
Voltage: 220V-50Hz Power: 1.5KW
Rotate Speed: 50-410 Rpm Speed Control: Frequency Control
Total Volume: 40L Max Capacity: 13.2L
High Light:

roller ball mill

,

jar mill

Product Description

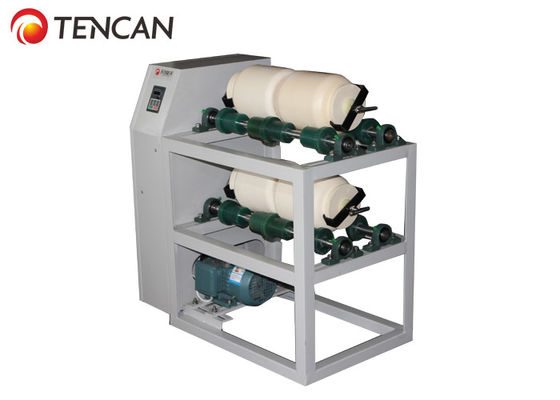

Multiple Work Positions Roll Jar Mill with 8*5L Mill Ports in Good performance and High Efficiency



Overview



Roll Jar Mill  is a kind of powder milling equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling ball mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.



Working Principle



When the machine starts to work, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.



Applications



Roll Jar Mill  is mainly applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.



Features



1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.



Technical Parameters



Technical Parameters of Roll Jar Mill
Category Dimensions/WT
(mm)
Model No. Motor
Power(kw)
Voltage Rotate Speed
(rpm)
2 work station 950*480*685mm/59kgs GQM-2-5 0.37 220V-50Hz/60Hz 50-410
1130*550*690mm/80kgs GQM-2-15 1.1 220V-50Hz/60Hz 40-365
13506550*690mm/92kgs GQM-2-20 1.5 220V-50Hz/60Hz 40-365
4 work station 950*660*690mm/70kgs GQM-4-5
Single Layer
0.75 220V-50Hz/60Hz 50-410
950*480*870mm/92kgs GQM-4-5
Double Layers
0.75 220V-50Hz/60Hz 50-410
1130*800*690mm/95kgs GQM-4-15 1.5 220V-50Hz/60Hz 40-365
1350*820*690mm/122kgs GQM-4-20 2.2 380V-50Hz/60Hz 40-340
8 work station 950*660*960mm/106kgs GQM-8-5 1.5 220V-50Hz/60Hz 50-410
1130*800*690mm/152kgs GQM-8-15 2.2 380V-50Hz/60Hz 40-365



Accessories of Roll Mill Jars & Balls



Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.



Multiple Work Positions Rolling Jar Mill , High Efficiency Lab Jar Mill 0

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



Multiple Work Positions Rolling Jar Mill , High Efficiency Lab Jar Mill 1



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
