70-670rpm Square Type Planetary Ball Mill With 1.5L Jar Volume
Product Details:
| Place of Origin: | Changsha, China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywppd Case & Foam |
| Delivery Time: | 3-7days |
| Payment Terms: | T/T, Western union |
| Supply Ability: | 450 Sets per Month |
|
Detail Information |
|||
| Working Model: | 2 Or 4 Pots One Time | Voltage: | 220V Or 110V |
|---|---|---|---|
| Product Name: | Small Lab Planetary Ball Mill | Rotate Speed: | 70-670rpm |
| Power: | 0.75kw | Max Production Capacity: | 1.98L |

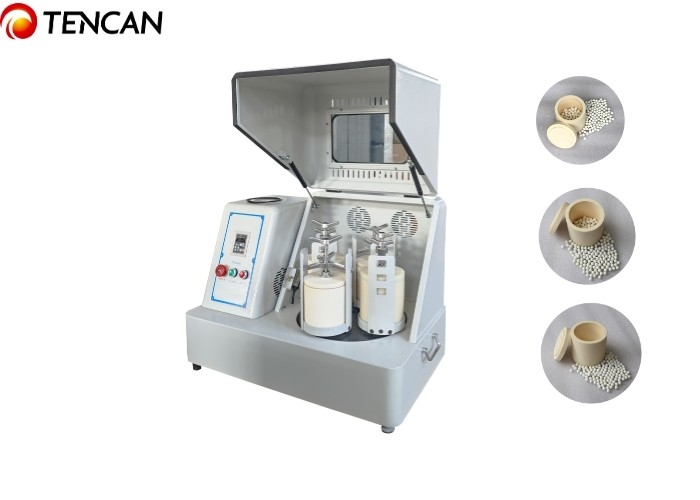

| Output Size: | Minimum 0.1μm | Accessories: | Corundum Jars And Aluminium Balls |
| High Light: | 670rpm Square Planetary Ball Mill,1.5L Jar Planetary Ball Mill,Square Planetary Vertical Ball Mill |
||
Product Description

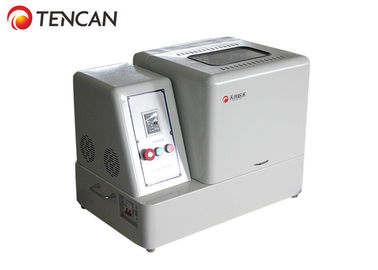

70-670rpm Square-type Planetary Milling Ball Mill with 1.5L Jar Volume
Product Description:
Laboratory Planetary Ball Mill: The Essential Device for High-Tech Materials Milling
The Laboratory Planetary Ball Mill is a necessary tool for various applications such as fine grinding, powder mixing, nano powder making, new product development, and small batch production of high-tech materials. This innovative equipment from Tencan boasts of several advantages and features, including small volume, high efficiency, low noise, and complete functions, making it the preferred choice for R&D institutions, universities, and enterprises' laboratories in obtaining fine powder samples.

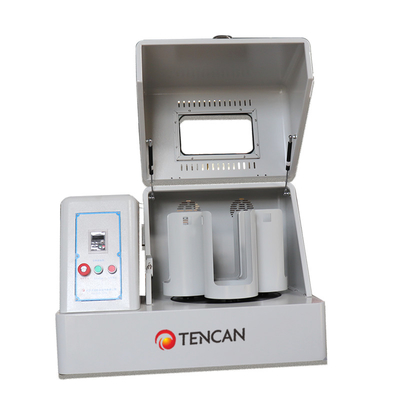

The Tencan Laboratory Planetary Ball Mill is designed with four working positions, allowing users to process four samples simultaneously. If equipped with vacuum ball mill jars for grinding, this machine can also operate under a vacuum environment.
Featuring four working positions, the Tencan Laboratory Planetary Ball Mill can accommodate two or four mill jars on one turntable. As the turntable rotates, the jar axis undergoes planetary movements at high speed, resulting in strong impacts between the balls and materials inside the jars. This high-speed movement effectively grinds the materials into fine powder. The versatile machine can also perform both dry and wet grinding methods, enabling users to grind different materials to the smallest granularity of 0.1μm or even nano scale powder.
Trust the Tencan Laboratory Planetary Ball Mill to provide you with efficient, precise, and reliable results for all your high-tech materials milling needs.
Features:
- Product Name: Planetary Ball Mill
- Power: 0.75kw
- Output Size: Minimum 0.1μm
- Festure: High Speed And High Efficiency
- Jar Volume: Each 1.5L
- Rotate Speed: 70-670rpm
- Ball Mill Grinding Machine
- High-Energy Ball Mill
- Ball Milling Machine
Technical Parameters:
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Applications:
The Laboratory Planetary Ball Mill is a versatile tool used in a variety of industries such as geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, and environmental protection. Its wide range of applications makes it a valuable equipment in production processes involving electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalysts, phosphors, long afterglow phosphors, rare earth polishing powder, and electronic glass.
Moreover, this ball mill is also suitable for producing powder for fuel cells, Zinc Oxide varistors, piezoelectric ceramics, nano materials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite, and more. With its wide range of applications, the Laboratory Planetary Ball Mill is an essential tool in many industries.
Customization:
Our Planetary Ball Mill, model XQM-6, is proudly manufactured in Changsha, China by TENCAN. It is certified with ISO CE and has a maximum production capacity of 1.98L. Our minimum order quantity is 1 set and the price is negotiable. The packaging details include a Plywppd Case and Foam for safe transportation.
We offer fast delivery within 3-7 days and accept payment through T/T or Western Union. With a supply ability of 450 sets per month, we ensure timely delivery to meet the demands of our customers. Our Planetary Ball Milling Machine is specially designed for efficient grinding and has a feeding size of 0.1 to 10mm.
At TENCAN, we pride ourselves in providing excellent customized service to our customers. We understand the importance of meeting specific requirements and offer tailor-made solutions to meet your needs. Our key words for this product include Milling Ball Mill, Grinding Planetary Ball Mill, and Ball Mill Grinding Machine.
Packing and Shipping:
The Planetary Ball Mill is packaged in a sturdy wooden box to ensure safe transportation. Inside the box, the mill is placed in a protective foam layer and all components are securely packed with bubble wrap to prevent any damage during transit.
The package will be shipped via a reliable courier service, such as DHL or FedEx, to ensure timely and secure delivery. Customers can also choose to arrange their own shipping if preferred.
For international shipments, the necessary customs documentation will be provided to ensure smooth clearance.
Upon arrival, customers should carefully inspect the package for any signs of damage and report it to the courier immediately if any issues are found.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is TENCAN. - Q: What is the model number of this product?
A: The model number of this product is XQM-6. - Q: Where is this product manufactured?
A: This product is manufactured in Changsha, China. - Q: Does this product have any certification?
A: Yes, this product is certified with ISO CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
- Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable. - Q: How is this product packaged?
A: This product is packaged in Plywood Case & Foam. - Q: How long is the delivery time for this product?
A: The delivery time for this product is 3-7 days. - Q: What are the payment terms for this product?
A: The payment terms for this product are T/T and Western Union. - Q: What is the supply ability of this product?
A: The supply ability of this product is 450 sets per month.
