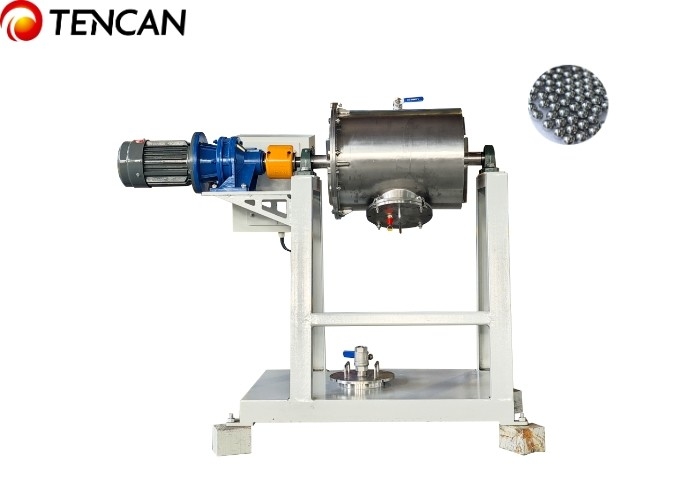

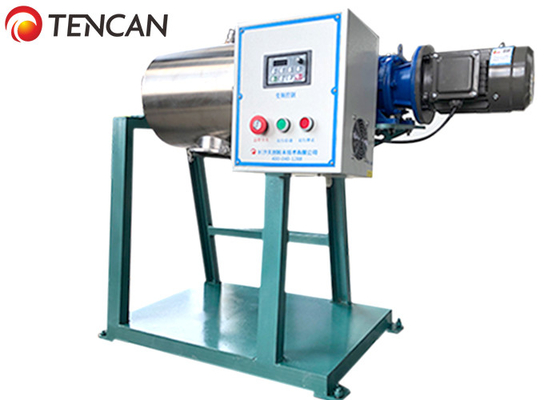

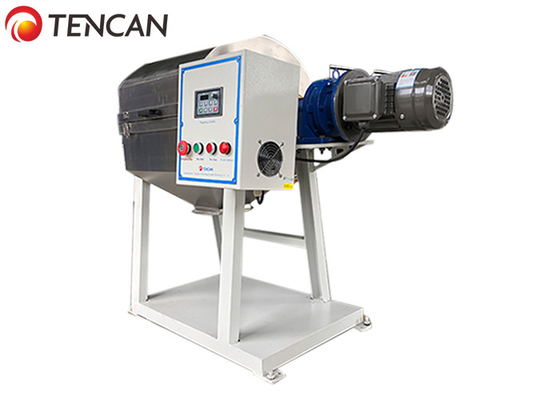

0.75KW 220V Rolling Ball Mill Output 5 kg/h 10.5Kg/h Suitable for Wet Grinding
Product Details:
| Place of Origin: | Hunan，China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | QM-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood Case with Foam |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Rotate Speed: | 20-60rpm | Weight: | 32kg |
|---|---|---|---|
| Feeding Size (mm): | 0.1 - 10 Mm | Feature: | Without A Cover(cheaper) |
| Output (kg/h): | 5 - 10.5Kg/h | Power: | 0.75KW |
| Warranty: | 1 Year | Application: | More Suitable For Wet Grinding |
| High Light: | Wet Grinding Rolling Ball Mill,5kg/h Rolling Ball Mill,220V Lab Jar Rolling Mill |
||
Product Description
0.75KW 220V Roll Ball Mill Output kg/h 5 10.5Kg/h Suitable for Wet Grinding
Product Description:
The Light Roll Ball Mill, also known as the Rolling Machine Altar, is a laboratory and small batch production equipment used for ultra-fine grinding and mixing. Its sleek design, compact structure, easy operation, high efficiency, and uniform granularity make it a preferred choice for scientific research, teaching, experiments, and production. It finds widespread application in industries such as electronic materials, magnetic materials, biological medicine, ceramic glaze, metal powder, non-metallic minerals, and new materials.
The machine achieves optimal grinding results by adopting a design with a rotating speed, where the mill jar is dragged to rotate by a rubber roller. The balls inside the jar create an inclined flow movement, dispersing the materials and grinding them into micron powder. The timing control panel allows for pausing and cumulative timing, giving users the flexibility to set working time as needed. This saves time, labor, and makes the machine easy to operate.
During operation, the grinding media and the materials inside the tank are rotated to a certain height. Due to gravity, they fall from the tube wall and are crushed by the impact, friction, and shearing action of the grinding media's rolling and sliding. The machine operates in a stable and reliable condition, with options for dry or wet grinding depending on the materials and desired discharging method.
Features:
The machine boasts stable operation, high efficiency, low noise levels, and is environmentally friendly.
The machine is suitable for grinding both dry and wet materials, making it suitable for a wide range of hard materials. It can also be used for both rough and fine grinding, as well as mixing different materials.
The machine comes equipped with a pouring device and has the capability to automatically separate powder and ball media, making it easy to output powder. It also includes a safety cover to ensure purity and prevent pollution.
The machine is highly resistant to abrasion, ensuring efficient and long-lasting grinding.
With a range of liner jars available, including alloyed steel, stainless steel, abrasion-resisting polyurethane, corundum ceramic, and zirconia, customers have the option to choose a model with a volume ranging from 20L to 2000L to suit their specific needs.
Technical Parameters:
| Product Name | Rolling Ball Mill |
|---|---|
| Warranty | 1 Year |
| Output (kg/h) | 5 - 10.5Kg/h |
| Weight | 32kg |
| Output Size (mesh) | >=300 Mesh |
| Feeding Size (mm) | 0.1 - 10 Mm |
| Application | More Suitable For Wet Grinding |
| Rotate Speed | 20-60rpm |
| Power | 0.75KW |
| Feature | Without A Cover(cheaper) |
Applications:
The Rolling Ball Mill, also known as Rotary Ball Mill or Rotating Ball Mill, is a versatile machine used for fine grinding, mixing, and homogenizing of materials. It is commonly used in laboratories for research and development purposes, but it can also be found in industries such as ceramics, chemical engineering, and pharmaceuticals.
The Rolling Ball Mill is designed and manufactured by TENCAN, a leading brand in the field of laboratory equipment. With a model number of QM-30, it is made in Hunan, China and has obtained ISO and CE certification, ensuring its quality and safety. The minimum order quantity is 1 set, and the price is negotiable depending on the order quantity. It is packaged in a sturdy plywood case with foam for protection during transportation and delivery time is usually 10-15 days. Payment can be made through T/T or L/C, and the supply ability is 150 sets per month.
| Product Specifications | |
|---|---|
| Brand Name: | TENCAN |
| Model Number: | QM-30 |
| Place of Origin: | Hunan, China |
| Certification: | ISO CE |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Plywood Case with Foam |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 150 Set/Sets per Month |
| Feature: | Without A Cover (cheaper) |
| Power: | 0.75KW |
| Weight: | 32kg |
| Feeding Size (mm): | 0.1 - 10 Mm |
| Rotate Speed: | 20-60rpm |
The Rolling Ball Mill is designed to be operated without a cover, which makes it a cost-effective option compared to other models. It has a power of 0.75KW and a weight of 32kg, making it easy to move and transport. The feeding size range is from 0.1 to 10mm, and the rotate speed can be adjusted from 20 to 60rpm according to the grinding requirements.
The grinding process of the Rolling Ball Mill is efficient and precise, providing fine grinding results for various materials. It can handle both dry and wet grinding, making it suitable for a wide range of applications. The grinding batch can be adjusted as needed, and the grinding cycle can be repeated for consistent results. The grinding media, such as grinding jars and grinding balls, are made of high-quality materials to ensure durability and high performance. The grinding sample is evenly distributed and ground during the grinding time, resulting in a fine and homogenous powder.
Overall, the Rolling Ball Mill is a reliable and versatile product that can meet the grinding needs of both laboratory and industrial settings. Its compact size, efficient grinding process, and cost-effectiveness make it a popular choice among researchers and professionals. Contact TENCAN today to learn more about the Rolling Ball Mill and how it can benefit your grinding needs.
FAQ:
- Q: What is the brand name of this product?
A: The brand name is TENCAN. - Q: What is the model number of this product?
A: The model number is QM-30. - Q: Where is this product manufactured?
A: This product is manufactured in Hunan, China. - Q: Does this product have any certification?
A: Yes, this product is certified with ISO and CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 1 set. - Q: Is the price of this product negotiable?
A: Yes, the price is negotiable. - Q: How is this product packaged?
A: This product is packaged in a plywood case with foam. - Q: How long is the delivery time for this product?
A: The delivery time is 10-15 days. - Q: What are the available payment terms for this product?
A: The available payment terms are T/T and L/C. - Q: What is the supply ability of this product?
A: The supply ability is 150 sets per month.
