Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L

China Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L supplier
Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L supplier Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L supplier Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L supplier Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L supplier

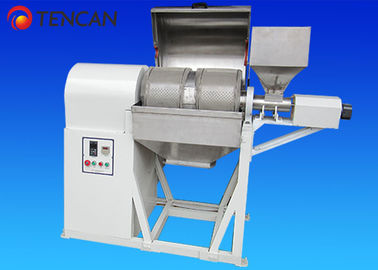

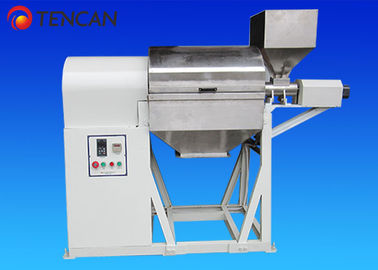

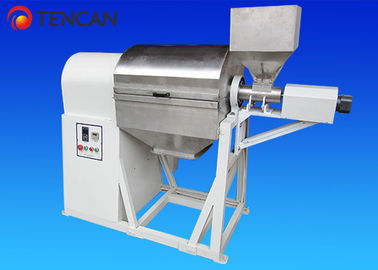

Large Image :  Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: QSM-30L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood Case + Foam
Delivery Time: 20-30 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Grinding & Sieving Machine Model No.: QSM-30L
Total Volume: 30L Max Load Volume: 10.5L
Voltage: 220V-50Hz Power: 0.75KW
Rotate Speed: 20-60 Rpm Speed Control: Frequency Control

30-2000L Industrial Grinding & Sieving Machine Continuous Grinding & Sieving Without Non-stop



Overview



Grinding & sieving machine consists of ball mill drum, sieving system, feeding system, collecting system. Materials can be crushed and sieved in the process of grinding, output powders which reach to the requested granularity shall be sieved and discharged through the sieving screen system, discharged powder shall be collected by the collection system. Materials are continuously put into the drum through the feeding system. Grinding & sieving machine is particularly suitable for requirement which needs to crush a specific granularity of output powder such as getting a purpose range of 200-300 meshes of output powder. Additionally, grinding & sieving machine also greatly improves grinding efficiency and reduces unnecessary ball milling.

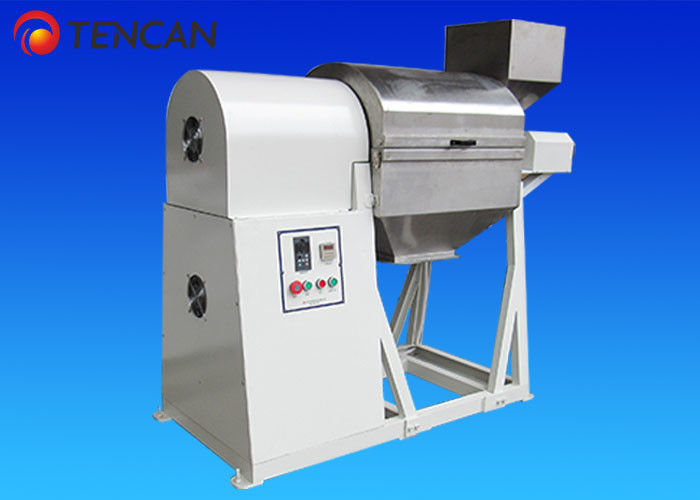

Industrial Grinding and Sieving Machine for Continuous Grinding / Sieving 30 - 2000L



Working Principle



When grinding & sieving machine works, materials and grinding media in the cylinder are rotated to a certain speed together with the grinding tank, they are falling down along with the parabolic drop from the cylinder wall due to gravity. Materials are crushed and sheared by impact, friction and shearing caused by rolling and slipping of the medias. Grinding & Sieving machine can be widely used in industries such as electronic materials, magnetic materials, biomedical, ceramic glaze pulp, non-metallic mineral, new materials and so on.







Features



1. Running smoothly, energy efficient, low noise, no pollution;

2. Suitable for dry or wet grinding, it can be used for grinding all kinds of materials at any hardness, it also can be suitable for coarse or fine powder grinding and materials mixing.

3. There is automatic discharging system for option, balls and materials can be separated automatically, and output powder discharging is extremely convenient;

4. Its protective jacket keeps materials in high purity and low pollution;

5. Anti-wear, and high efficiency in grinding;

6. It can be lined with available materials for option such as alloy steel, stainless steel, high wear-resistant polyurethane, corundum ceramics, zirconia and so on, specifications can be customized from 25L-2500L according to buyer’s requests.



Technical Parameters



Technical Parameters of Grinding & Sieving Machine
Model No. Volume
(L)
Rotate Speed
(rpm)
Max Load Volume
(L)
Power Supply Available
Grinding Cylinder
Feed Size
(mm)
Output Granularity
(mesh)
Speed Control
QSM-30L 30 20-60 105 220V/0.75KW Carbon Steel
Stainless Steel
Nylon Liner
Alumina Ceramic Liner
PU Liner
PTFE Liner
≤20 ≥300 Frequency Converter
or Fixed Set Speed at Buyer's Option
QSM-50L 50 20-50 17.5 220V/1.5KW ≤20 ≥300
QSM-100L 100 20-45 35 220V/2.2KW ≤20 ≥300
QSM-200L 200 20-40 70 380V/4KW ≤20 ≥300
QSM-300L 300 20-38 105 380V/5.5KW ≤20 ≥300
QSM-500L 500 20-36 175 380V/7.5KW ≤20 ≥300
QSM-1000L 1000 20-34 350 380V/11KW ≤20 ≥300
QSM-2000L 2000 20-34 700 380V/22KW ≤20 ≥300
