Vacuum Jar And SS. Balls Full Direction Planetary Ball Mill With 0.66L Max Capacity
Product Details:
| Place of Origin: | Changsha，Hunan， China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | QXQM-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton & Foam |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western union |
| Supply Ability: | 200 Sets per Month |
|
Detail Information |
|||
| Key Word: | Full-directional Planetary Ball Mill | Working Model: | 2 Or 4 Pots One Time |
|---|---|---|---|
| Power: | 0.75KW | Feeding Size: | Less Than 10mm |
| Warranty: | 1 Year | Voltage: | 220V-50Hz |
| Production Ability: | 0.1-0.66kg/h | Rotate Speed: | 70-670rpm |
| High Light: | Full Direction Planetary Mill,Vacuum Jar Planetary Ball Mill,Full Direction Laboratory Ball Mill |
||
Product Description

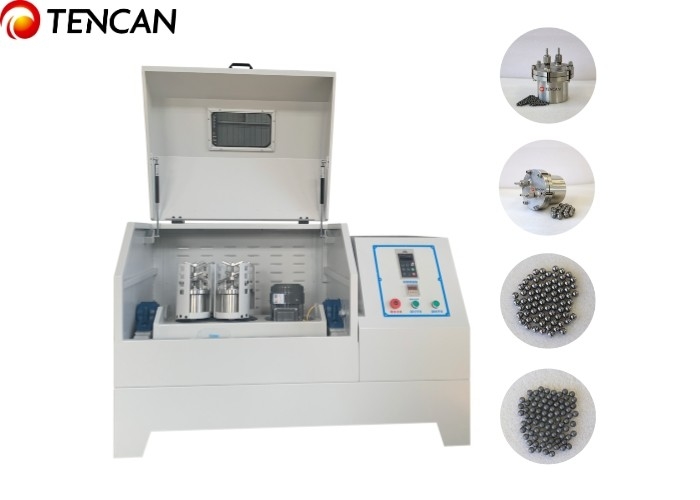

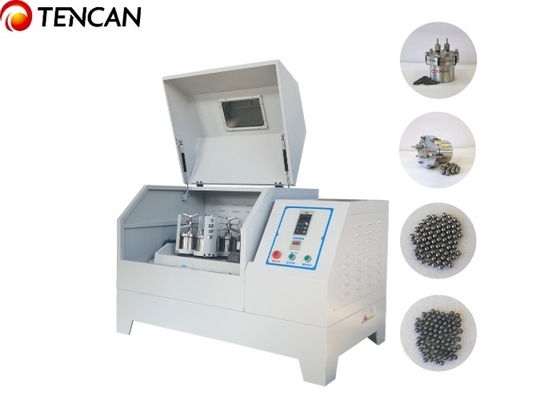

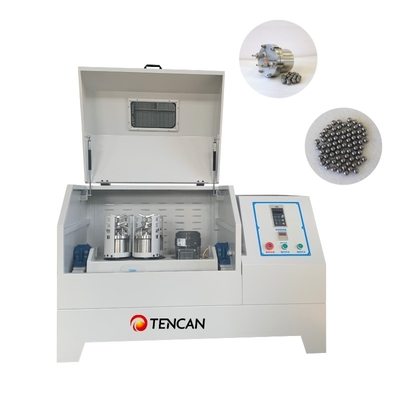

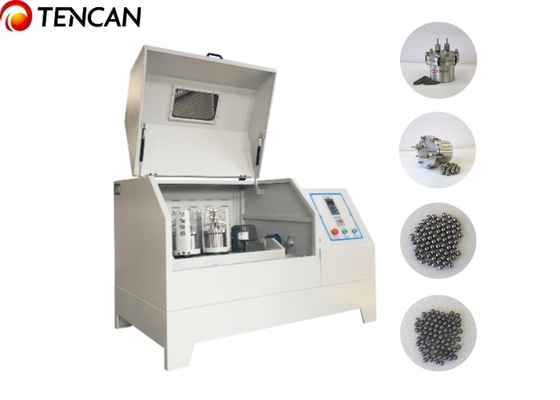

Vacuum Jar and SS. Balls Full-direction Planetary Ball Mill with 0.66L Max Capacity
Product Description:
The Full-directional Laboratory Ball Mill is an essential device for milling high-tech materials, fine grinding, mixing powders, creating nano powders, developing new products, and producing small batches. The Tencan planetary ball mill offers advantages such as small size, high efficiency, low noise, and complete functions. It is an ideal equipment for obtaining fine powder samples in research institutions, universities, and laboratory settings. With four working positions, the Tencan planetary ball mill allows for the production of four samples at one time. With the use of vacuum ball mill jars, it can also be used to obtain powder samples in a vacuum environment.
The Full-directional Laboratory Ball Mill typically has four ball grinding positions installed on one disc. As the turn disc rotates, the mill pots also revolve on their own axis, making a 360 degree rotation. The balls within the tanks then grind and mix samples in a high-speed movement. This machine can crush and blend various materials and particle sizes using dry or wet methods. The minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in fields such as Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection.
Features:
- Product Name: Planetary Ball Mill
- Production Ability: 0.1-0.66kg/h
- Max Production Capacity: 0.66L
- Power: 0.75KW
- Working Model: 2 Or 4 Pots One Time
- Weight: 317kg
- Ball Mill Grinding Machine
- High-Energy Ball Milling
- Fine Grinding
- Planetary Ball Mill
Technical Parameters:
| Parameters of Full-Directional Laboratory Ball mill | |||||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 | 1-9999 | 1-999 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 | 1-9999 | 1-999 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 | 1-9999 | 1-999 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 | 1-9999 | 1-999 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 | 1-9999 | 1-999 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 | 1-9999 | 1-999 |
Applications:
Planetary Ball Mill, also known as milling ball mill, is a grinding equipment widely used in industries such as metallurgy, chemical, ceramics, medicine, food, and biotechnology. It is designed to grind materials into extremely fine powder for use in various applications.
With its unique design and high performance, the Planetary Ball Mill from TENCAN is highly sought after by many researchers and industries. Let's take a closer look at its features and how it can be used in different settings.
The Planetary Ball Mill is manufactured by TENCAN, a leading company in the field of laboratory equipment. Its model number is XQM-2, indicating that it is the second model in the XQM series.
This product is proudly made in Changsha, Hunan, China, known for its advanced technology and manufacturing capabilities. It is certified with ISO CE, ensuring its quality and reliability.
The minimum order quantity for this product is 1 set, making it easily accessible for small businesses and laboratories. The price is negotiable, providing flexibility for customers with different budget requirements.
The Planetary Ball Mill is carefully packaged in a Plywood case & Foam to ensure its safety during transportation. The delivery time is 7-15 days, depending on the order quantity and destination.
TENCAN accepts payment through T/T and Western Union, providing convenient options for customers. The supply ability for this product is 200 sets per month, ensuring a steady supply for customers.
This product comes with a Vacuum Jar and SS Balls, allowing for efficient grinding and mixing of materials. The feeding size for this product is less than 10mm, making it suitable for a wide range of materials.
The Planetary Ball Mill has a maximum production capacity of 0.66L, providing high efficiency and productivity. It has a working model of 2 or 4 pots one time, allowing for multiple samples to be processed simultaneously.
The Planetary Ball Mill is suitable for various applications, including but not limited to:
- Mixing and grinding of chemicals for use in the pharmaceutical industry
- Grinding and homogenization of food samples for quality control and research
- Milling and blending of ceramic materials for the production of advanced ceramics
- Crushing and blending of ores for mineral processing purposes
- Grinding and mixing of pigments and paints for the production of high-quality coatings
- Mixing and grinding of electronic materials for the production of electronic components
The Planetary Ball Mill from TENCAN is a versatile and high-performance grinding equipment suitable for various industries and applications. Its compact design, efficient production capacity, and high-quality materials make it a top choice for researchers and industries alike. With its numerous features and wide range of applications, the Planetary Ball Mill is a must-have equipment for any laboratory or industry seeking precision and efficiency in their grinding processes.
| Product Name | Planetary Ball Mill |
|---|---|
| Brand Name | TENCAN |
| Model Number | QXQM-2 |
| Place of Origin | Changsha, Hunan, China |
| Certification | ISO CE |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | Carton & Foam |
| Delivery Time | 7-15 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 200 Sets per Month |
| Accessories | Vacuum Jar & SS Balls |
| Feeding Size | Less Than 10mm |
| Max Production Capacity | 0.66L |
| Working Model | 2 or 4 pots one time |
Customization:
Brand Name: TENCAN
Model Number: QXQM-2
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood case & Foam
Delivery Time: 7-15 days
Payment Terms: T/T, Western union
Supply Ability: 200 Sets per Month
Max Production Capacity: 0.66L
Warranty: 1 Year
Power: 0.75KW
Output Size: Minimum 0.1μm
Rotate Speed: 70-670rpm
Packing and Shipping:
The Planetary Ball Mill is packaged in a sturdy wooden case to ensure safe transportation.
Inside the case, the mill is wrapped in multiple layers of protective material, including foam and bubble wrap, to provide extra cushioning and protection during transit.
The package also includes all necessary accessories and documentation, such as the operation manual and warranty card.
For shipping, we use reliable and experienced carriers to deliver the product to your designated address. Each shipment is carefully tracked and insured to ensure that it reaches you in perfect condition.
Upon arrival, please carefully inspect the package for any signs of damage. If there are any issues, please contact us immediately and we will work to resolve the problem as quickly as possible.
We strive to provide the highest quality packaging and shipping services to ensure that your Planetary Ball Mill arrives safely and securely.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is TENCAN.
- Q: What is the model number of this product?
- A: The model number of this product is QXQM-2.
- Q: Where is this product manufactured?
- A: This product is manufactured in Changsha, Hunan, China.
- Q: Does this product have any certification?
- A: Yes, this product is certified by ISO CE.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1 set.
- Q: Is the price of this product negotiable?
- A: Yes, the price of this product is negotiable.
- Q: How is this product packaged for delivery?
- A: This product is packaged in carton and foam for delivery.
- Q: What is the estimated delivery time for this product?
- A: The estimated delivery time for this product is 7-15 days.
- Q: What are the accepted payment terms for this product?
- A: The accepted payment terms for this product are T/T and Western Union.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is 200 sets per month.
