900*600*640mm Lab Scale Planetary Ball Mill for Stable Performance Machine
Product Details:
| Place of Origin: | Changsha，Hunan， China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton & Foam |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western union |
| Supply Ability: | 200 Sets per Month |
|
Detail Information |
|||
| Output Size: | Down To 0.1μm | Max Production Capacity: | 3.3L |
|---|---|---|---|
| Key Word: | Lab Scale Planetary Ball Mill | Warranty: | 1 Year |
| Rotate Speed: | 70-580rpm | Production Ability: | 1-3.3kg/h |
| Power: | 1.5KW | Working Model: | 2 Or 4 Pots One Time |
| High Light: | 640mm Planetary Ball Mill,Stable Lab Planetary Ball Mill,Lab Scale Planetary Mill |
||
Product Description
900*600*640mm Lab Scale Planetary Ball Mill for Stable Performance Machine
Product Description:

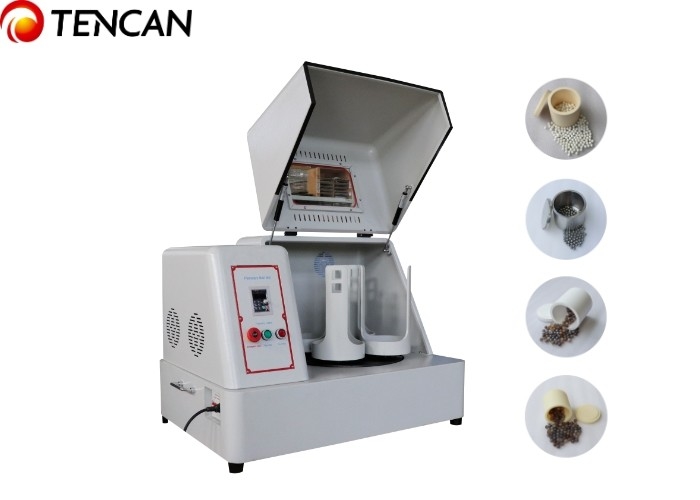

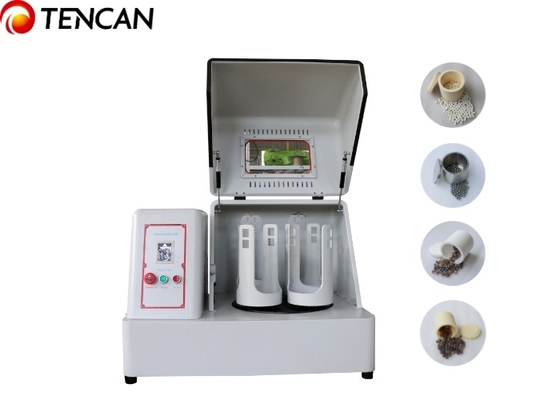

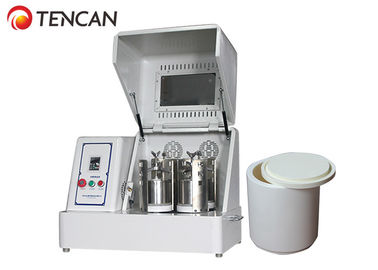

The Laboratory Planetary Ball Mill Machine is an essential device utilized for milling high-tech materials, fine grinding, powder mixing, producing nano powders, developing new products, and carrying out small batch production. It offers various advantages and features, including compact size, high efficiency, low noise, and complete functionality. The Tencan Planetary Ball Mill is perfect for obtaining fine powder samples in research institutions, universities, and laboratory settings. With four working positions, this machine allows you to obtain four samples simultaneously. Furthermore, equipped with vacuum ball mill jars, it can also produce powder samples in a vacuum environment.
- Small volume
- High efficiency
- Low noise
- Complete functionality
- Designed with four working positions
- Ability to obtain four samples at once
- Suitable for R&D institutions, universities, and enterprises' laboratories
- Can be used for powder samples under vacuum environment with vacuum ball mill jars
Features:
| Product Name | Planetary Ball Mill |
| Max Production Capacity | 3.3L |
| Feeding Size | Less Than 10mm |
| Output Size | Down To 0.1μm |
| Voltage | 220V-50Hz |
| Rotate Speed | 70-580rpm |
- Milling Ball Mill
- Grinding Planetary Ball Mill
- Ball Mill Grinding Machine
Technical Parameters:
The equipment can be operated using either gear drive or belt drive.
The equipment allows for the simultaneous operation of either two or four grinding tanks.
The maximum loading capacity for the milling tank is 2/3 of its total capacity.
The equipment is suitable for grinding soil material with a maximum feeding size of 3mm.
The equipment can achieve a minimum output granularity of 0.1μm.
The rotational speed ratio for the equipment is 1:2.
The equipment can operate continuously for a maximum of 72 hours.
The equipment allows for the use of various materials for the grinding jars, including stainless steel, agate, nylon, corundum, zirconia, and more.
Applications:
Brand Name: TENCAN
Model Number: XQM-10
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton & Foam
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 200 Sets per Month
Output Size: Down To 0.1μm
Power: 1.5KW
Rotate Speed: 70-580rpm
Working Model: 2 or 4 Pots One Time
Warranty: 1 Year
The Planetary Ball Mill by TENCAN is a high-precision and efficient ball milling machine, designed for fine grinding and powder mixing in material research and sample preparation. It is the perfect choice for laboratories and research institutions looking for a reliable and versatile grinding machine.
With its unique planetary motion and high-speed rotation, the XQM-10 model can grind and mix various materials down to a minimum particle size of 0.1μm. This makes it ideal for producing nano powders and achieving finer grinding results compared to traditional ball mills.
The machine is equipped with a 1.5KW motor and can rotate at a speed of 70-580rpm, providing powerful and efficient grinding. Its working model allows for 2 or 4 pots to be used at the same time, increasing productivity and saving time for sample preparation.
The Planetary Ball Mill is ISO and CE certified, ensuring its quality and reliability. It also comes with a 1-year warranty, giving customers peace of mind and assurance of its durability.
In addition, the machine is easy to operate and maintain, making it suitable for both beginners and experienced researchers. Its compact size and packaging in a carton with foam make it convenient for transportation and storage.
The Planetary Ball Mill by TENCAN is the go-to machine for grinding, mixing, and preparing materials in industries such as chemistry, biology, pharmaceuticals, and materials science. Its wide range of applications and efficient performance make it a must-have for any laboratory or research facility.
Customization:
Model Number: XQM-10
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton & Foam
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Power: 1.5KW
Dimension: 900*600*640mm
Production Ability: 1-3.3kg/h
Working Model: 2 or 4 pots one time
TENCAN offers customized services for our Planetary Ball Mill, tailored to meet your specific needs and requirements.
Our Ball Milling Machine, also known as Planetary Milling Ball Mill, is a powerful and efficient tool for grinding and mixing materials in a variety of industries.
With our Square Planetary Ball Mill, you can achieve precise and uniform particle size reduction, as well as homogenous mixing of various materials.
We understand the importance of meeting your unique specifications, and our team of experts will work closely with you to provide the best Customized Service possible.
Choose TENCAN for top-quality and reliable Square Planetary Ball Mill, with the added benefit of personalized customization to suit your specific needs.
Packing and Shipping:
The Planetary Ball Mill is packaged in a sturdy wooden case to ensure safe transportation and delivery. The case is lined with foam and is secured with strong straps to prevent any damage during transit.
For international shipping, the product is packed in a durable and waterproof carton box to protect it from any external elements. The carton box is then placed in a wooden crate for added protection.
Each package is carefully labeled with the product name, model number, and any necessary handling instructions.
For domestic shipping, the product is packed in a strong cardboard box with ample cushioning materials to prevent any damage during transit.
Our shipping partners are carefully selected to ensure timely and secure delivery of the product to our customers.
Once the product is shipped, customers will receive a tracking number to monitor the status of their delivery.
The Planetary Ball Mill is packaged in a sturdy wooden case to ensure safe transportation and delivery. The case is lined with foam and is secured with strong straps to prevent any damage during transit.
For international shipping, the product is packed in a durable and waterproof carton box to protect it from any external elements. The carton box is then placed in a wooden crate for added protection.
Each package is carefully labeled with the product name, model number, and any necessary handling instructions.
For domestic shipping, the product is packed in a strong cardboard box with ample cushioning materials to prevent any damage during transit.
Our shipping partners are carefully selected to ensure timely and secure delivery of the product to our customers.
Once the product is shipped, customers will receive a tracking number to monitor the status of their delivery.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is TENCAN. - Q: What is the model number of this product?
A: The model number of this product is XQM-10. - Q: Where is this product manufactured?
A: This product is manufactured in Changsha, Hunan, China. - Q: Is this product certified?
A: Yes, this product is certified with ISO CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
