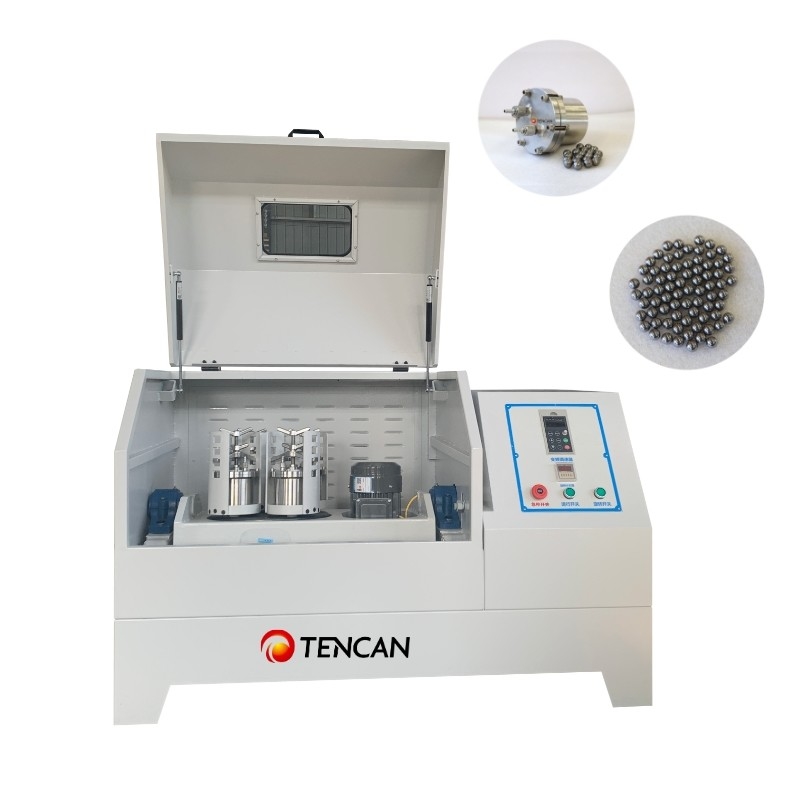

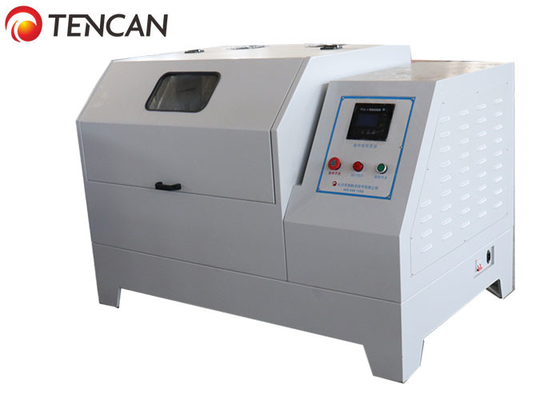

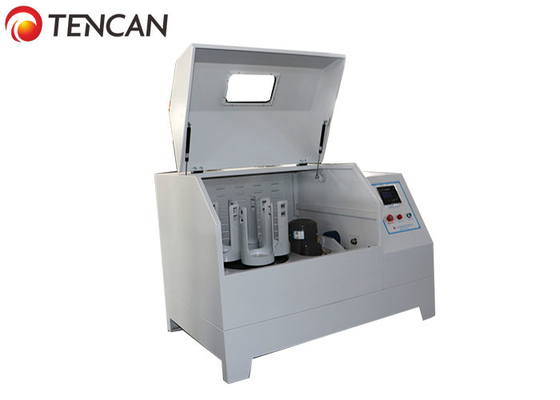

Ultrafine Grinding Full Dimensional Planetary Ball Mill 0.1μM Multi Design

Product Description:

    The Full-directional Laboratory Ball Mill is an indispensable device for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development, and small batch production. Tencan planetary ball mill is renowned for its small size, high efficiency, low noise and full range of functions. It is an ideal equipment for R&D institutions, universities, and business institutes to get the perfect powder samples.

    The machine is designed with four working positions, enabling users to get four samples (maximum) at one time. Moreover, when vacuum ball mill jars are utilized, users can get powder samples even in a vacuum environment. This machine gives users the means to crush and blend various products of different materials and granularity in a quick and neat way without the additional dry or wet methods.

    There are four ball grinding positions built on one disc, in which the mill pots will revolve for 360 degrees while the disc turns. Additionally, during the rotation, the balls in the tanks will grind and mix the samples with very high speed. The minimum granularity of the ground samples is as small as 0.1 micron meter, making it widely used in many fields like Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, and Environmental Protection.

Features:

• Product Name: Planetary Ball Mill
• Output: Down To 0.1μm
• Max Production Capacity: 0.66L
• Warranty: 1 Year
• Production ability: 0.1-0.66kg/h
• Working Model: 2 Or 4 Pots One Time
• Highlights: Planetary Milling Ball Mill, Ball Mill Grinding Machine, High-Energy Ball Mill

Technical Parameters:

Applications:

The TENCAN QXQM-2 Planetary Ball Mill is a grinding machine that utilizes impact grinding to reduce material size. It is certified ISO and CE and is available with a minimum order quantity of one set. Its feed size is less than 10mm and its production capacity is 0.66L with a max production capacity of 0.1-0.66kg/h. It is equipped with a voltage of 220V or 110V and a rotate speed of 70-670rpm. It is a highly efficient ball mill grinder machine and ball mill grinder that is perfect for grinding and blending materials. It comes with a packaging of carton and foam and offers a delivery time of 7-15 days. The payment terms are T/T, Western union, and L/C, and it offers a supply ability of 200 sets per month.

Customization:

Are you looking for a reliable and high-efficient Planetary Ball Mill from TENCAN? Look no further. Our planetary ball mill is designed with all-dimensional and all-directional grinding, making it the most advanced equipment for grinding and milling.

• Brand Name: TENCAN
• Model Number: QXQM-2
• Place of Origin: Changsha Hunan China
• Certification: ISO CE
• Minimum Order Quantity: 1 set
• Price: negotiable
• Packaging Details: Carton & Foam
• Delivery Time: 7-15 days
• Payment Terms: T/T, Western union, L/C
• Supply Ability: 200 Sets per Month
• Power: 0.75KW
• Key Word: Laboratory All-dimensional Ball Mill
• Voltage: 220V Or 110V
• Output: Down To 0.1μm
• Transmission mode: Gear Rotation

Our Planetary Ball Mill Grinder features high-energy ball milling, which enables efficient grinding and homogenization of particles, as well as the use of multiple milling modes for different types of materials. With its unique design, our Planetary Ball Mill Grinder can handle materials in a wide range of sizes and hardness, making it suitable for a diverse range of applications.

FAQ:

1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.

2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.

3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?

4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522

5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.

6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
