0.1-0.66kg/h Planetary Ball Mill with 1 Year for Soil Material<10mm
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton or plywood & Foam |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Feeding Size Of Materials: | Soil Material<10mm, Other<3mm | Power: | 0.75KW |
|---|---|---|---|
| Package: | Plywood Case Or Carton With Foam | Output (kg/h): | 0.1-1.32kg/h |
| Key Word: | Laboratory Grinding Mill | Output Granularity: | 400-12500mesh |
| Applicable Industries: | Grinding & Mixing | Rotational Speed: | 70-670rpm |
| High Light: | 0.66kg/h Planetary Ball Mill,10mm Soil Planetary Ball Mill,Grinding Planetary Milling Machine |
||
Product Description
0.1-0.66kg/h Planetary Ball Mill with 1 Year for Soil Material<10mm
Product Description:

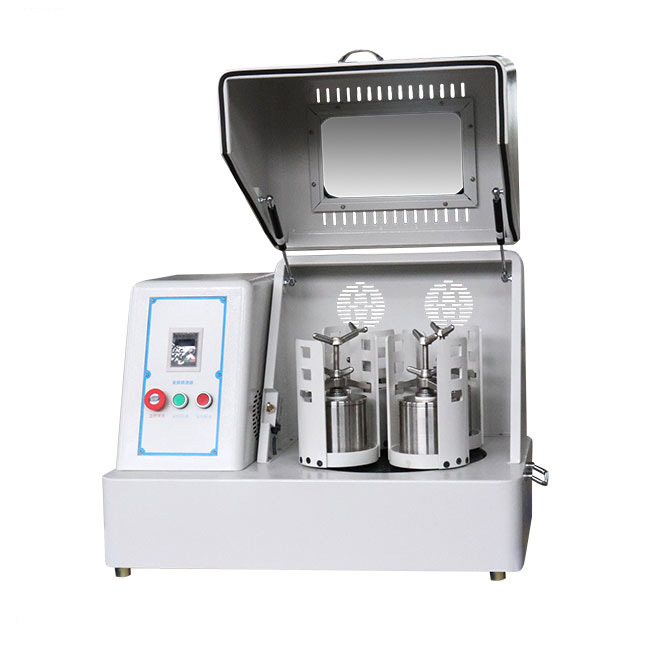

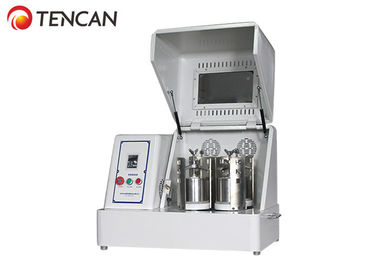

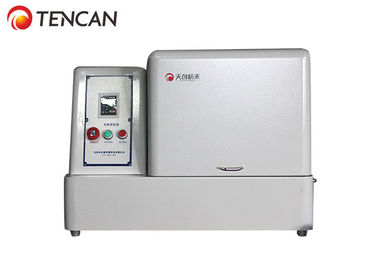

The Planetary Ball Mill is a high-energy ball mill grinding machine designed for grinding materials down to very small sizes. It features a unique design with two or four pots working at the same time to grind samples to a fine particle size of up to 12,500 mesh. The rotating speed of the grinding pots can be adjusted from 70 to 670 rpm, providing users with a wide range of speed control and particle size. This advanced milling device is powered by 220V-50Hz and 110v voltage, and is supplied with a plywood case or carton with foam package, ensuring secure and safe transport.
The Planetary Ball Milling Device offers a wide range of advantages for users, such as a high grinding efficiency, low noise levels, and a wide range of speed control and particle size. This advanced milling device is perfect for industrial and laboratory applications, due to its highly efficient grinding and homogenizing abilities, making it ideal for the production of high-quality, uniform materials.
Features:
- Product Name: Planetary Ball Mill Machine
- Key Word: Laboratory Grinding Mill
- Rotational Speed: 70-670rpm
- Model: XQM-4
- Package: Plywood Case Or Carton With Foam
- Milling Ball Mill, Ball Mill Grinding Machine, Planetary Ball Milling Device
Technical Parameters:
| Parameter | Value |
|---|---|
| Power | 0.75KW |
| Product Name | Planetary Ball Mill Machine |
| Feeding Size of Materials | Soil Material≤10mm,Other≤3mm |
| Rotate Speed | 70-670rpm |
| Warranty | 1 Year |
| Model | XQM-4 |
| Applicable Industries | Gringding & Mixing |
| Max Production Capacity | 1.32L |
| Voltage | 220V-50Hz,110v |
| Working Model | 2 Or 4 Pots One Time |
| Ball Milling Machine | High-Energy Ball Mill, Rotary Ball Mill |
Applications:
Planetary Ball Mill is a high-end milling machine made by TENCAN, with the model number of XQM-4. It is manufactured in Hunan China, and is certified with ISO CE. The minimum order quantity is 1 set, and the price is negotiable. The package is usually Carton or plywood & Foam, and the delivery time is usually 7-15 days. The payment terms are usually T/T, and the supply ability is usually 400 Set/Sets per Month. It is usually used in Grinding & Mixing industries, and the package is usually Plywood Case Or Carton With Foam. The output granularity is usually 400-12500mesh, and the voltage is usually 220V-50Hz,110v. It can usually work with 2 Or 4 Pots One Time.
Customization:
- Brand Name: TENCAN
- Model Number: XQM-4
- Place of Origin: Hunan China
- Certification: ISO CE
- Minimum Order Quantity: 1 set
- Price: Negotiable
- Packaging Details: Carton or plywood & Foam
- Delivery Time: 7-15 days
- Payment Terms: T/T
- Supply Ability: 400 Set/Sets per Month
- Package: Plywood Case Or Carton With Foam
- Output (kg/h): 0.1-1.32kg/h
- Max Production Capacity: 1.32L
- Rotational Speed: 70-670rpm
- Output Granularity: 400-12500mesh
TENCAN XQM-4 Planetary ball mill is a necessary device for mixing, fine grinding, small samples prepared, dispersion of nanometer, R&D of new product and small batch production for high tech materials.
Support and Services:
We provide technical support and services for Planetary Ball Mill. Our technical support includes:
- Troubleshooting and maintenance of the Planetary Ball Mill
- Installation and commissioning of the Planetary Ball Mill
- Providing spare parts and accessories for the Planetary Ball Mill
- Training users to operate the Planetary Ball Mill
