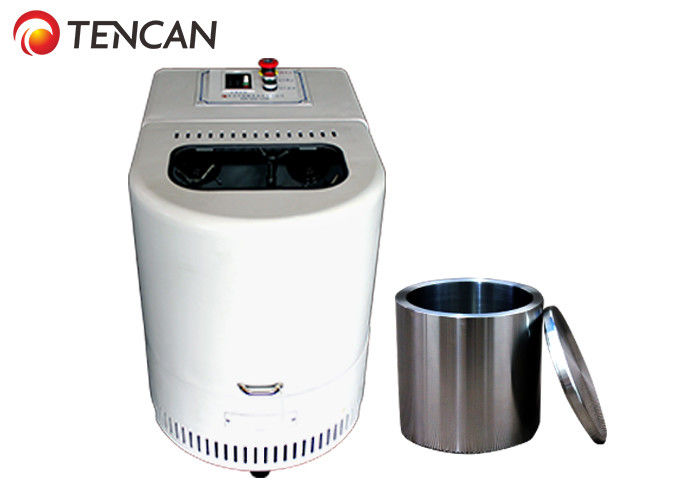

Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L

Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L

Product Details:

Place of Origin: Hunan China
Brand Name: TENCAN
Certification: ISO CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton & Foam
Delivery Time: >=7
Payment Terms: T/T
Supply Ability: 200 Set/Sets per Month metal powder making machine
Get Best Price Contact Now

Detail Information
Model Number: XQM-8A Product Name: Planetary Ball Mill
Voltage: 220V Feeding Size(mm): 1-10mm
Output(kg/h): 0.1-2.64kg/h Rotational Speed: 70-580rpm
Warranty: 1 Year Output(mesh): 425 - 12500 Mesh
Max Capacity: 2.64L Power: 1.5KW
High Light:

8L Planetary Ball Mill

,

Lab Vertical Planetary Ball Mill

,

1.5KW Planetary Milling Machine

Product Description

  Tencan 8L 1.5KW Max Capacity 2.64L planetary ball mill laboratory



Overview:

   Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). Large planetary ball mill for production is a kind of large-sized machine designed,enlarged and manufactured on basis of principle of small ball mill,which mainly applies batch production.

Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 0Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 1Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 2


Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Minimum 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.





Working Principle:



    Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.



Features:

  • Planetary movement principle is adopted in the machine, which has high speed, largeenergy, high efficiency, small Granularity.
  •  Four powder samples from different sizes and different materials can be produced at one time.
  • The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
  • The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
  • Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
  • Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Technical Parameters:



Model Specification Ball milling tanks Remarks
Spec Qty(Items/Set)
XQM-0.4L 0.4L 50-100ml 4pcs can be equipped with 50ml vacuum ball milling tanks
XQM-1L 1L 50-250ml 4pcs can be equipped with50-100ml vacuum ball milling tanks
XQM-2L 2L 50-500ml 4pcs can be equipped with 50-250ml vacuum ball milling tanks
XQM-4L 4L 50-1000ml 4pcs can be equipped with100-500ml vacuum ball milling tanks
XQM-8L 8L 0.5-2L 4pcs can be equipped with 250-1000ml vacuum ball milling tanks
XQM-12L 12L 1-3L 4pcs can be equipped with 500-2000ml vacuum ball milling tanks
XQM-16L 16L 1-4L 4pcs can be equipped with 500-3000ml vacuum ball milling tanks
XQM-20L 20L 1-5L 4pcs can be equipped with1000-4000ml vacuum ball milling tanks
XQM-40L 40L 4-10L 4pcs can be equipped with 3000-9000ml vacuum ball milling tanks
XQM-60L 60L 6-15L 4pcs can be equipped with 5000-13000ml vacuum ball milling tanks
XQM-100L 100L 1-25L 4pcs can be equipped with 9000-20000ml vacuum ball milling tanks





Packing and Shipping:

  • Product is carefully packaged in a cardboard box with foam inserts
  • Product is shipped via a reliable and trackable courier
  • Product is shipped with full insurance to ensure safe delivery
  • Delivery Detail: Within 7 working days after full payment



Accessories:

    We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.


Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 3

     We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 4

Ball mill jar volume 0.05L-50L/pc, totally 0.2L-200L
Feeding particle size soil ≤10mm, other material ≤3mm
Discharge particle size Min. As 0.1um
Speed ratio (revolution: rotation) 1:2 (20-200L productive planetary ball mill can be 1:1.5)
Rotating speed 0-810rpm( normal), 0-1400rpm (high-speed)
Speed regulation stepless speed regulation, 0.2rpm
Program control Our ball mill adopts high-tech microcomputer chip control,it can runs by set up the forward and inversion alternately repeatedly program(0-999 min) and forward, pause, inversion, pause, forward (0-999 min) alternating operation program, especially suitable for cooling or intermittent operation.
Max. Continuous working time (full load) 72 hours( timer 0-9999h)
Motor power main power is 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3KW, 4KW, 5. 5KW, 7.5 KW, 11 KW, 15 KW, 18.5 KW, 22KW as per the model and ball mill loading weight. The motor is made by pure cupper.
Ball mill environments Vacuum, inert gas, low temperature, high temperature



Grinding Cases:

Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 5



Company Profile:

 CHANGSHA TIANCHUANG POWDER TECHNOLOGY CO., LTD.

      Changsha Tianchuang Powder Technology Company Limited, which was established in 2006, is located in Changsha City, Capital of Hunan Province, South-Centre part of People’s Republic of China. The Company is one of largest professional manufacturers in China engaging in design, manufacture, and sales of all kinds of lab ball mills. With rich experiences of hard work in the industry, all kinds of lab ball mills we designed and produced have many advantages such as impact machine model, flexible and simple operation, grinding with dry and wet materials, which can meet requirements of dispersed grinding of all laboratories and further greatly benefit enlarging experimental results to production machine. The lab ball mills are best choice for your labs grinding and research of new materials. With sustained business conception of "Customer Is Superior, Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc. We promise that we would make great efforts to provide high quality machines and best services for all customers in the coming years.



Certifications:

Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 6Laboratory Planetary Ball Mill 8L 1.5KW Max Capacity 2.64L 7




FAQ:

Q1:What's your warranty?
A1:One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086-13357214760

A2:It depends on property of material and grinding process you set. Generally, most of materials can be ground into nano scale powder. Meanwhile, we provide sample grinding experiment free of charge if you send us sample of your material.

A3:We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed.

A4:Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.

A5:We are one of the largest manufacturers of powder mills and laboratory equipment in China.

A6:The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.​
