Product Details:

Place of Origin: Hunan China
Brand Name: TENCAN
Certification: ISO CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton & Foam
Delivery Time: >=7
Payment Terms: T/T
Supply Ability: 200 Set/Sets per Month metal powder making machine
Get Best Price Contact Now

Detail Information
Model Number: XQM-2 Product Name: Planetary Ball Mill
Voltage: 220V/110V Feeding Size(mm): 1-10mm
Output(kg/h): 0.1-0.66kg/h Rotational Speed: 70-670rpm
Warranty: 1 Year Output(mesh): 450 - 12500 Mesh
Capacity: 0.66L Power: 0.75W
High Light:

Planetary Ball Mill 2L

,

Minimum 0.1um Planetary Ball Mill

,

670rpm Lab Ball Grinding Mill

Product Description

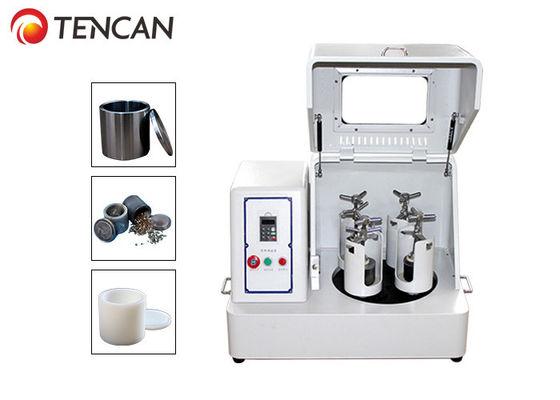

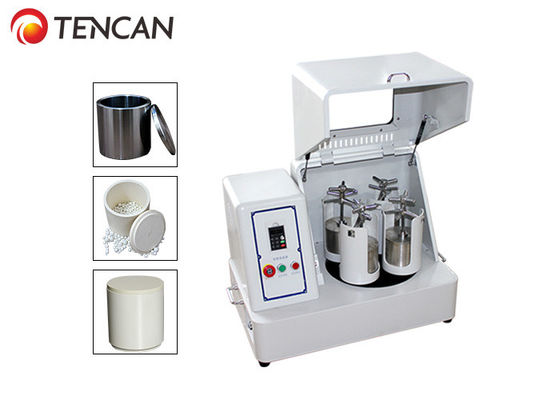

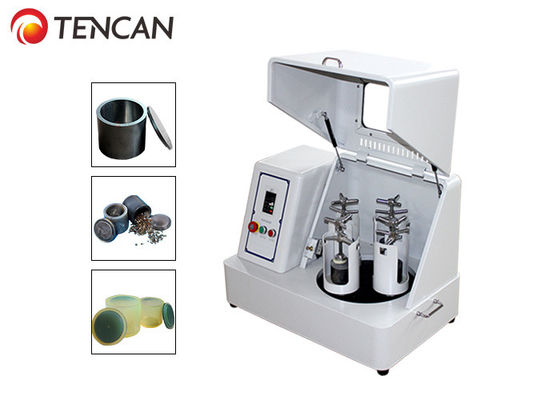

  China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L



Overview:

   Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). Large planetary ball mill for production is a kind of large-sized machine designed,enlarged and manufactured on basis of principle of small ball mill,which mainly applies batch production.

China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 0China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 1China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 2China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 3


Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Minimum 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.





Working Principle:



    Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.



Features:

  • Planetary movement principle is adopted in the machine, which has high speed, largeenergy, high efficiency, small Granularity.
  •  Four powder samples from different sizes and different materials can be produced at one time.
  • The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
  • The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
  • Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
  • Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Technical Parameters:

China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 4



Accessories:

    We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.


China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 5

     We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 6

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.		 Vacuum mill jar



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar √
Corundum Mill Jar ▲ √   ▲
Stainless Steel Mill Jar     √
Zirconia Mill Jar   ▲   √
Nylon Mill Jar ▲     √
PTFE Mill Jar √     ▲
Polyurethane Mill Jar √     ▲
Tungsten Carbide Mill Jar       ▲ √
√ means: most suitable ▲ means: suitable



Grinding Cases:

China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 7



Company Profile:

 CHANGSHA TIANCHUANG POWDER TECHNOLOGY CO., LTD.

      Changsha Tianchuang Powder Technology Company Limited, which was established in 2006, is located in Changsha City, Capital of Hunan Province, South-Centre part of People’s Republic of China. The Company is one of largest professional manufacturers in China engaging in design, manufacture, and sales of all kinds of lab ball mills. With rich experiences of hard work in the industry, all kinds of lab ball mills we designed and produced have many advantages such as impact machine model, flexible and simple operation, grinding with dry and wet materials, which can meet requirements of dispersed grinding of all laboratories and further greatly benefit enlarging experimental results to production machine. The lab ball mills are best choice for your labs grinding and research of new materials. With sustained business conception of "Customer Is Superior, Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc. We promise that we would make great efforts to provide high quality machines and best services for all customers in the coming years.



Certifications:

China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 8China Tencan Planetary Ball Mill Minimum 0.1μm Lab Ball Grinding Mill 2L 9




FAQ:

Q1:What's your warranty?
A1:One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086-13357214760

A2:It depends on property of material and grinding process you set. Generally, most of materials can be ground into nano scale powder. Meanwhile, we provide sample grinding experiment free of charge if you send us sample of your material.

A3:We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed.

A4:Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.

A5:We are one of the largest manufacturers of powder mills and laboratory equipment in China.

A6:The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.​
