|Product Name:||Mini Lab Planetary Ball Mill||Model No.:||XQM-0.4A|
|Total Volume:||0.4L||Max Capacity:||0.132L|
|Rotate Speed:||90-870 Rpm||Speed Control:||Frequency Control|
|Voltage:||220V-50Hz Or 110V-60Hz||Power:||0.25KW|

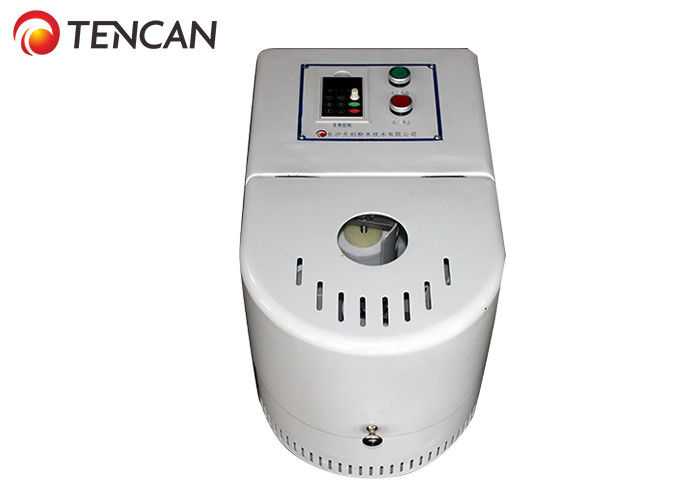

Mini size 0.4L Vertical and Movable Nano Powder Grinding Laboratory Ball Milling Machine
Planetary ball mills are smaller than common ball mills and mainly used in laboratories for grinding sample material down to very small sizes. A planetary ball mill consists of at least one grinding jar which is arranged eccentrically on a so-called sun wheel. The direction of movement of the sun wheel is opposite to that of the grinding jars (ratio: 1:-2 or 1:-1.5 ). The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called coriolis forces. The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies. The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill.
0.4L 110 - 220v Mini Laboratory ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.
Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography
Features of Tencan 0.4L 110 - 220v Mini Laboratory Ball Mill
1) With small size, light weight, low noise.
2) can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation.
3) series of ball mill can be dry grinding, wet grinding, vacuum grinding, protection of the atmosphere.
4) series planetary ball mill main belt tightness adjustable, long-term use is not easy to slip, greatly extended the service life.
5) Repeat-ability, for the same material, the same process, the result is repeated several times the ball mill. Because of the time, the belt is loose, which can lead to the rotation speed
|Main Parameters of 0.4L 110 - 220v Mini Laboratory Ball Mill|
|Alternating Run Time of Forward & Reversal Rotation
Accessories of 0.4L 110 - 220v Mini Laboratory Ball Mill
Besides the planetary ball mill machine, we also provide all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina ceramic mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jars etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
