4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation

China 4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation supplier
4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation supplier 4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation supplier 4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation supplier 4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation supplier

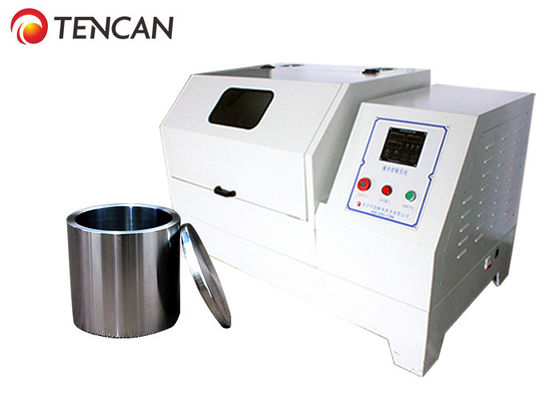

Large Image :  4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: QXQM-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton or Plywood Case
Delivery Time: 10-15 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 150 sets per month
Contact Now
Detailed Product Description
Product Name: Laboratory Dual Planetary Ball Mill Model No.: QXQM-4
Total Volume: 4L Max Capacity: 1.32L
Rotate Speed: 70-670 Rpm Voltage: 220V-50Hz Or 110V-60Hz
Power: 0.75KW Speed Control: Frequency Converter
Type: Ball Mill

4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation



Overview



Full-directional Laboratory Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle



Full-directional Laboratory Ball Mill often has four ball grinding positions installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.



Applications



Full-directional Laboratory Ball Mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.





Features


1.The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even
2. Gear transmission ensures to keep consistency and repeatability of experiment.
3. You may get four different powder samples at one time.
4. Variable frequency controlled and program controlled.
5. It solves the problems of materials sinking and sticking to the pot.

Advantages:
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.,



Technical Features



Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 48hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.





Technical Parameters





Parameters of Full-Directional Laboratory Ball mill
Type Power
(KW)
Voltage
(V)
Dimension(mm) Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
QXQM-0.4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-1 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-2 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-6 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-8 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
QXQM-10 1.5 220V-50Hz 1290*900*960 35-290 70-580 1-9999 1-999
QXQM-12 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
QXQM-16 3 380V-50Hz 1530*1070*1220 30-225 60-510 1-9999 1-999
QXQM-20 4 380V-50Hz 1700*1100*1200 25-215 50-430 1-9999 1-999
QXQM-40 5.5 380V-51Hz 1900*1450*1480 20-195 40-390 1-9999 1-999



Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.

4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



4L Full-directional laboratory ball mill Designed To Solve Blocking of Nano Powder Samples Preparation



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
