4 Mill Jars Vertical Laboratory Ball Mill Semi - Circle Round Shape Micron Powder Milling Use

4 Mill Jars Vertical Laboratory Ball Mill Semi - Circle Round Shape Micron Powder Milling Use

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-4A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 300 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Semi-circle Round Laboratory Ball Mill Model No.: XQM-4A
Total Volume: 4L Max Capacity: 1.32L
Rotate Speed: 70-670 Rpm Speed Control: Frequency Controller
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.75KW
High Light:

lab ball mill

,

laboratory ball mill machine

Product Description

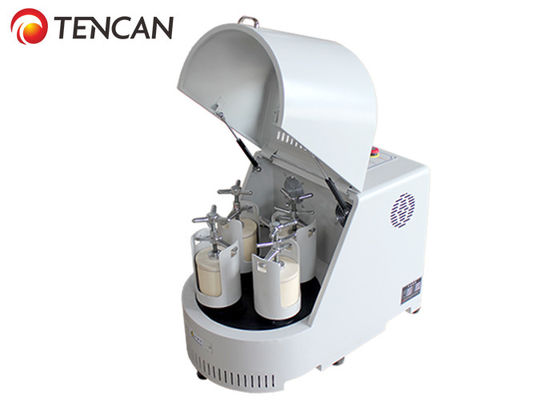

4 Mill Jars Vertical Laboratory Ball Mill In Semi-circle Round Shape For Micron Powder Milling

Overview

Vertical semi-circle shape laboratory ball mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.

Working Principle

Vertical semi-circle shape laboratory ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.

Applications
Vertical semi-circle shape laboratory ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Features
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features


Technical Features
Drive ModeGear drive and belt drive
Operate ModeTwo or four grinding tanks working together
Maximum Loading Capacity2/3 of the capacity of milling tank
Feeding SizeSoil material≤3mm
Output GranularityMinimum 0.1μm
Rotational Speed Ratio/1/2
Max.Continuous Operating Time72hours
Materials of Jarstainless steel.agate,nylon,corundum,zirconia,etc



Technical Parameters


Technical Parameters of Vertical Laboratory Mill Ball (Semi-circle Shape)
ModelPower(KW)VoltageDimension(mm)Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run Time of Forward & Reversal Rotation
(min)
XQM-0.4A0.25220V-50Hz530*300*34045-43590-8701-99991-999
XQM-2A0.75220V-50Hz750*470*59035-33570-6701-99991-999
XQM-4A0.75220V-50Hz750*470*59035-33570-6701-99991-999
XQM-8A1.5220V-50Hz900*600*64035-29070-5801-99991-999
XQM-10A1.5220V-50Hz900*600*64035-29070-5801-99991-999
XQM-12A1.5220V-50Hz900*600*64035-29070-5801-99991-999
XQM-16A3380V-50Hz950*600*71030-25560-5101-99991-999



Accessories

Optional Mill Jars
Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
4 Mill Jars Vertical Laboratory Ball Mill Semi - Circle Round Shape Micron Powder Milling Use 0
Optional Mill Balls
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
