Shatterbox Swing Mill Programmable Ring & Puck Mill Quick Sample Prepare
Product Details:
Place of Origin: | Hunan, China |
Brand Name: | TECAN |
Certification: | CE ISO |
Model Number: | GJ-1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood Case+Foam |
Delivery Time: | 7-15 working days after order confirmed |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Detail Information |
|||
Product Name: | Lab Sample Grinder | Model No.: | GJ-1 |
---|---|---|---|
Voltage: | 380V-50Hz | Power: | 1.1kW |
Numbers Of Bowl: | 1 Bowls | Max Capacity: | 100g |
Feed Size: | Less Than 13mm | Granularity Of Output: | 80-200 Mesh |
High Light: | vibration ball mill,vibratory grinding mill |
Product Description
TENCAN Shatterbox Swing mill Programmable ring & Puck Mill cheap price from China manufacturer
Overview
Lab sample grinder/ Swing mill / Shatterbox is also called sealing type sampling machine laboratory, sealed testing grinder, sealed timing grinder, sealed type pulverizing machine. which is mainly used for powder making of raw materials for laboratory testing. Vibratory sampling grinder is widely used in the industries of coal, coking, non-ferrous metal smelting, mining and other industries. For example, in the fields like coal, coke, gangue, all kinds of ore and so on.
The working mode of vibratory sample grinder: vibratory grinding type. In the bowl, the material is packed in the bowl, and the crushing ring and the crushing hammer are in the bowl. Materials are crushed and milled by the crushing ring and the crushing hammer in the high speed rotation withIn 2-6 minutes, and can be ground quickly into 80-200 meshes (0.175-0.075mm) micron powder samples, which are directly used for testing.
There are several bowls such as normal steel bowl, high manganese steel bowl, wear-resistant alloyed steel bowl, chrome steel bowl and tungsten carbide bowl. Selection of bowl often depends on hardness of material.
Working Principle
The material is placed in a sealed material bowl. There is a crushing hammer and a broken ring in the bowl. The motor drives the eccentric hammer to rotate at high speed. The material is made to be made of powder by vibration impact force and friction force.

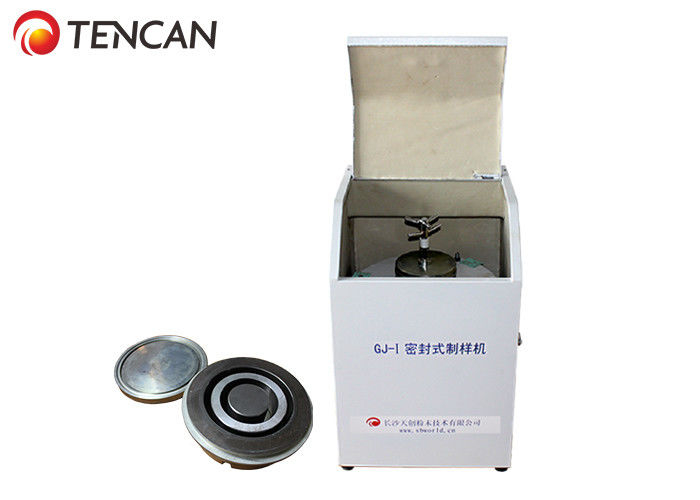

TENCAN GJ-1 Sample grinder s a ring & puck mill with a sound-proof enclosure that grinds up to 100 grams of samples to a fine analytical powder. Ideal for pulverizing dry, brittle samples and slurry grinding. It swings a dish-shaped grinding container, with a puck and (often) a ring inside, in a tight high speed circle.
Swing mill with sound-proof enclosure that accommodates sample sizes ranging from 2 - 100 grams.
- Multiple-Sample Rack permits processing of three smaller samples.
- 10-minute electronic timer and environmentally safe, push-button membrane switch.
- Cam-activated clamp requires only moderate hand pressure to secure the grinding dish in the Shatterbox and is adjustable for containers of different heights.
- Equipped with lockable casters and a safety interlock system for operator protection.
Features
1 Output sample is uniform in size, fast in speed, reliable in work and high in grinding efficiency.
2 Output sample can be directly used without sieving, simple process and high efficiency.
3 Reasonable design with full sealing, there is no dust pollution which meets requirements of environment protection.
4 Smooth operation, low noise, it meets requirements of safety production.
5. It is compact in structure, convenient in maintenance and convenient in operation.
6. 1-3 samples can be obtained at one time.
7. Durable and no sample loss because of its good sealing bowls.
8 Electronic timer is optional for the sampling grinder
Accesories/ Grinding containers:
Grinding Containers are available in Hardened Steel, Tungsten Carbide, Alumina Ceramic and Zirconia. Small grinding containers are also available in hardened steel or tungsten carbide to grind 20mL samples.
Racks
Allows grinding with either one or three small grinding containers in the TENCAN GJ-1 Swing mill/ Shatterbox. The rack base plate has handles to easily lift rack in and out of the chamber.
The Sample grinder GJ-1 is our original ring & puck mill that grinds up to 100 grams of brittle material to an analytical fineness in two minutes or less. The motor is protected by a perforated shield that allows ample air-cooling for continuous running. The perforated metal skirt provides ventilation for continuous operation, and a rubber cover protects against dust. The Sample grinder can be plugged into a standard lab timer and its cam-activated clamp requires only moderate hand pressure to secure the grinding dish and adjusts for containers of different heights.
Technical Parameters
Technical Parameters of Lab Vibrating Sample Grinder | ||||||||
Model No. | Inlet Size (mm) |
No. of Bowls (pcs) |
Feed Szie (mm) |
Granularity of Output (meshes) |
Capacity (g) |
Power Supply | Dimensions (mm) |
Net Weight (kgs) |
GJ-1 | 120 | 1 | ≤13 | 80-200 | 100 | 380V/1.1KW | 480*480*730 | 110 |
GJ-2 | 130 | 2 | ≤13 | 80-200 | 200 | 380V/1.1KW | 480*480*730 | 115 |
GJ-3 | 130 | 3 | ≤13 | 80-200 | 300 | 380V1.5KW | 530*530*920 | 130 |
