Two Grinding Bowl Vibrating Ball Mill 200g Capacity Swing Mill Long Life

China Two Grinding Bowl Vibrating Ball Mill 200g Capacity Swing Mill Long Life supplier
Two Grinding Bowl Vibrating Ball Mill 200g Capacity Swing Mill Long Life supplier Two Grinding Bowl Vibrating Ball Mill 200g Capacity Swing Mill Long Life supplier

Large Image :  Two Grinding Bowl Vibrating Ball Mill 200g Capacity Swing Mill Long Life

Product Details:

Place of Origin: Hunan, China
Brand Name: TECAN
Certification: CE ISO
Model Number: GJ-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case+Foam
Delivery Time: 7-15 working days after order confirmed
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Lab Sample Grinder Model No.: GJ-2
Voltage: 380V-50Hz Power: 1.1kW
Numbers Of Bowl: 2 Bowls Max Capacity: 200g
Feed Size: Less Than 13mm Granularity Of Output: 80-200 Mesh



TENCAN Lab Sample Grinder Shatterbox two grinding bowl 200g Capacity Swing Mill



Overview



Lab sample grinder/ Swing mill  is also called sealing type sampling machine laboratory, sealed testing grinder, sealed timing grinder, sealed type pulverizing machine. which is mainly used for powder making of raw materials for laboratory testing. Vibratory sampling grinder is widely used in the industries of coal, coking, non-ferrous metal smelting, mining and other industries. For example, in the fields like coal, coke, gangue, all kinds of ore and so on.

The working mode of vibratory sample grinder: vibratory grinding type. In the bowl, the material is packed in the bowl, and the crushing ring and the crushing hammer are in the bowl. Materials are crushed and milled by the crushing ring and the crushing hammer in the high speed rotation withIn 2-6 minutes, and can be ground quickly into 80-200 meshes (0.175-0.075mm) micron powder samples, which are directly used for testing.

There are several bowls such as normal steel bowl, high manganese steel bowl, wear-resistant alloyed steel bowl, chrome steel bowl and tungsten carbide bowl. Selection of bowl often depends on hardness of material.

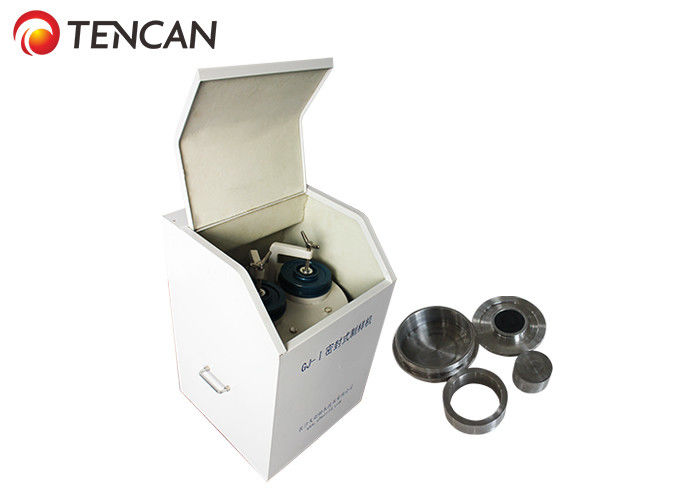

Two Grinding Bowl Vibrating Ball Mill 200g Capacity Swing Mill Long Life



Working Principle



The material is placed in a sealed material bowl. There is a crushing hammer and a broken ring in the bowl. The motor drives the eccentric hammer to rotate at high speed. The material is made to be made of powder by vibration impact force and friction force.



Swing mill with sound-proof enclosure that accommodates sample sizes ranging from 2 - 100 grams.

  • Multiple-Sample Rack permits processing of three smaller samples.
  • 10-minute electronic timer and environmentally safe, push-button membrane switch.
  • Cam-activated clamp requires only moderate hand pressure to secure the grinding dish in the Shatterbox and is adjustable for containers of different heights.
  • Equipped with lockable casters and a safety interlock system for operator protection.



Features



  • GJ-2 Multiple-Sample Rack permits processing of two smaller samples.
  • 10-minute electronic timer and environmentally safe, push-button membrane switch.
  • Cam-activated clamp requires only moderate hand pressure to secure the grinding dish in the Shatterbox and is adjustable for containers of different heights.
  • Equipped with lockable casters and a safety interlock system for operator protection.
  • Grinds samples in the 2- 100 gram range.
  • Most popular “swing mill” in America, capable of grinding up to 200 grams of brittle material to an analytical fineness.
  • Soundproof enclosure reduces noise levels.
  • Swings a dish-shaped grinding container with a puck, and often a ring, in a tight high-speed circle.
  • Typical grinding time is two minutes or less.
  • Wide selection of grinding containers available including hardened steel, tungsten carbide, alumina ceramic, and zirconia ceramic.





Technical Parameters





Technical Parameters of Lab Vibrating Sample Grinder
Model No. Inlet Size
(mm)
No. of Bowls
(pcs)
Feed Szie
(mm)
Granularity
of Output
(meshes)
Capacity
(g)
Power Supply Dimensions
(mm)
Net Weight
(kgs)
GJ-1 120 1 ≤13 80-200 100 380V/1.1KW 480*480*730 110
GJ-2 130 2 ≤13 80-200 200 380V/1.1KW 480*480*730 115
GJ-3 130 3 ≤13 80-200 300 380V1.5KW 530*530*920 130
