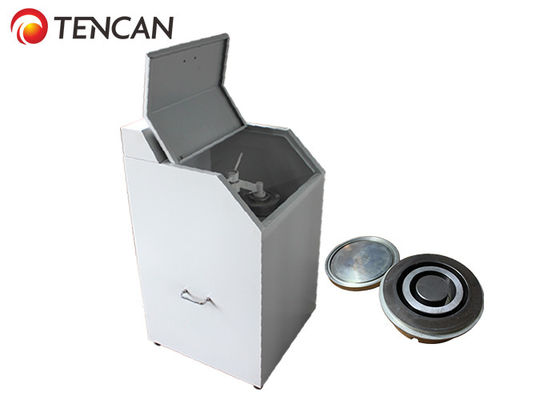

3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss

China 3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss supplier
3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss supplier 3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss supplier 3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss supplier 3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss supplier

Large Image :  3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss

Product Details:

Place of Origin: Hunan, China
Brand Name: TECAN
Certification: CE ISO
Model Number: GJ-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case+Foam
Delivery Time: 10-15 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Lab Vibration Sampling Grinder Model No.: GJ-3
Voltage: 380V-50Hz Power: 1.5KW
Numbers Of Bowls: 3 Bowls Max Capacity: 300g
Feed Size: Less Than 13mm Output Size: 80-200 Meshes

3*100g Bowls Vibration Sample Grinder Quick Milling & Well-sealed With Any Sample Loss



Overview



Lab Vibrating sample grinder is also called as sealing type sampling machine laboratory, sealed testing grinder, sealed timing grinder, sealed type pulverizing machine. which is mainly used for powder making of raw materials for laboratory testing. Vibratory sampling grinder is widely used in the industries of coal, coking, non-ferrous metal smelting, mining and other industries. For example, in the fields like coal, coke, gangue, all kinds of ore and so on.

The working mode of vibratory sample grinder: vibratory grinding type. In the bowl, the material is packed in the bowl, and the crushing ring and the crushing hammer are in the bowl. Materials are crushed and milled by the crushing ring and the crushing hammer in the high speed rotation withIn 2-6 minutes, and can be ground quickly into 80-200 meshes (0.175-0.075mm) micron powder samples, which are directly used for testing.

There are several bowls such as normal steel bowl, high manganese steel bowl, wear-resistant alloyed steel bowl, chrome steel bowl and tungsten carbide bowl. Selection of bowl often depends on hardness of material.



3*100g Bowls Vibrating Ball Mill Well - Sealed Without Any Sample Loss



Working Principle



The material is placed in a sealed material bowl. There is a crushing hammer and a broken ring in the bowl. The motor drives the eccentric hammer to rotate at high speed. The material is made to be made of powder by vibration impact force and friction force.





Features



1. Output sample is uniform in size, fast in speed, reliable in work and high in grinding efficiency.

2. Output sample can be directly used without sieving, simple process and high efficiency.

3. Reasonable design with full sealing, there is no dust pollution which meets requirements of environment protection.

4. Smooth operation, low noise, it meets requirements of safety production.

5. It is compact in structure, convenient in maintenance and convenient in operation.

6. 1-3 samples can be obtained at one time.

7. Durable and no sample loss because of its good sealing bowls.

8. Electronic timer is optional for the sampling grinder





Technical Parameters





Technical Parameters of Lab Vibrating Sample Grinder
Model No. Inlet Size
(mm)
No. of Bowls
(pcs)
Feed Szie
(mm)
Granularity
of Output
(meshes)
Capacity
(g)
Power Supply Dimensions
(mm)
Net Weight
(kgs)
GJ-1 120 1 ≤13 80-200 100 380V/1.1KW 480*480*730 110
GJ-2 130 2 ≤13 80-200 200 380V/1.1KW 480*480*730 115
GJ-3 130 3 ≤13 80-200 300 380V1.5KW 530*530*920 130
