TENCAN Double Roll crusher with Stainless steel roller capacity 300kg per hour

China TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour supplier
TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour supplier TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour supplier TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour supplier TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour supplier TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour supplier

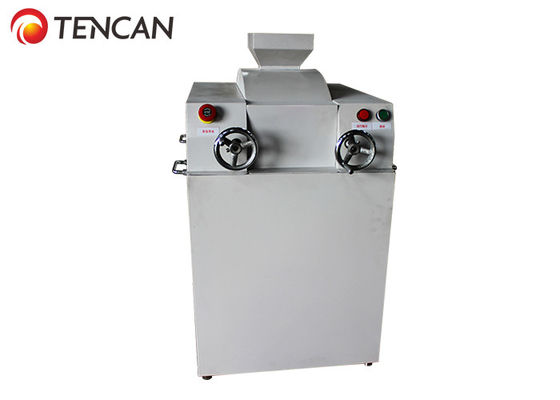

Large Image :  TENCAN Double Roll crusher with Stainless steel roller capacity 300kg per hour

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: SGP200x240

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 20-30 working days
Payment Terms: T/T, Western Union, L/C, , MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: TENCAN Double Roll Crusher Machine Roller Size: Φ200*240mm
Roller Material: 304 Stainless Steel Voltage: 3 Phase 380V-50Hz
Packing: Plywood Case Place Of Origin: Hunan, China
Capacity: 300kg/Hour Certificate: CE ISO

TENCAN Double Roll crusher with Stainless steel roller capacity 300kg per hour



Overview



Alumina ceramic double roll crusher is also named double-roll crusher,roll-type crusher.It is usually used to crush the raw materials such as coal , coal gangue, coke , limestone, sulfur ore, phosphate rock and etc, which are usually crushed in middle or fine size by the way of roll extrusion .Roll crusher is widely used in the fields of ore dressing, chemical, cement, refractories, grinding materials, building materials, etc., and it has more excellent performance than the general machinery in crushing of building materials, particularly in crushing materials like gangue stone and mung bean stone.



Working Principle


1. Roll crusher mainly consists of rollers, roller support bearings, pressed and regulation devices, drives, and etc.
2. Adjusting of output granularity: there is a wedge or gasket adjusting device between the two rollers. Wedge adjusting device:there is a adjusting bolt on the top of the Wedge device. When the wedge is pulled up by adjusting bolt, the wedge pushes the movable roller away from the fixed roller. That is to say, when the gap of the two rollers becomes wide, output granularity shall become larger accordingly. When the wedge falls down, the gap of the two rollers becomes small under pressure of the spring, output granularity becomes small. Gasket adjusting devices: it is used to adjust output granularity by means of increasing or decreasing numbers or thickness of the gasket. When adding gaskets, the gap of the two rollers becomes wide,and output granularity becomes large, when decreasing gasket, gap of the two rollers becomes small, and output shall be fine accordingly.
3. There are two motors which drive the rollers by V-belt. Both rollers rotate in opposite direction.
4. When materials are being crushed, the feed material are in put from the inlet and crushed by the rollers, and finally the crushed products are out put from the chassis below .
5. For security, transmission security cover should be installed according to the actual situation.



Applications



Double-roll Crusher Machine is mainly applied to crushing all kinds of materials, which are less than comprehensive strength limit of 2000kgs per square centimeter, such as ore, limestone, coal gangue, slag, carbon block in the industry of refractory material, chemical, coal, building material and so on.



Features


1. Long service life, no easy to damage
2. Compact structure,light weight and small size
3. Simple structure, small footprint, easy to operation and maintenance
4. Reasonable structure low running cost, smooth operation, energy-efficient, high crushing efficiency
5. Dust board installed inside,good sealing performance, avoid splashing of crushed fine material
6. The particle size is adjustable, after tune of the roll gap, the broken particle size can be reliably controlled accordingly, and all the granularity will be discharge in the ideal size.



Parameters


Parameter of Double-roll Crusher
Material of roller Stainless steel Corundum
(alumina ceramic)
Nylon
Roller size(mm) Φ200*240mm Φ200*240mm Φ200*240mm
Rotation speed(r/min) 52 52 52
Feed Size ≤10mm ≤10mm ≤10mm
Output Granualrity (μm) >150um >150um >150um
Power supply (V) 380 380 380
Capacity(kg/h) 300 300 300
Motor power(kw) 1.5 1.5 1.5
Dimensions(mm) 950*620*970 950*620*970 950*620*970
Net Weight 220KGS 240KGS 220KGS



TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour



TENCAN  Double Roll crusher with Stainless steel roller capacity 300kg per hour
