Low Noise Cement Crusher Machines For Primany Crush Rock Phosphate Sample

China Low Noise Cement Crusher Machines For Primany Crush Rock Phosphate Sample supplier
Low Noise Cement Crusher Machines For Primany Crush Rock Phosphate Sample supplier Low Noise Cement Crusher Machines For Primany Crush Rock Phosphate Sample supplier

Large Image :  Low Noise Cement Crusher Machines For Primany Crush Rock Phosphate Sample

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE, ISO9001
Model Number: PE60*100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 15-25 working days after getting full payment.
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description

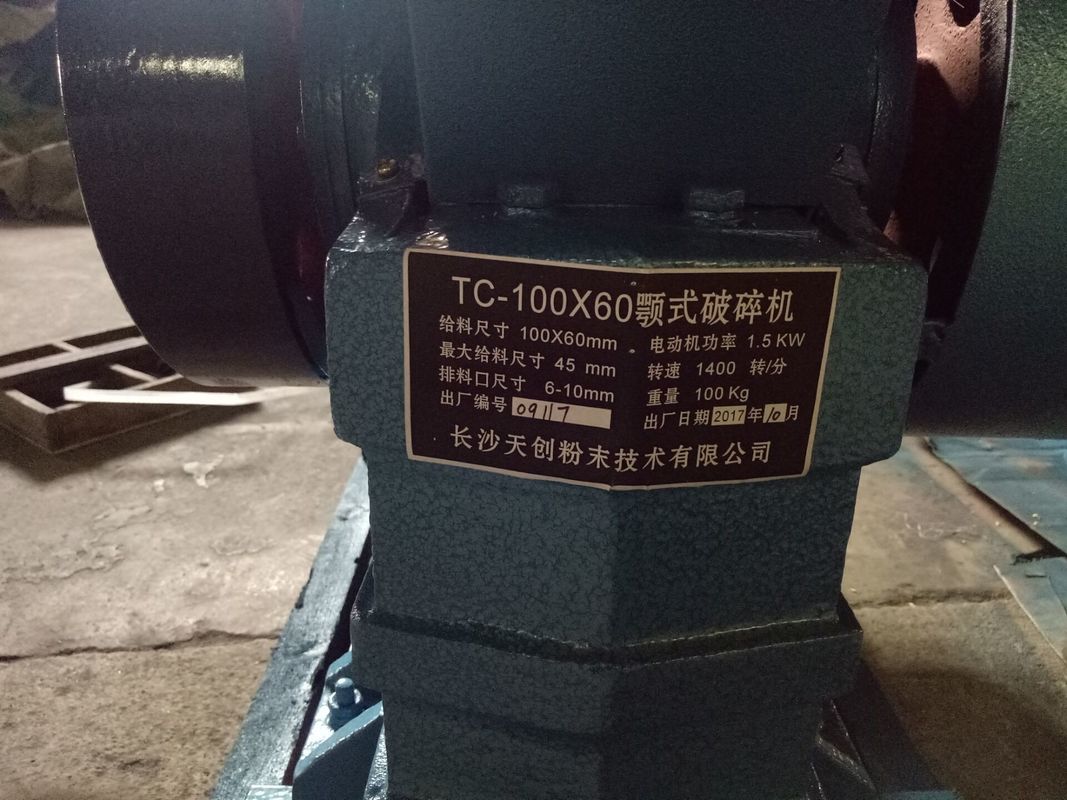

Product Name: Lab Jaw Crusher Model No.: PE60*100
Feeding Mouth: 60x100mm Voltage: Three Phase 380V-50Hz
Power: 1.5KW Feed Size: Less Than 50mm
Output Size: 6-10mm Capacity: 45-55kgs/hour

TENCAN Lab jaw crusher for primany crush rock phosphate sample from China manufacturer



Lab Jaw Crusher Operating Principle:

For this crusher, crushing way is squeeze-press type, motor drive belt and belt pulley, through eccentric shaft to make movable jaw move up and down. When the movable jaw rises, the angle between toggle plate and movable jaw plate will become large, so that moving the movable jaw plate closed to the fixed jaw plate, meanwhile the material is pressed, rubbed, grinded for many times. When the movable jaw plate down, the angle between toggle plate and the movable jaw plate will become small, with the effect of spring, the movable jaw plate will leave fixed jaw plate, at this time, the crushed material has be discharged out from the crushing chamber. With the motor continuous rotation, the movable jaw plate will make a periodic crushing and discharging to realize continuous crushing.


Overview of Lab Jaw Crusher
Lab jaw crusher is mainly used to crush a variety of ores and bulk materials with comprehensive strength of less than 320Mpa in middle granularity. PE series of lab jaw crusher has full specification, its feed size of materials ranges 125mm~1200mm, and it is the preferred primary crushing equipment. The equipment is mainly applied to crush materials in rough, medium and fine scale such as ore limestone, calcium carbide, carbide slag, shale, basalt , river gravel, blue stone, etc. The machine has a significant performance in cement plants, gravel plants, stones factory, thermal power plants desulfurization, calcium carbide plant, and it is widely used in mining metallurgy, chemical industry, building materials, water conservancy, transportation and other industries.



About US
Changsha Tianchuang Powder Technology Company Limited, which was established in 2006, is located in Changsha City, Capital of Hunan Province, South-Centre part of People’s Republic of China. The Company is one of largest professional manufacturers in China engaging in design, manufacture, and sales of all kinds of lab ball mills. With rich experiences of hard work in the industry, all kinds of lab ball mills we designed and produced have many advantages such as impact machine model, flexible and simple operation, grinding with dry and wet materials, which can meet requirements of dispersed grinding of all laboratories and further greatly benefit enlarging experimental results to production machine.


Low Noise Cement Crusher Machines For Primany Crush Rock Phosphate Sample


Applications of Lab Jaw Crusher

Jaw Crusher is mainly used for crushing large bulk mineral materials into small pieces so as to finely grind by ball mill. It is widely used to crush all kinds of ores and bulk material. The equipment mainly applied to crush materials in rough, medium and fine scale such as ore limestone, calcium carbides, carbide slag, shale, basalt, river gravel, blue stone etc.

Features of Lab Jaw Crusher
1. The crusher ratio can reach to about 13 in uniform size;
2. Adopt gasketed nesting population adjustment device,the adjusting range is big and reliable operation;
3. High efficiency,low energy consumption,compared with common small jaw crusher,it’s processing capacity 20%-35% higher than that of the same specification,and can reduce the energy consumption of 15%-20%;
4. Deep crushing chamber has no dead zone and can increase the feed ability and production capacity;
5. The use of small wear hyperboloid jaw plate service life can be prolonged by more than 3-4 times in the same process conditions,especially to the high abrasive material is more obvious;
6. The lubrication system is safe and reliable, convenient replacement parts, maintenance workload is small.

Technical Parameters of Lab Jaw Crusher


Parameters of Lab Jaw Crusher
Model No. Capacity
(Kgs/h)
Inlet Size
(mm)
Feed Size
(mm)
Output Size
(mm)
Spindle Speed
(rpm)
Power Supply Net Weight
(KGS)
XPC100*60 230-400 100*60 ≤50 6.0-10.0 650 380V/1.5KW 350
XPC100*100 200-1800 100*100 ≤80 3.0-25.0 600 380V/2.4KW 300
XPC125*100 200-1800 125*100 ≤80 5.0-25.0 500 380V/3.0KW 300
XPC100*150 200-1800 100*150 ≤90 6.0-38.0 500 380V/2.2KW 360
XPC150*125 400-3000 150*125 ≤100 6.0-38.0 500 380V/3.0KW 417
PEF150*250 700-1500 150*250 ≤120 6.0-40.0 350 380V/5.5KW 500
PEF60*100 45-550 60*100 ≤50 1.0-10.0 290 380V/1.5KW 137
PEF100*100 65-850 100*100 ≤80 1.0-25.0 600 380V/2.2KW 320
PEF100*125 300-2000 100*125 ≤100 2.0-35.0 375 380V/3.0KW 360
PEF150*125 300-3000 150*125 ≤120 4.0-45.0 375 380V/3.0KW 380
