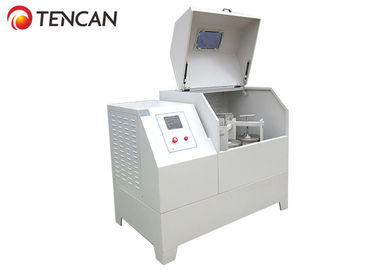

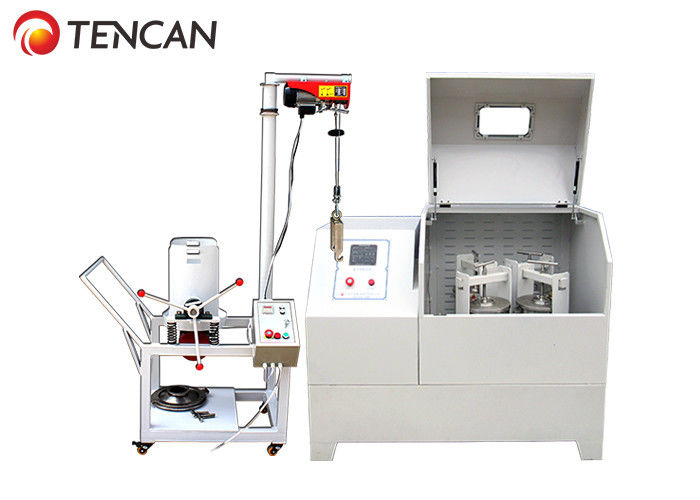

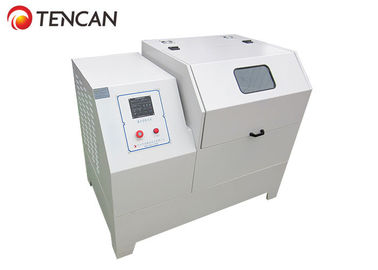

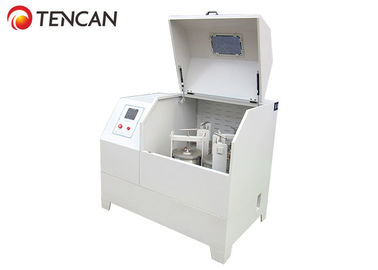

Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment

China Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment supplier
Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment supplier Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment supplier Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment supplier Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment supplier

Large Image :  Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: ISO CE
Model Number: XQM-40

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Production Type Planetary Ball Mill Model No.: XQM-40
Total Volume: 40L Max Capacity: 13.20L
Rotate Speed: 40-390 Rpm Speed Control: Frequency Control
Voltage: 380V-50Hz Power: 5.5KW

40L Production Type Planetary Ball Mill For Nano Powder Milling With Anti Deformation



Overview



Industrial planetary ball mill is a necessary machine used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle



Industrial planetary ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications



Laboratory square shaped planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Features



1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Technical Features



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc



Technical Parameters







Main Parameters of Production Planetary Mill Ball (SquareType)
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
RotationSpeed
(rpm)
XQM-1 0.75 220V-50Hz 750*470*564 35-325 70-670
XQM-2 0.75 220V-50Hz 750*470*564 35-335 70-670
XQM-4 0.75 220V-50Hz 750*470*564 35-335 70-670
XQM-6 0.75 220V-50Hz 750*470*564 35-335 70-670
XQM-8 1.5 220V-50Hz 900*600*640 35-290 70-580
XQM-10 1.5 220V-50Hz 900*600*640 35-290 70-580
XQM-12 1.5 220V-50Hz 900*600*640 35-290 70-580
XQM-20 4 380V-50Hz 1200*750*920 25-215 50-430
XQM-40 5.5 380V-50Hz 1400*850*1160 20-195 40-390





Accessories of Grinding Pots & Balls



Available grinding pots in full sizes:

Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.



Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment

References for Matchable Jar Sizes with Square Shape Planetary Ball Mill
Model No. Total Volume
(L)
Matchable Jar
Sizes
Matchable Jars
Quantity
Matchable Vacuum
Jar Sizes
XQM-2 2.0L 50-500ml 2pcs or 4pcs 50-250ml
XQM-4 4.0L 250-1000ml 2pcs or 4pcs 50-1000ml
XQM-6 6.0L 1-1.5L 2pcs or 4pcs 50-1000ml
XQM-8 8.0L 1-2L 2pcs or 4pcs 50-1500ml
XQM-10 10L 1-2.5L 2pcs or 4pcs 1-2L
XQM-12 12L 1-3L 2pcs or 4pcs 1-2L
XQM-20 20L 2-5L 2pcs or 4pcs 2-4L
XQM-40 40L 5-10L 2pcs or 4pcs 5L
XQM-60 60L 10-15L 2pcs or 4pcs 10L
XQM-100 100L 20-25L 2pcs or 4pcs 20L



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



Available grinding balls in full sizes

Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.

Industrial Production Type 40L Planetary Anti Deformation Powder Milling Equipment



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
