Product Details:

Place of Origin: China
Brand Name: HENGNUO
Certification: CE, ISO9001
Model Number: 5-21R (Refrigerated)

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 pcs per month
Get Best Price Contact Now

Detail Information

Maximum Rotation Speed: 21000rpm Time Setting Range: 1min~99min59s
Max Capacity: 6×500ml Or 4×750ml Dimensions: 730×630×860(mm)
Net Weight: 190kg Condition: New
Warranty: One Year After-sales Service Provided: Online Support
Total Noise: < 65dB(A) Max Relative Centrifugal Forcety: 47580*g
Total Power: 1500W Diameter Of Centrifugal Cavity: 500mm
Temperature Setting Range: -20℃~40℃
High Light:

universal centrifuge

,

high speed refrigerated centrifuge

Product Description

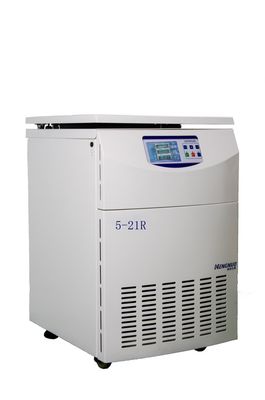

Floor Standing High Speed Refrigerated Centrifuge Machine 5-21R CE ISO9001



Floor-standing High Speed Refrigerated Centrifuge



5-21R

Floor-standing High Speed Refrigerated Centrifuge





5-21R (Refrigerated) Floor-standing High Speed Refrigerated Centrifuge



Product Introduction

1. Floor-standing high-speed refrigerated centrifuge is mainly used in the fields of blood stations, diagnostic laboratories, bio-pharmaceuticals, new materials, POCT R & D and production.

2. The instrument is equipped with Henguo patented super-light composite rotors, which have advantages of high strength, strong corrosion resistance, fast speed up and down.

3. It is driven by AC variable frequency brushless motor, which is almost maintenance-free.

4. Equipped with large screen LCD, it displays and stores 40 sets of programming parameters for operation.

5. 304 Stainless steel centrifugal cavity and double automatic lock cover ensure safety.

6. With set protections of over-speed, over-temperature, door cover self-locking, unbalance, it ensures safety of human and machine.

7. Equipped with Imported compressor unit, and environmentally friendly non-fluorinated refrigerant.

8. The bottom of centrifuge has fixed casters for easy movement.

9. Small and compact machine body, small total power, economic and environmentally friendly.



Technical Parameters

Model No. 5-21R (Refrigerated)
Max Speed 21000rpm Power Supply AC 220±22V 50Hz 35A
Max RCF 47580*g Total Power 1.5KW
Max Capacity 6×500ml或4×750ml Total Noise < 65dB(A)
Timing Range 1min~99min59sec Diameter of Centrifugal Cavity 500mm
Temperature Setting Range -20℃~40℃



Outline Dimensions

(L*W*H)

730×630×860(mm)
Temperature Accuracy ±1.0℃

Packing Dimensions

(L*W*H)

790×690×900(mm)
Minimum acceleration / deceleration time 168s/168s Net Weight 190kgs
Speed Accuracy ±20r/min Gross Weight 205kgs
























Rotor Parameters



微信图片_20200104102910













#1 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 24*1.5ml

Max speed: 21000rpm

Max RCF: 42900*g



16x10ml





#2 Angle Rotor



Single tube capacity: 10ml

Total capacity: 16*10ml

Max speed: 21000rpm

Max RCF: 47580*g

AR 8x50ml



#3 Angle Rotor

Single tube capacity: 50ml

Total capacity: 8*50ml

最高转速:15000rpm

Max speed: 15000rpm

Max RCF: 27720*g

01

#4 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max capacity: 20000rpm

Max RCF: 43000*g

AR 8x50ml



#5 Angle Rotor

Single tube capacity: 100ml

Total capacity: 8*100ml

Max speed: 12000rpm

Max RCF: 19830*g



ARH 4x250ml





#6 Angle Rotor

Single tube capacity: 250ml

Total capacity: 4*250ml

Max speed: 12000rpm

Max RCF: 19960*g

6x250ml



#7 Angle Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max speed: 10000rpm

Max RCF: 18500*g

6x500ml

#8 Angle Rotor

Single tube capacity: 500ml

Total capacity: 6*500ml

Max speed: 8000rpm

Max RCF: 11680*g
